FLAME QSLIDER QUAD CV SOURCE

FLAME QSLIDER QUAD CV SOURCE

FLAME QSLIDER QUAD CV SOURCE

Regular price $189.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

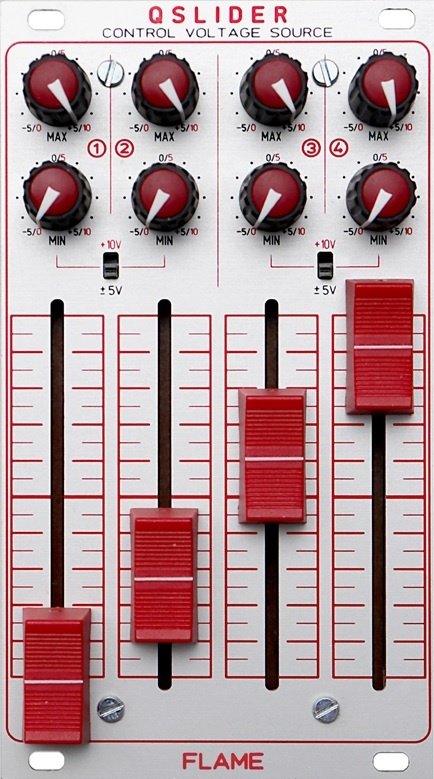

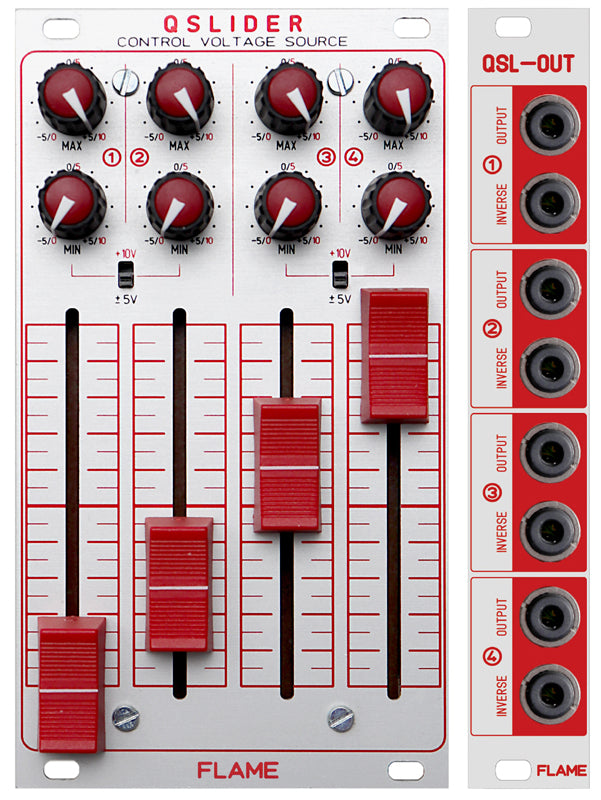

The QSlider is an analog CV source with four 60 mm faders.

The control range of the four sliders can be set with two min / max pots.
The Min pot determines the output voltage when the slider is in the zero position and the Max pot determines the output voltage when the slider is in the end position. The slider now regulates between these two voltages. This allows you to restrict the control range and still have the entire control path of the slider available.

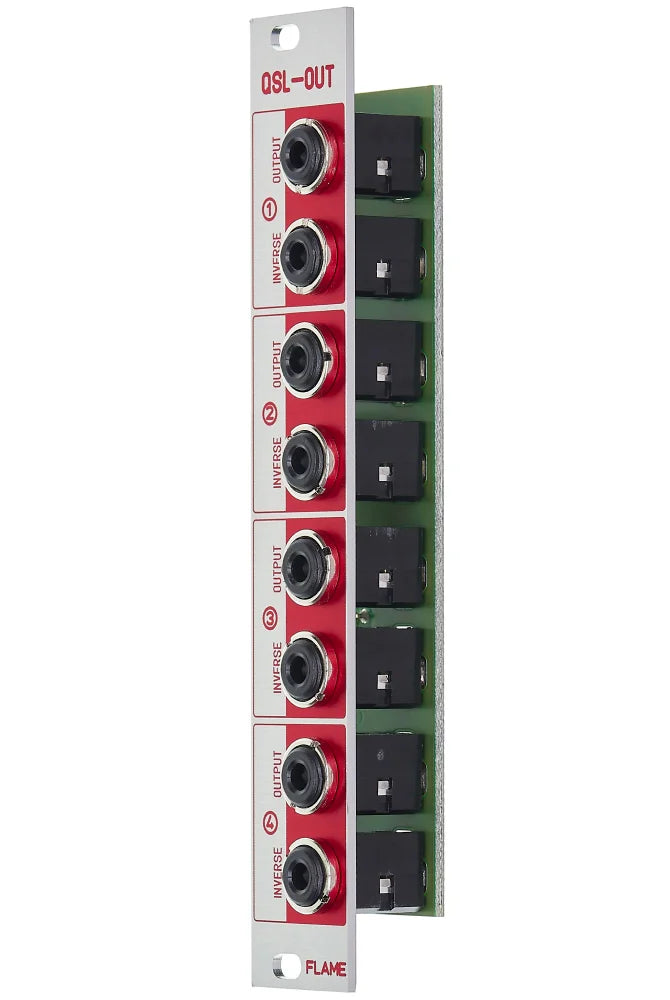

The reverse voltage is available at a second output socket (min and max are interchanged).
This means that the slider can also be used as a crossmix fader.

Two common channels can be operated unipolar or bipolar.
The voltage ranges are 0 .. + 10V or +/- 5V.

Dimensions
14 HP
28 mm deep
Current Draw
42 mA +12V
40 mA -12V
10 mA 5V
