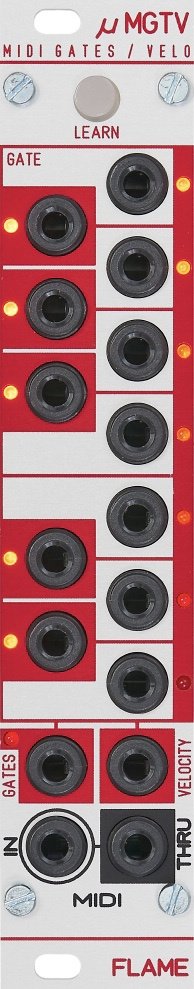

FLAME uMGTV MIDI GATE VELOCITY INTERFACE

FLAME uMGTV MIDI GATE VELOCITY INTERFACE

FLAME uMGTV MIDI GATE VELOCITY INTERFACE

Regular price $199.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

The "μMGTV" module is a compact MIDI interface, which outputs the gate and velocity of recei- ved MIDI note commands in CV voltages between 0 and + 5V. In addition, the module works via an octave as a MIDI clock divider, which is output as a GATE clock. The resolution of the data bytes of the velocity is 7bit. The outputs each have a passive lowpass filter, which smoothes the output voltages.

On 12 outputs either the gates (rhythms) or the velocity of notes can be output as CV or GATE voltage. There is also a GATE and a VELOCITY output for all notes (global outputs). The module is programmable via LEARN function with MIDI keyboard or via SYSEX commands.

The module has two MIDI sockets (mini jacks in TRS-B standard) INPUT and THRU. The data received at MIDI-IN is forwarded via MIDI-THRU. Additional MIDI modules can then be connected there.

Dimensions
5 HP
40 mm deep
Current Draw
60 mA +12V
30 mA -12V
0 mA 5V
