FLAME X-4 QUAD ENVELOPE VCA

FLAME X-4 QUAD ENVELOPE VCA

FLAME X-4 QUAD ENVELOPE VCA

Regular price $269.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

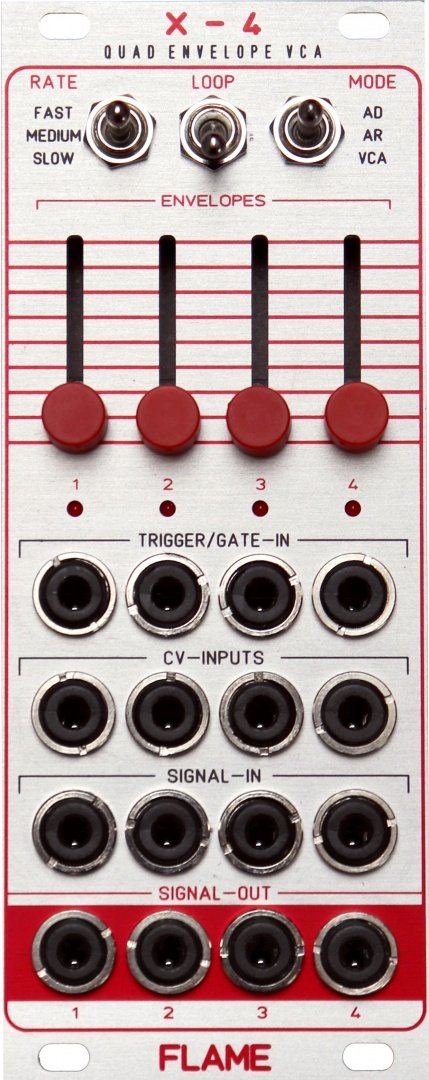

The FLAME "X-4" is a compact multifunctional 4x Envelope / VCA module, which combines in a very small space (10HP) 4 AR envelopes and 4 separate VCAs.
The module complements quad VCOs (eg the FLAME "4VOX") to control 4 VCAs per envelope generator in a small space.
Each channel can be used separately as an AR envelope generator with VCA, or even as a VCA.

There are 3 modes:
AR: four CV controllable separate Attack/Release envelopes on 4 VCA channels (per gate)
AD: four CV controllable separate Attack/Decay envelopes on 4 VCA channels (oneshot per trigger)
VCA: four CV controllable separate VCAs

There is available a three-level switch for three different envelope rates from extremely short to long.
The envelope shape is set with the sliders (also adjustable via CV inputs).
In addition, the envelope can be looped (gated AD envelope loop).

Dimensions
10 HP
40 mm deep
Current Draw
60 mA +12V
30 mA -12V
