FLIGHT OF HARMONY SOUND OF SHADOWS

FLIGHT OF HARMONY SOUND OF SHADOWS
Regular price$14900
$149.00
/
- Free shipping over $99 to most states
- Easy returns
- Secure payments
- In Stock

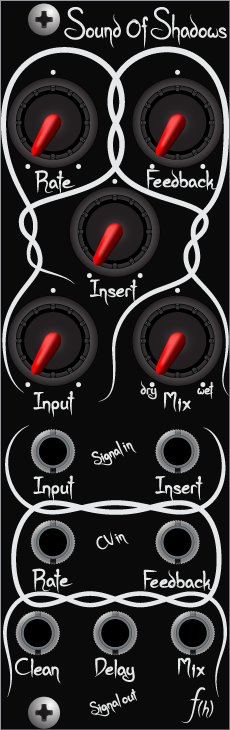

The Sound of Shadows (SoS) is a voltage-controlled (VC) digital delay module based around the PT2399 echo IC from Princeton Technology – which was, by the way, originally designed for Karaoke equipment.
As with all f(h) products, the SoS was engineered towards maximizing functionality while keeping cost as low as possible. If some aspects of the unit seem awkward, it is most likely due to this. The goal is to make unique, useful, enjoyable, and affordable instruments, not just hoover out your bank account.
And remember: every instrument has its quirks and unexpected aspects, so RTFM! All the way through! Specific quirks are mentioned in the description of the particular feature they apply to, so please read this through before emailing!
Module width: | 8hp | |||||
Supply Voltage | ±12VDC | |||||
Supply Current (max draw @ ±12V) | +12V: 51mA | -12V: -21mA | ||||
Supply Current (max draw @ ±12V & +5V) | +12V: 19mA | -12V: -15mA | -5V: -21mA | |||
Max. Input Voltage (@ ±12V) | 10Vp-p | |||||
Max. Output Voltage | 6Vp-p | |||||
Input & Ouput (I/O) coupling | Direct* | |||||
Output Impedance | 1kΩ | |||||
Control Voltage (CV) inputs | ±Vsupply | |||||
CV input coupling | Direct | |||||
CV input impedance | 100kΩ | |||||
Mounting Depth | 35mm | |||||
Delay Length | Min: ~31.3ms | Max: ~342ms |
