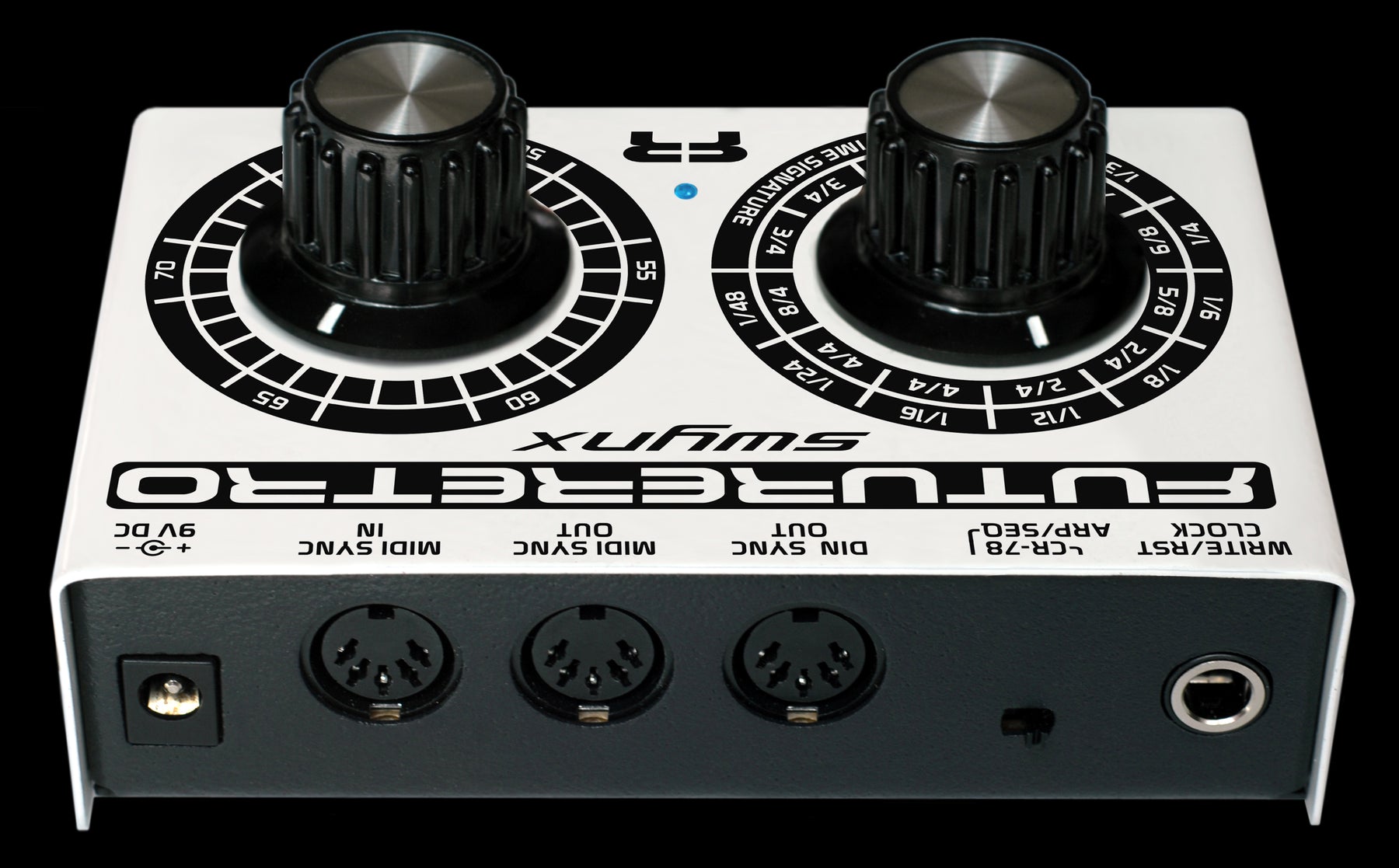

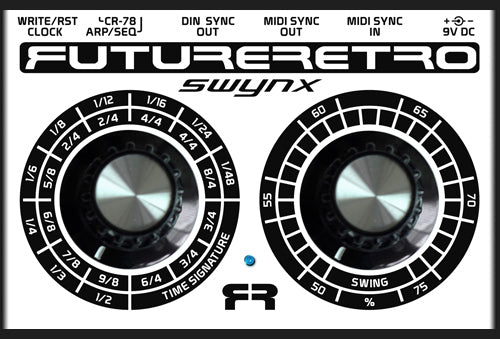

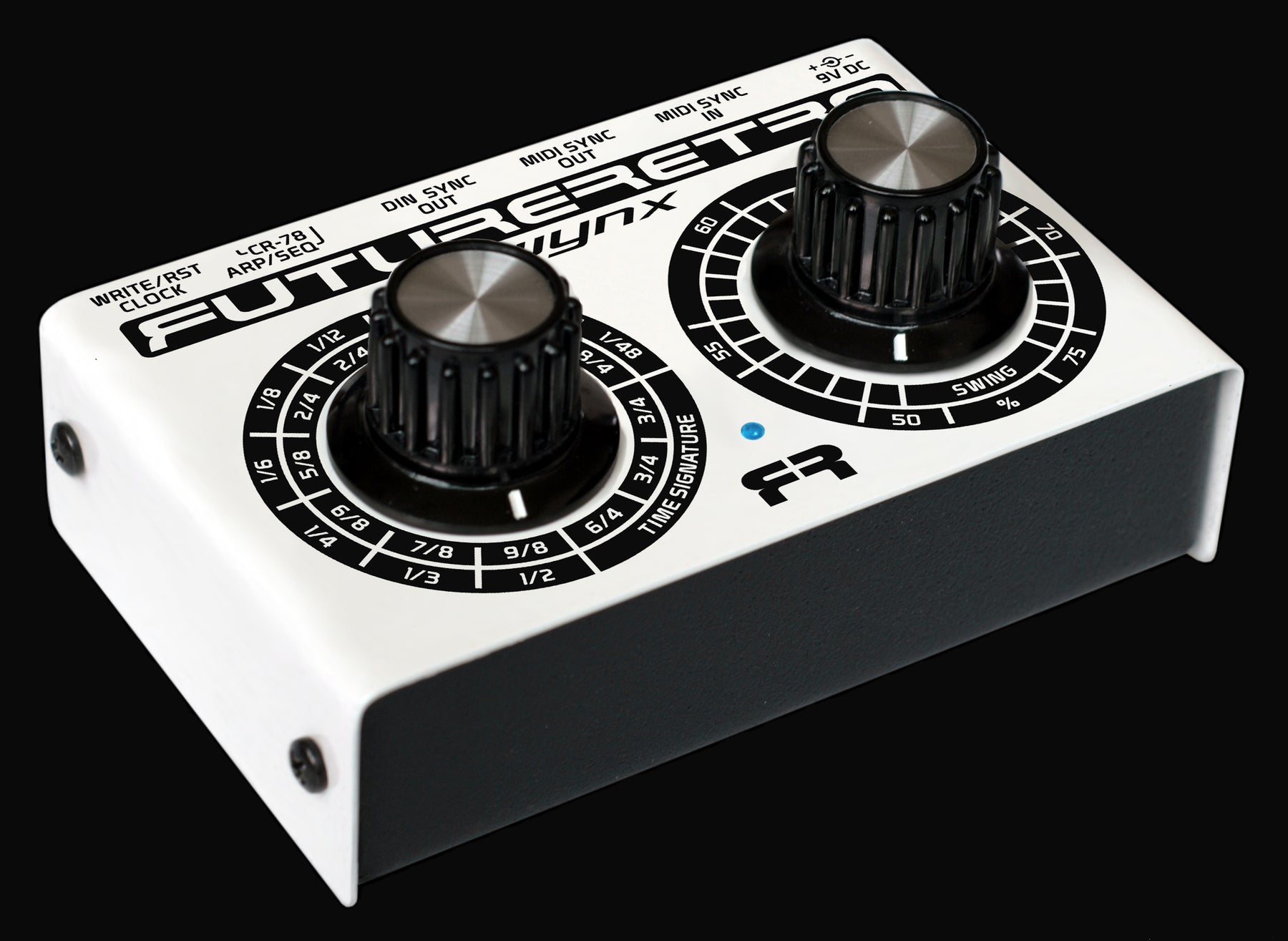

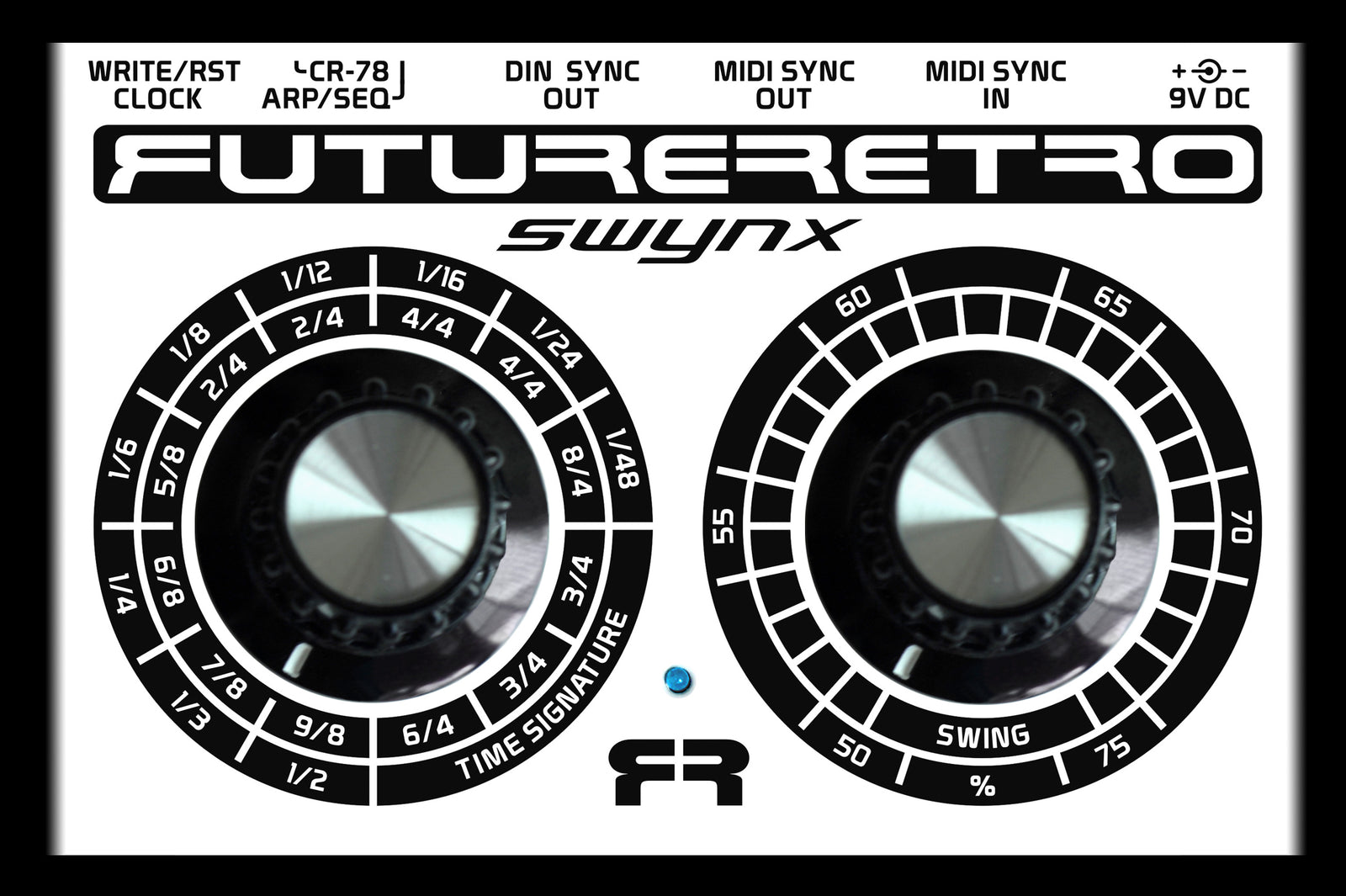

The Swynx is a sync box that converts incoming MIDI messages to MIDI clock, DIN sync, CR-78 clock, and Analog clocks. In addition, the Swynx provides the ability to swing the timing of all these clock outputs and select different time signatures in real-time with the front panel controls, and can also act as a CR-78 pattern programmer.

After you try it in your setup, you will realize just what you've been missing.

For instance, many DIN sync devices do not provide a built-in swing function. And many MIDI sequencers and drum machines suffer from poor implementation of swing, preventing changes to be made live, or only providing swing for 4/4 patterns.

Quite a few MIDI sequencers don't offer any swing function, including our own 777 and Mobius products. Now you can apply swing to any MIDI sequencer, and select new time signatures as well

Need to sync your analog sequencer or arpeggiator with MIDI gear? No problem! Not only can you do so, but now you can swing the timing of those devices as well. You can even use the analog clock output to Gate the envelopes in a synthesizer. The clock duty cycle is 50% of a note duration.

If you are a Roland CR-78 owner, you may have realized finding a WS-1 or TS-1 to program the CR-78 is next to impossible. The Swynx can replicate the programming capabilities of these units, plus provide sync to MIDI, and realtime swing adjustment. The ability to add swing to the CR-78's preset patterns alone will breathe new life into this old friend.

The Swing value is accurate to 0.5% providing much more control resolution than is typically found in sequencers and drum machines.

The Swynx provides 12 different time signatures to choose from. Some time signatures are duplicate, but provide different shuffle patterns for that time signature. Time signatures include 9/8, 7/8, 6/8, 5/8, 2/4, 4/4, 8/4, 3/4, and 6/4.

A universal power supply is provided with each unit, allowing the Swynx to be used anywhere in the world.

The Swynx is all about making the gear you have sound better!


Specifications

CONSTRUCTION: Steel Chassis

DIMENSIONS: (L) 5.0" x (W) 3.0" x (H) 2.25"

UNIT WEIGHT: 0.7 lbs

UNIVERSAL POWER SUPPLY: 100~240V AC input, 9V DC output

POWER IN: 9V DC (center positive)

INPUTS: MIDI IN

OUTPUTS: MIDI clock, DIN Sync clock, Analog clock/reset, CR-78 clock/write

TIME SIGNATURES: 9/8, 7/8, 6/8, 5/8, 2/4, 4/4, 8/4, 3/4, 6/4

SWING: 50% - 75% (0.5% resolution)

CR-78 STEP WRITE DIVISIONS: 1/2, 1/3, 1/4, 1/6, 1/8, 1/12, 1/16, 1/24, 1/48

ANALOG CLOCK: 50% duty cycle for each clock step

QUALITY: Each product is hand made right here in the USA

WARRANTY
This product comes with a 1 year limited warranty covering any failure of components being electric or mechanical. For your warranty to be effective, please register your unit within 30 days of purchase.
