Colorful Modulation

Synesthesia is not just another modulation pedal. By marrying a powerful dual-engine architecture with rich and deep algorithms we provide players with immersive and 'colorful' modulation effects experience, hence the name: Synesthesia. Synesthesia for everyone. With carefully designed user interface and comprehensive feature sets, Synesthesia is suitable for professional musicians, recording musicians, performers, as well as bedroom guitarists.

38 On Board Algorithms

Up to 38 built in algorithms covering amplitudes, filters, swilrs, phase, sequencer, and miscellaneous type effects. More may be accessed via the SymmLab editor.

Flexible DSP Routings

Cascade, series routing, signal flows left to right, DSP Y into DSP X. Mixture, parallel routing, DSP Y and DSP X run at the same time, signals blended together. Split, input divided, DSP Y to left output, DSP X to right output, stereo separation or dual amp routing.

Comprehensive External Control

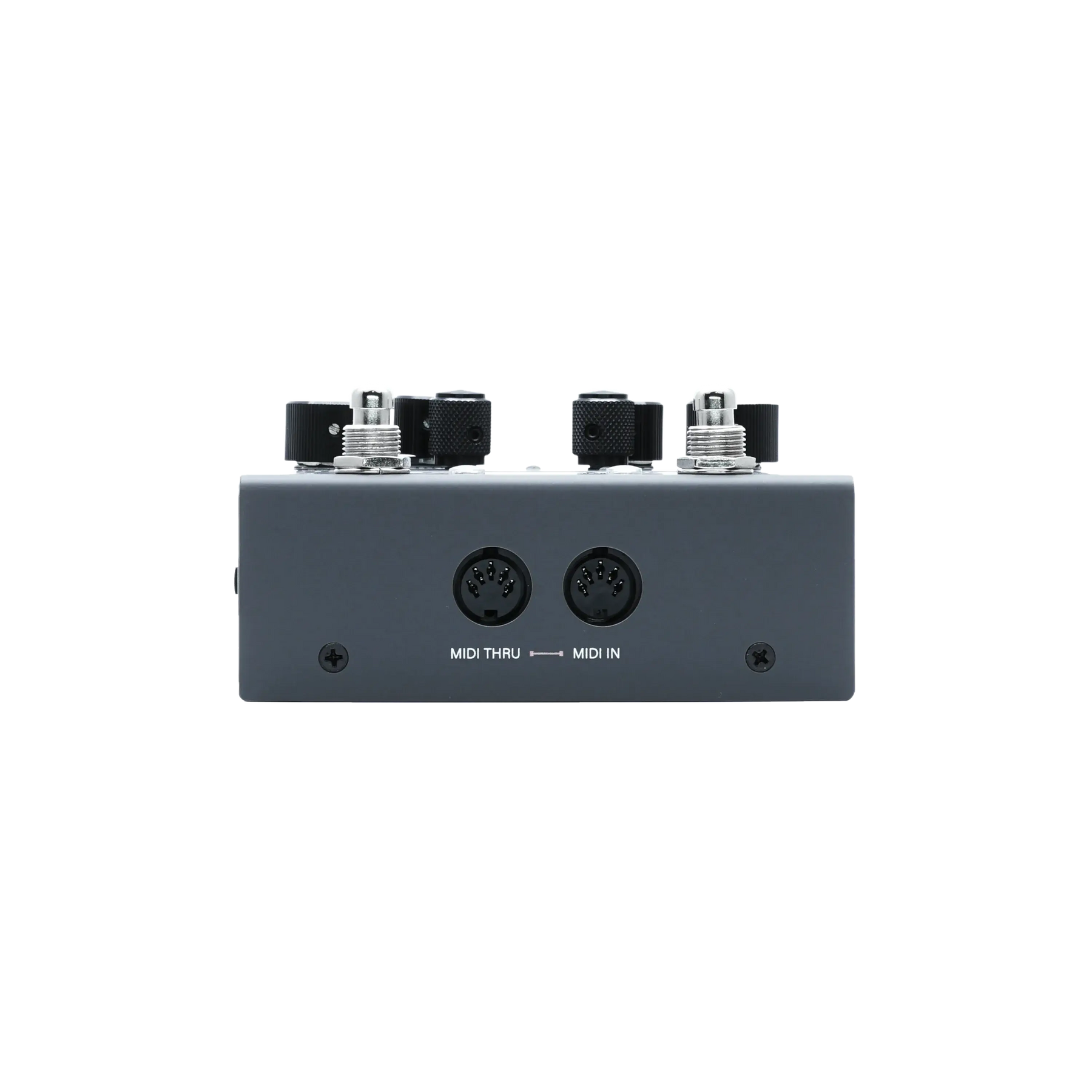

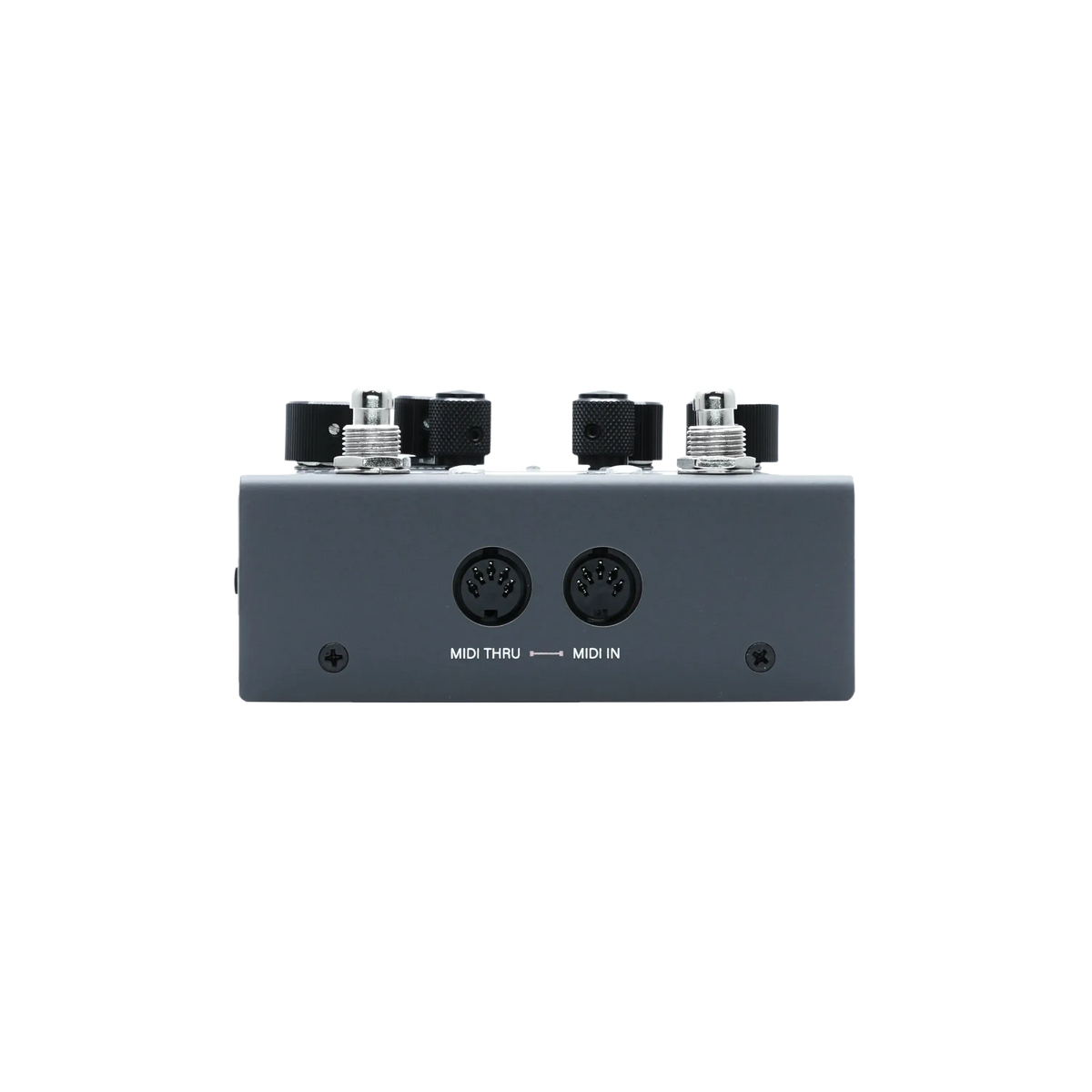

Expression Pedal - with adjustable heel and toe values. Control Voltage (CV) - takes 0 - 2.5 V control voltages. Aux Switches - accepts up to 3 external switches for versatile control (tap-tempo, bank up/down, etc). MIDI In / MIDI Thru - nearly all features and functionalities of the pedal are opened to MIDI access, including MIDI clock.

Tap Tempo

You can tap in your tempo using an external tap pedal, via Midi, or on the pedal itself. Space saving 12 cm x 12 cm (4.7" x 3.5"), impressively small for a pedal that can replace 3 or more individual stompboxes.

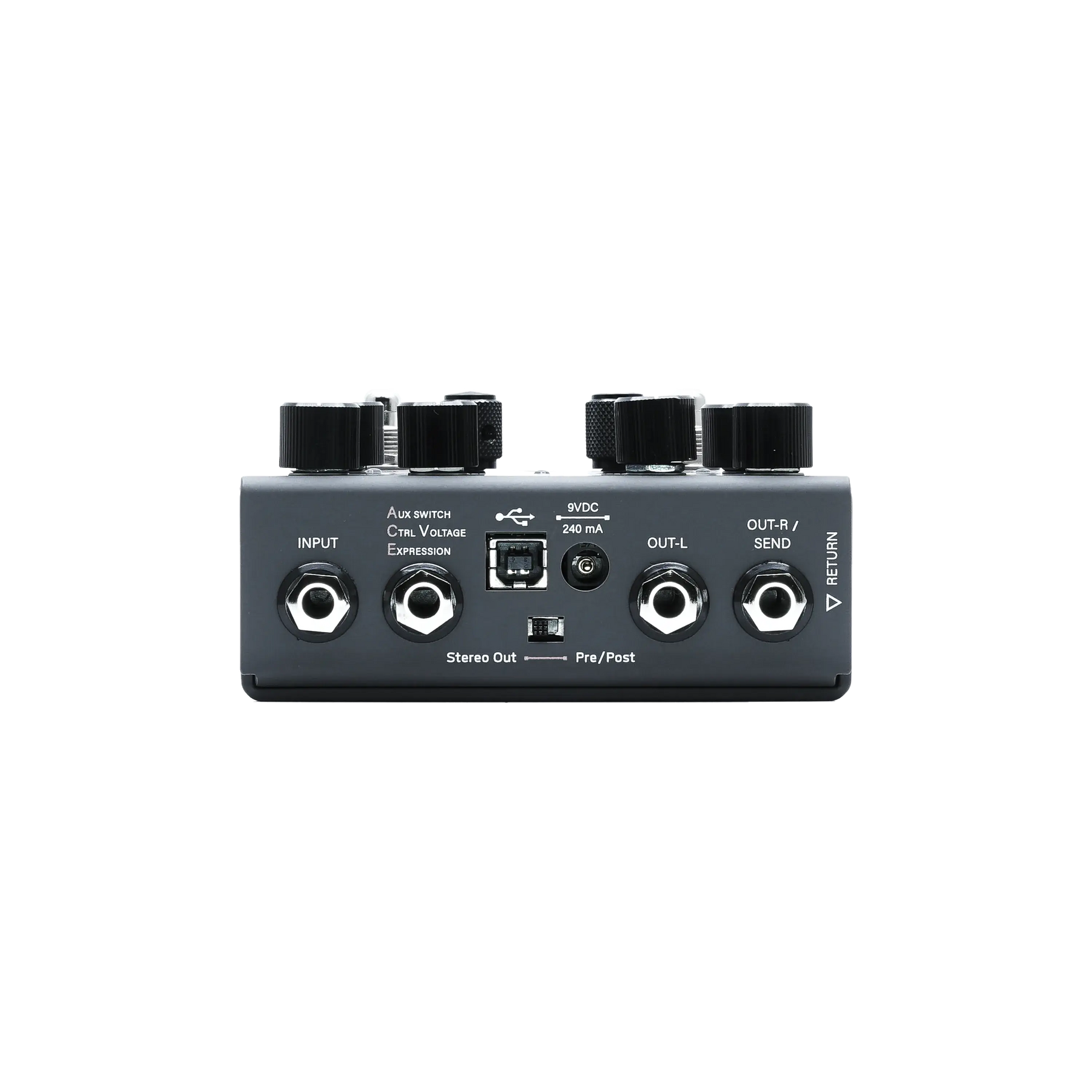

Pre/Post Setup

Switch effects order (pre or post) effortlessly via the switchable Pre/Post configuration (specified on per-preset basis).

Specifications:

• Input impedances : 1 MOhm.
• Output impedances : 500 Ohm.
• DAC / ADC resolution : 24 bits.
• Current draw : ~240 mA.
• Input / Output jacks : 1/4 inch TS.
• USB Connector : Type B
• Weight : 800 grams (1.6 lbs).
• Dimension : 12 (L) x 12 (W) x 5.5 (H) cm
• Power requirement : 9VDC / 240mA, negative-center plug (Power supply is not included).
