stereo hybrid multi-effects desktop unit

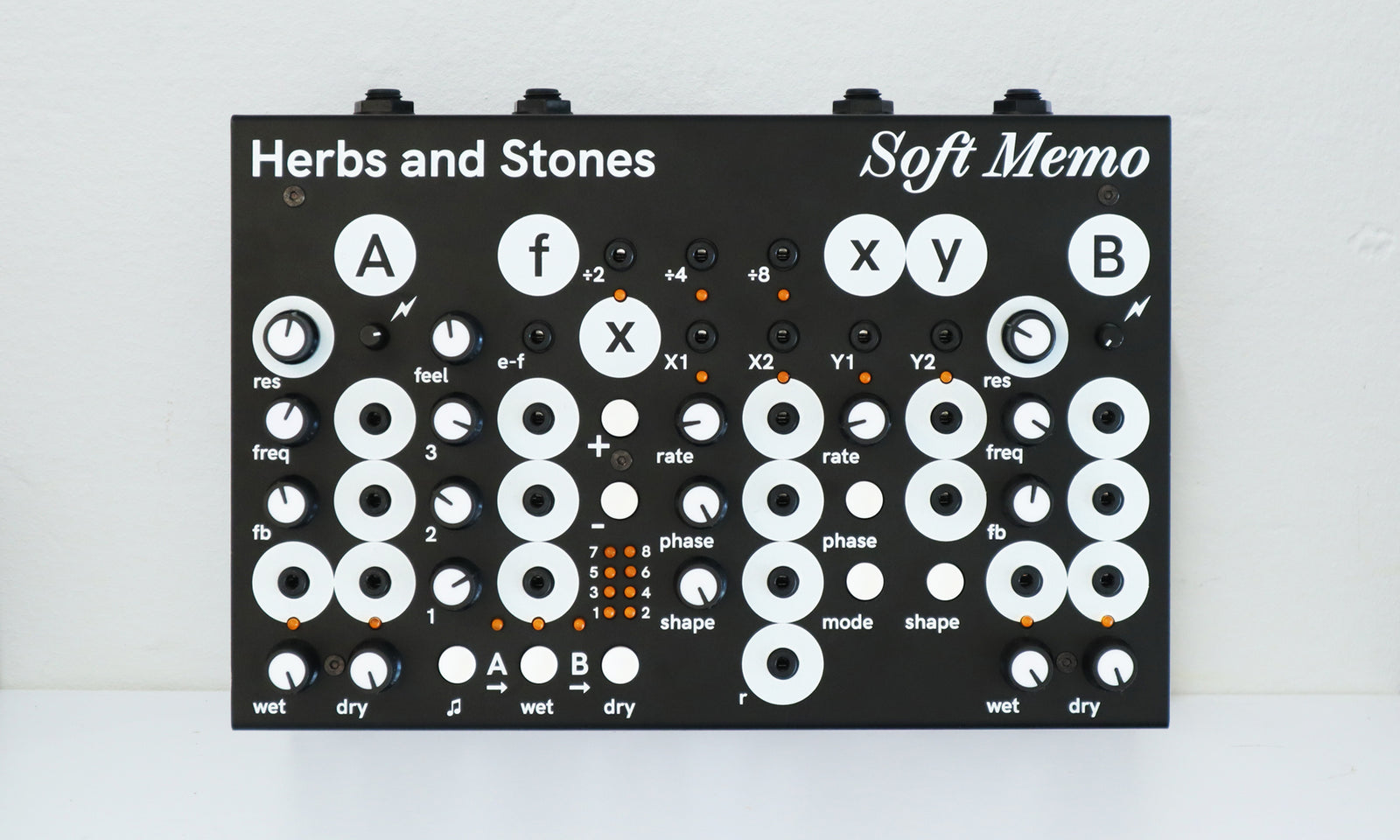

Soft Memo is a hybrid stereo multi effects desktop unit with eight digital CV controlled FX programs, two analogue feedback paths and two complex voltage-controlled LFOs.

It has patch points to integrate external synthesisers and sequencers and it is designed to creatively reshape your sounds with a menu-free hands-on approach.

You can create patches by connecting inputs and outputs with eurorack-standard 1/8" jacks.

All its inputs are protected from potentially dangerous voltages.

It generates (and reacts to) control voltages in the 0-5V range: when a CV signal is patched into an input, its knob becomes an attenuator for the incoming signal.

The patch points are visually divided between inputs and outputs: the inputs are placed in the middle of a white circle while the outputs are not.

Soft Memo is powered by a 9V center-negative (500 mA) power supply, the standard PSU used with most guitar pedals.

Features:

Eight FX programs

A total of 25 patch points

Two high gain preamps

Two feedback paths made of analog VCAs and resonant analog VCFs

Two complex voltage controlled LFOs with clock division and phase offset control

An envelope follower

A→B buttons to set how the two channels controls interact with each other

• Format: minijack
• I/O format: 1/4" mono jacks
• Size: 254x165x60 cm
• Enclosure: powder coated metal
• Weight: 1 kg
• Power: BOSS-style 9V 500mA, center negative (not included)
