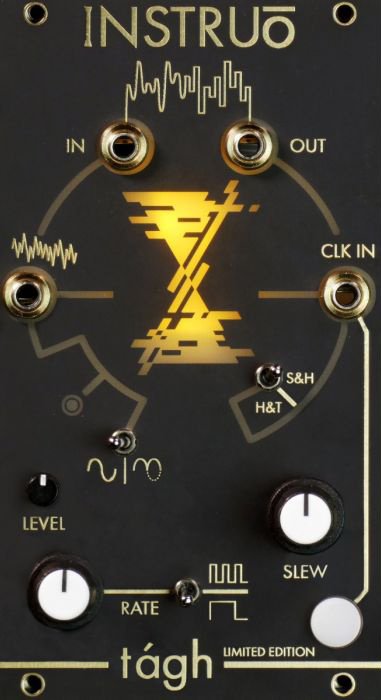

INSTRUO TAGH RANDOM VOLTAGE GENERATOR LIMITED EDITION

INSTRUO TAGH RANDOM VOLTAGE GENERATOR LIMITED EDITION

INSTRUO TAGH RANDOM VOLTAGE GENERATOR LIMITED EDITION

Regular price $269.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

Sample and Hold circuits have been a central building block to modular systems since the very beginning and for good reason. tágh incorporates all the essentials you’d expect from a sample and hold module with some added touches.

An internal analogue noise source is normalised to the sample input, this can be internally clocked, scaled, slewed and rectified for a stand alone source of tamed random modulation. Patch any external signal into the sample input to derive a stepped or slewed cv source, clock externally for rhythmic variation or boost it to audio rate for sample rate reduction effects.

Hold & Track mode offers a slight twist on the classic track and hold circuits, a simple inversion which in combination with the manual gate button allows for performative audio glitching.

tágh |tʰɤɣ| verb (sampling) to choose, select or sample: to choose a small number of things by making careful decisions

Dimensions
14 HP
27 mm deep
Current Draw
50 mA +12V
70 mA -12V
0 mA 5V
