INTELLIJEL 7U 104 HP STEALTH BLACK CASE WITH LID

INTELLIJEL 7U 104 HP STEALTH BLACK CASE WITH LID
INTELLIJEL 7U 104 HP STEALTH BLACK CASE WITH LID

INTELLIJEL 7U 104 HP STEALTH BLACK CASE WITH LID

Regular price $699.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

Features

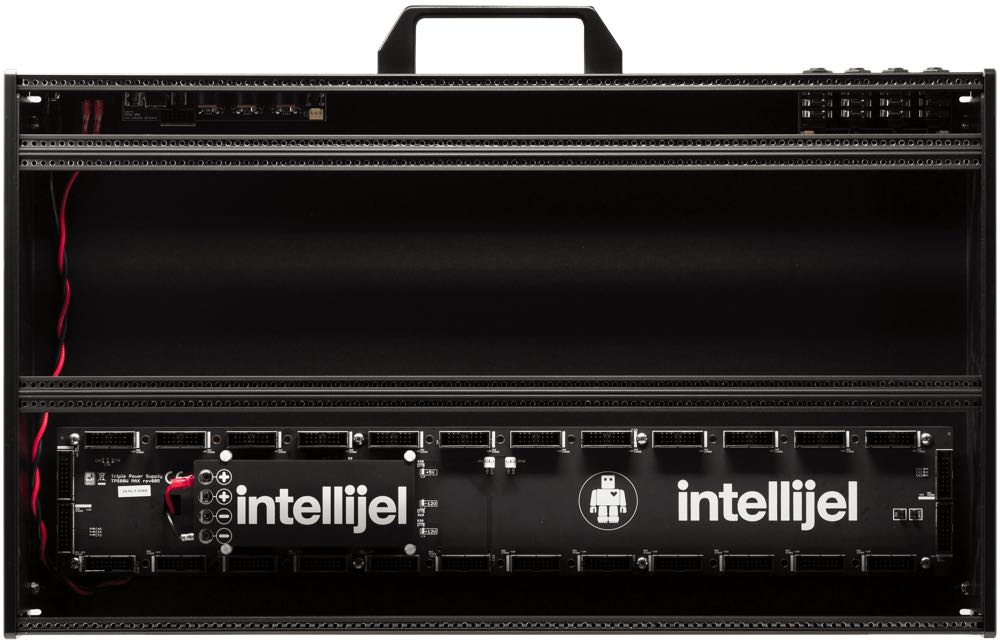

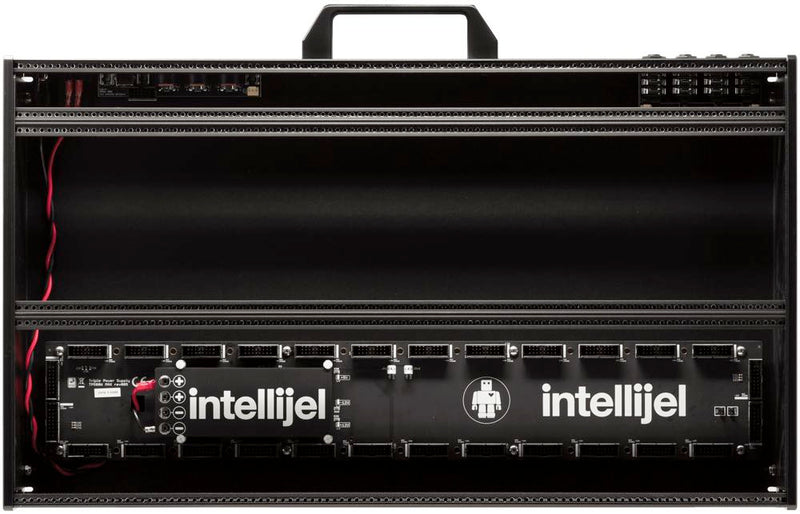

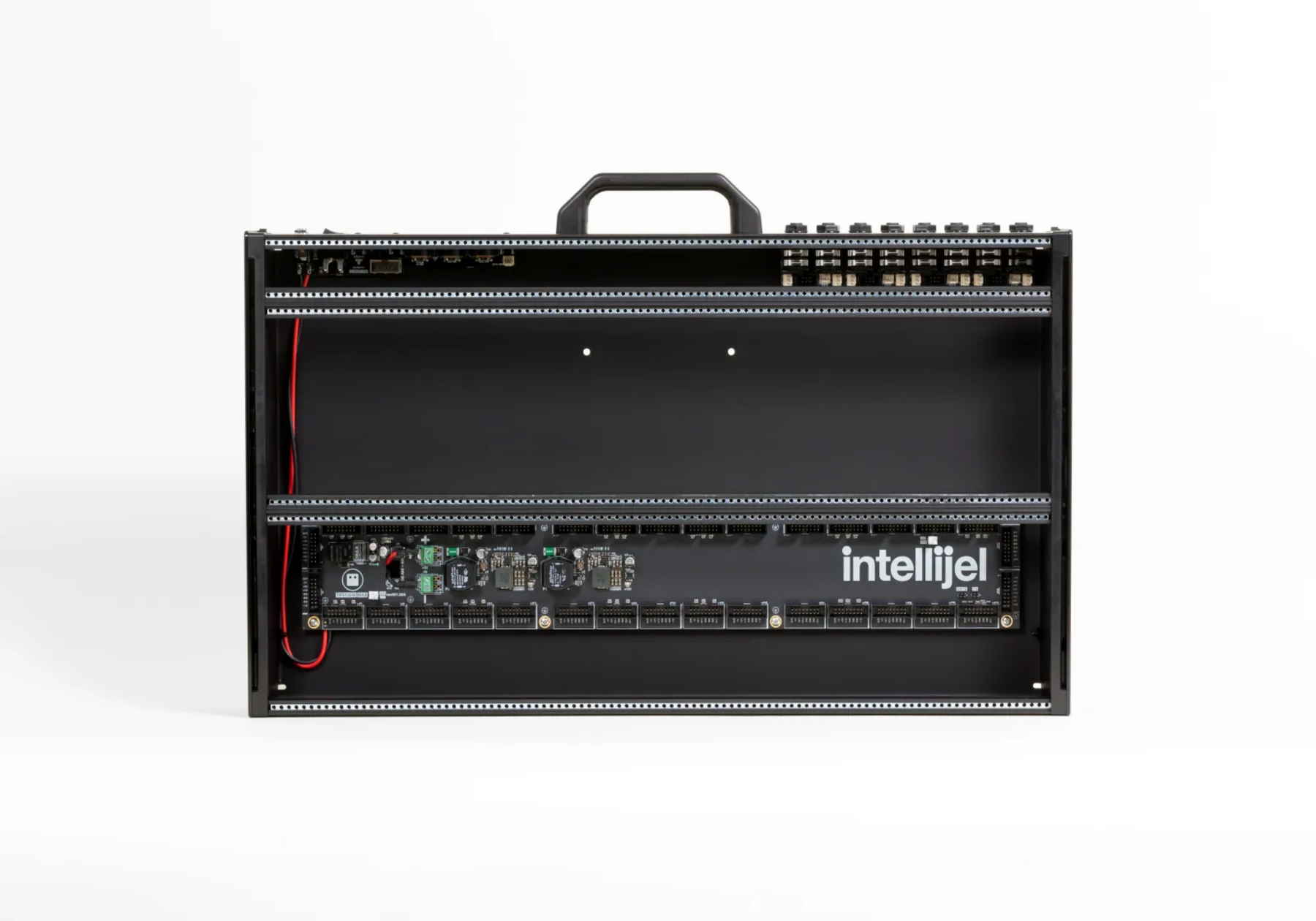

  • Two 84 hp or 104 hp rows (6U) of Eurorack module space.
  • One 84 hp or 104 hp row for Intellijel 1U modules.
  • Threaded M3 strips for mounting modules.
  • 84HP cases come with the high specĀ TPS80WĀ power supply capable of powering up to 20 modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA.
  • 104HP cases feature the larger TPS80W MAX which can accommodate 28 modules.
  • New in 2019: All 7U case power supplies now ship with shrouded headers.
  • Includes: Lid, Meanwell AC/DC adapter, and 3FT North American IEC power cable.

Construction

  • Solid plastic carrying handle.

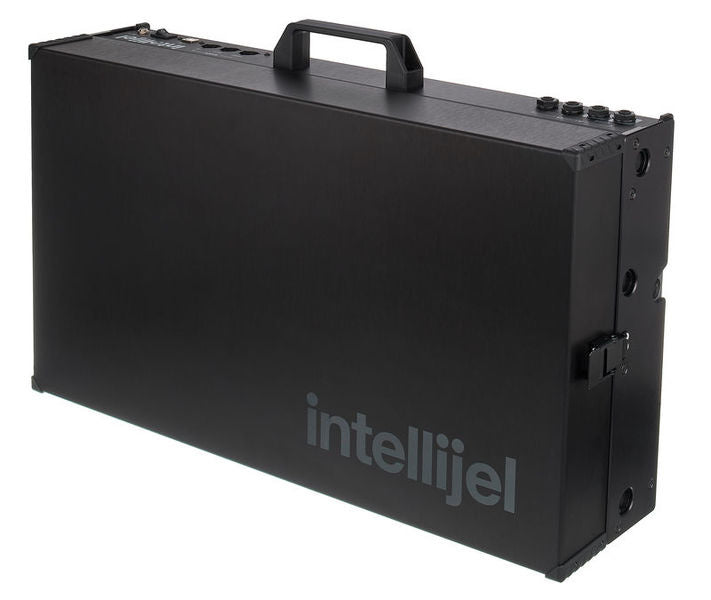

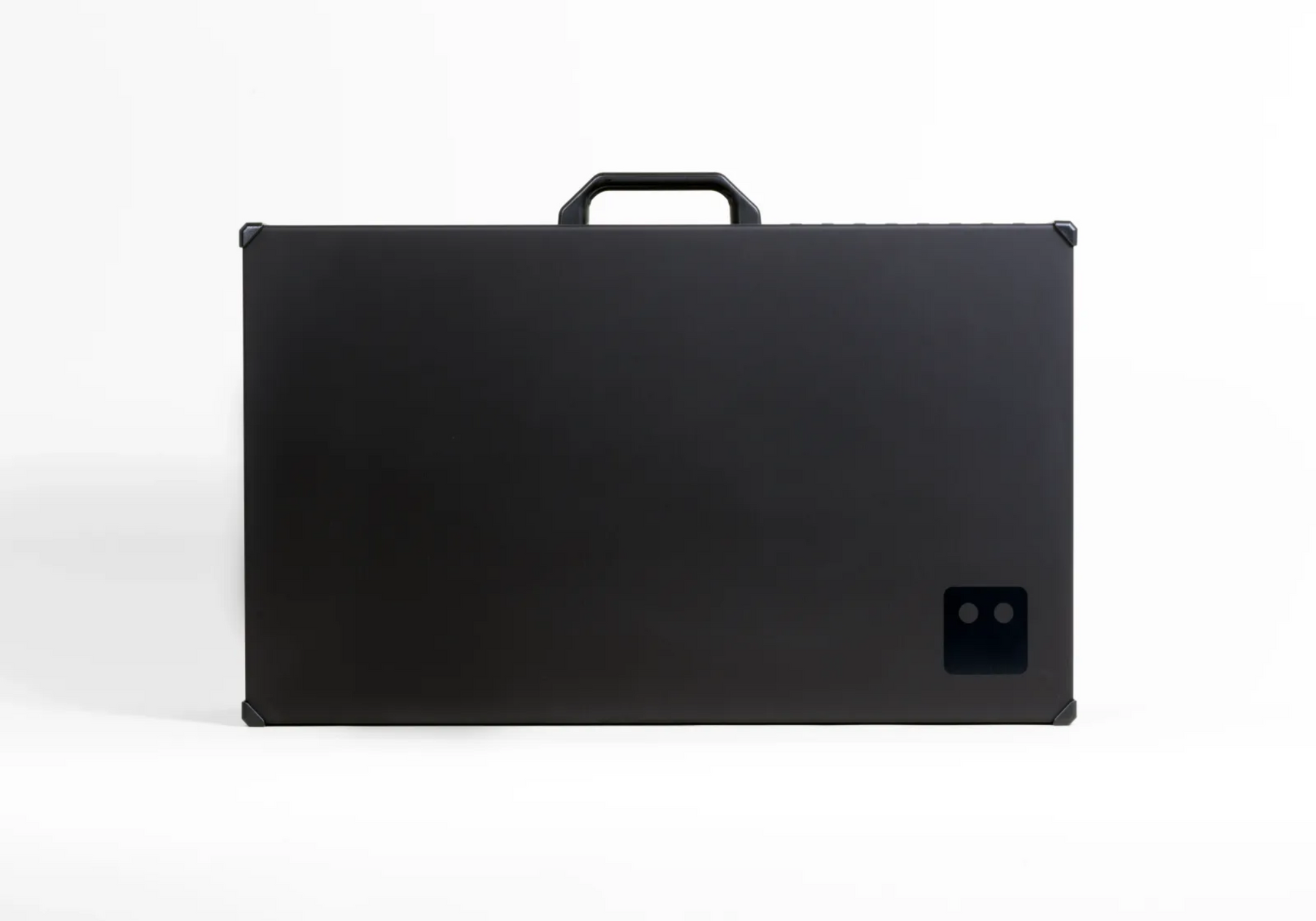

  • Anodized aluminum lid with latches, deep enough to close the case with cables patched in.

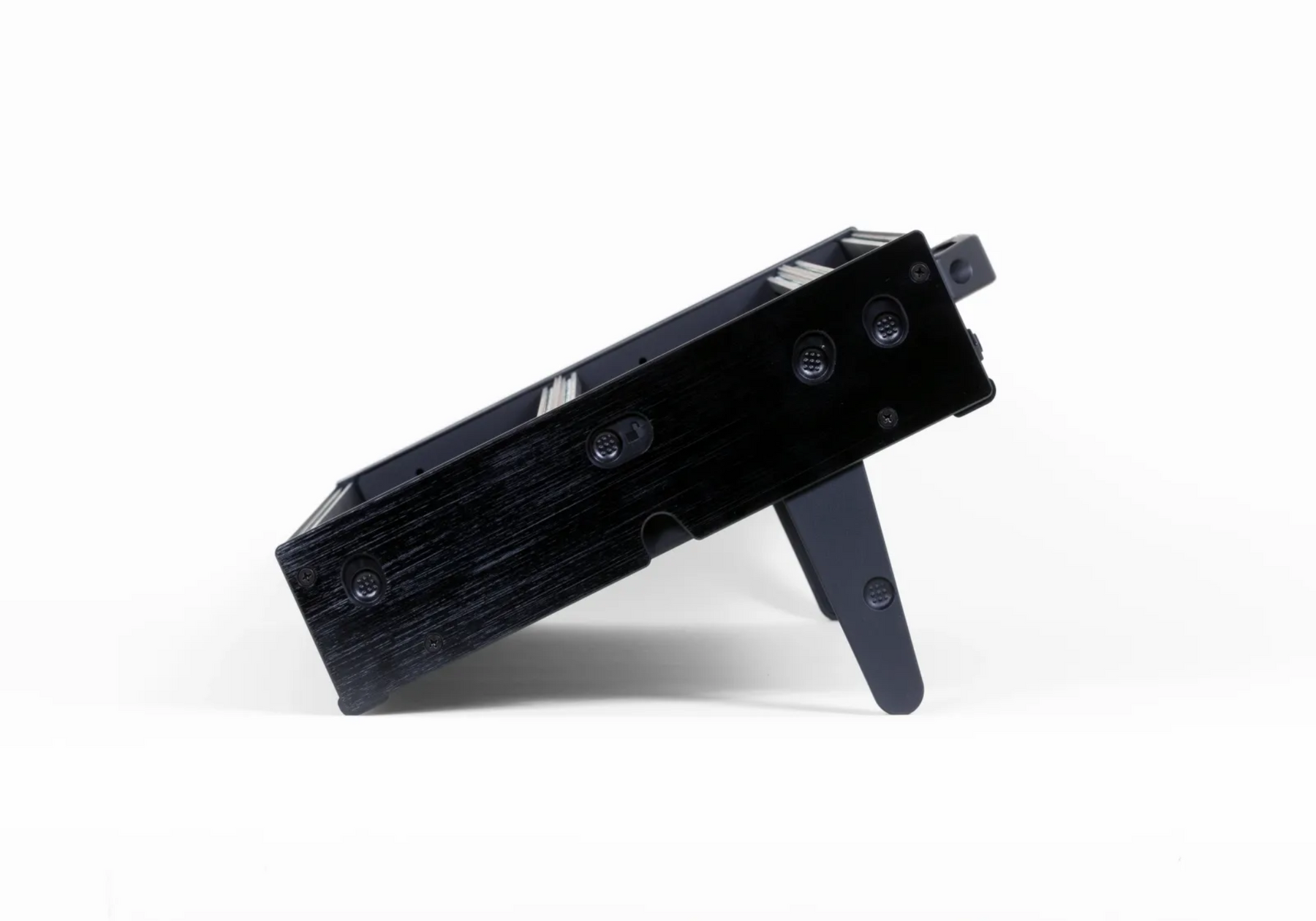

  • Retractable feet that canĀ support the case at two different angles. Or lay the case flat on a table.
  • Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together using a pair ofĀ 7U Joiner Plates.

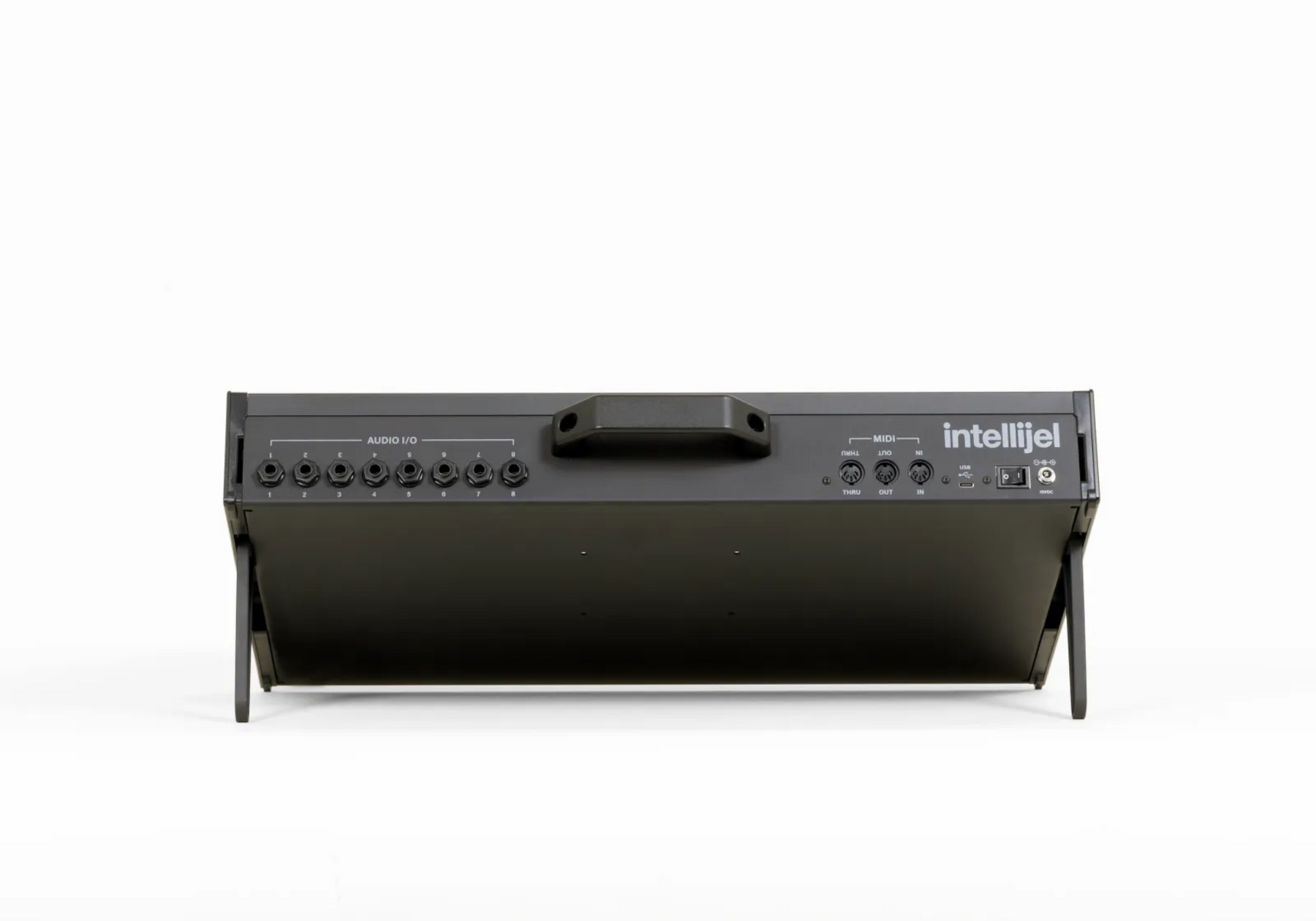

Rear panel

  • Four 1/4ā€³ audio jacks that can be connected to theĀ Audio I/O 1U. Two ins and two outs.
  • MIDI In, Out, and Thru jacks. The In jack can be connected to theĀ ĀµMIDI 1UĀ and will pass to the Thru. The Out is for future expansion.
  • USB port that connects to theĀ ĀµMIDI 1UĀ and other future modules.
  • Rocker switch and barrel plug for power entry.

Includes

  • Lid
  • Meanwell AC/DC adapter
  • 3FT North American IEC power cable
