Features
- Two 84 hp or 104 hp rows (6U) of Eurorack module space.
- One 84 hp or 104 hp row for Intellijel 1U modules.
- Threaded M3 strips for mounting modules.
- 84HP cases come with the high spec TPS80W power supply capable of powering up to 20 modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA.
- 104HP cases feature the larger TPS80W MAX which can accommodate 28 modules.
- New in 2019: All 7U case power supplies now ship with shrouded headers.
- Includes: Lid, Meanwell AC/DC adapter, and 3FT North American IEC power cable.
Construction

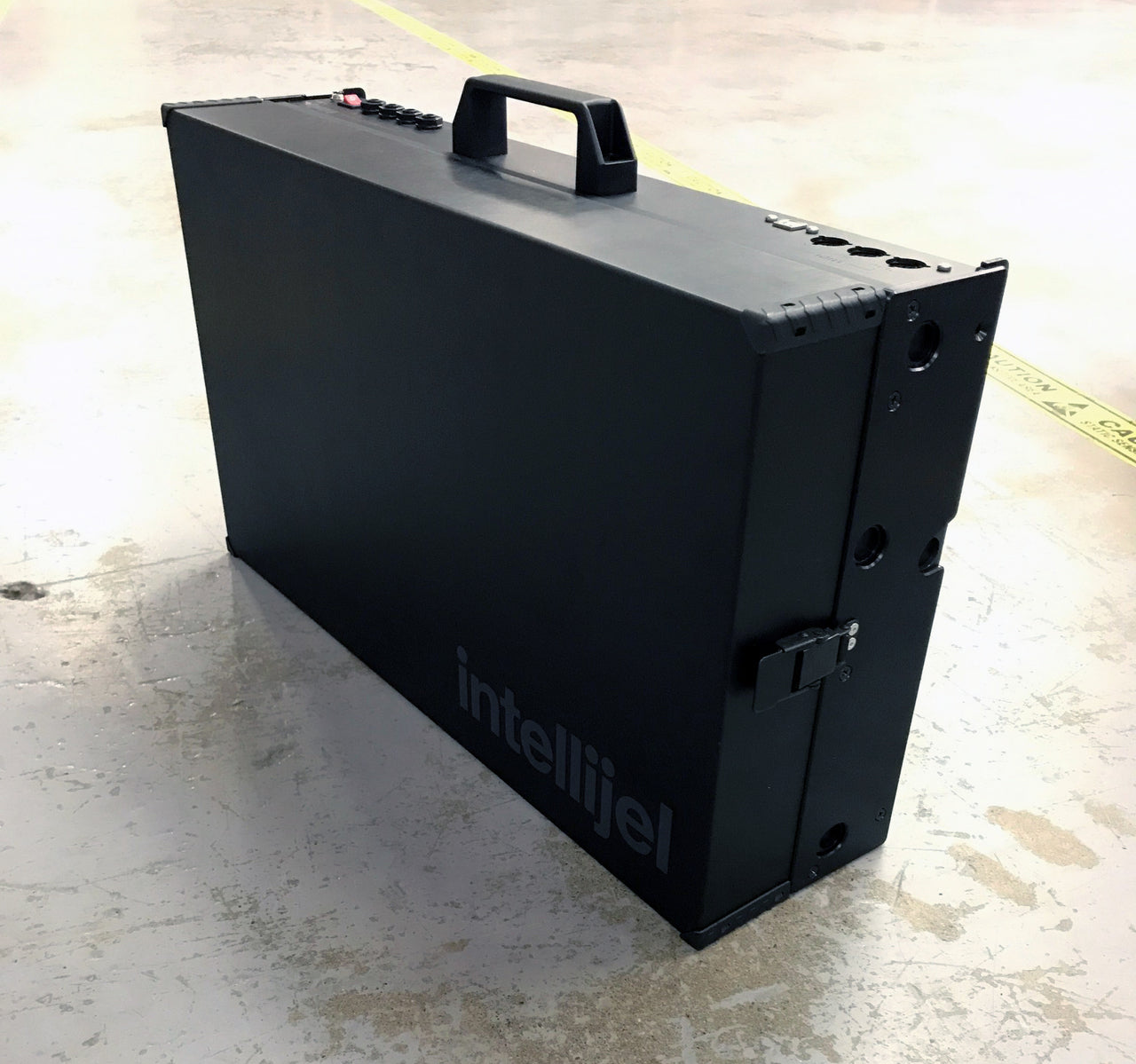

- Solid plastic carrying handle.

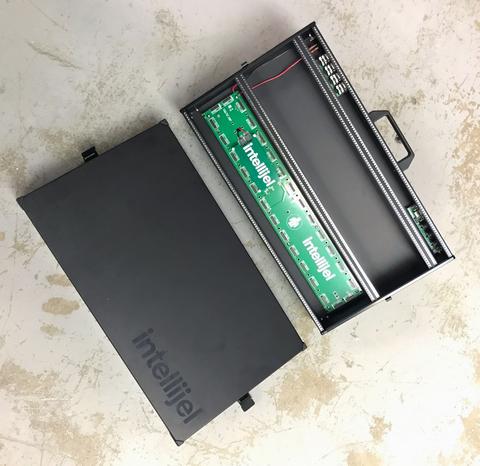

- Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
- Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
- Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together using a pair of 7U Joiner Plates.
Rear panel
- Four 1/4″ audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
- MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
- USB port that connects to the µMIDI 1U and other future modules.
- Rocker switch and barrel plug for power entry.
Includes
- Lid
- Meanwell AC/DC adapter
- 3FT North American IEC power cable
