Reimagining a Reimagined Classic

The Atlantix is the highly-anticipated successor to the Intellijel Atlantis which was originally inspired by the classic Roland SH-101—one of our all-time favorite synthesizers. Despite the SH-101’s seemingly limited architecture, it produces various creative and musically useful sounds that have inspired generations of artists and countless hits. The Atlantix is just as immediate for dialing in beautifully rich bass and lead sounds but a thoughtful design, numerous additional features, and flexible patching options open up a massive amount of new sonic territory to explore.

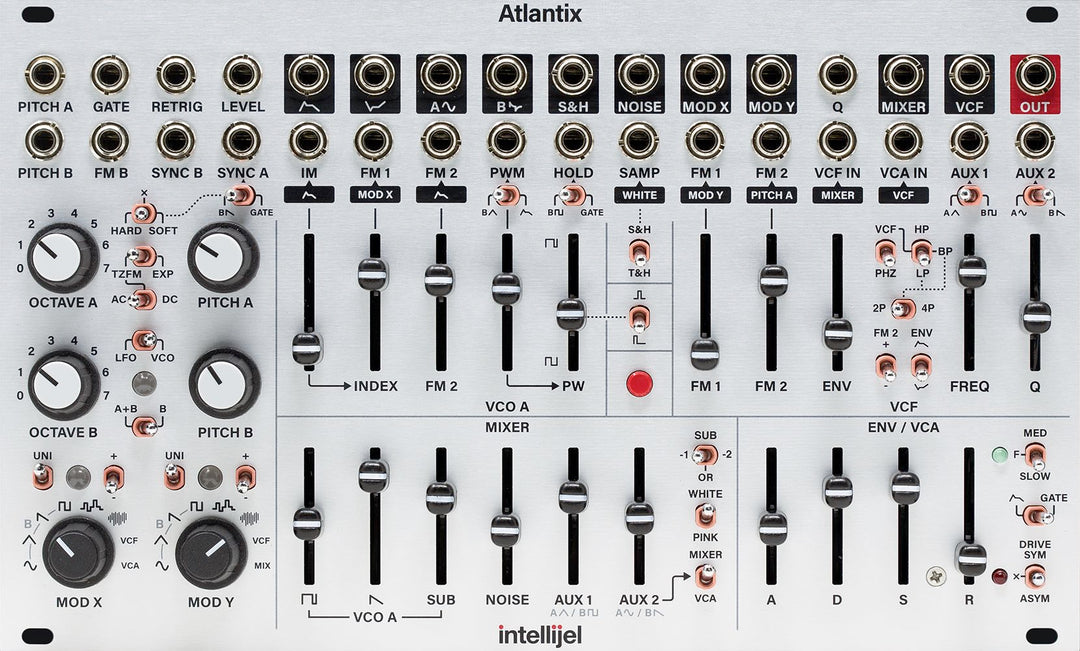

The Atlantix is an analog, complete subtractive synthesizer voice condensed into a single 42HP module. Its carefully conceived architecture and layout facilitate a lot of flexibility and hands-on control. It gives you all the building blocks needed to start making sounds in Eurorack: VCOs, VCF, VCA, S&H, Noise, and an Envelope but in a way that allows plenty of experimentation.


  • Cascaded 4-Pole multimode filter with LP2, BP2, LP4, BP4, HP4, and Phaser modes

  • Two Triangle Core VCOs

  • VCO A: Thru-Zero FM with INDEX and PWM, Hard/Soft Sync, Octave switch

  • VCO B: Linear FM, LFO/VCO switch, Hard Sync, Octave switch

  • Suboscillator with three modes spanning two octaves

  • White and Pink noise sources

  • Six-channel mixer comprising VCO A Waveforms, Sub, Noise, and two Aux inputs

  • Aux inputs have switched normals with sources from VCO A and B for quick paraphonic play without patching

  • Mixer Aux 2 can be routed post-VCF / pre-VCA

  • Mod X and Y buses allow for quick modulation routing of VCO B, S&H, Noise, and feedback sources without patching

  • Both Mod X and Y buses have polarity and level-shifting switches

  • Analog ADSR envelope with three time ranges, manual gate, and level (velocity) input

  • Patchable Sample and Hold modulation source

  • Asymmetric and symmetric output distortion modes

  • 20 Sliders, 4 Knobs, 27 toggles, and 2 Rotary switches for expressive hands-on control

  • 32 Jacks for creative and complex patching options

  • 16 additional jacks with the optional Atlx expander

Oscillators — Advanced TZFM and Flexible Mixer

The Atlantix uses two triangle core voltage controlled oscillators (VCO) which respond in a musically pleasing way to frequency modulation. The Atlantix primary VCO (VCO A) is capable of thru-zero frequency modulation and has a dedicated amplifier for controlling FM depth (FM INDEX). The modulation oscillator (VCO B) can be used as either an LFO or VCO. The highly flexible architecture allows you to route VCO B as a modulation source or stack it as a secondary VCO all by the flick of a switch or slider. VCO B also has a bonus "spike" waveform output which is a square wave with fixed HPF, similar to the Buchla Easel. Both oscillators track very precisely over eight or more octaves.

In the mixer section, you can adjust the balance of the primary oscillator's waveforms, sub-oscillator noise, and two auxiliary inputs that are normalled to additional VCO A waveforms or VCO B waveforms. The auxiliary inputs also allow you to patch other external signals into the mix.

The second Auxiliary input has a switch that allows you to route the source between the mixer sum or directly into the VCA (post-VCF). The latter is a way to pass an unfiltered fundamental signal to the final VCA stage and then blend it with filtered audio from the VCF. This draws inspiration from the architecture of the CS-80 where a sine wave is mixed with the filtered audio to make glassy tones with some added harmonics.

Multimode Filter — From drips to growls

The filter section (VCF) is a discrete cascaded 4-pole multimode filter with lowpass, bandpass, highpass, and phaser (multi-notch) modes. The filter can self-oscillate which produces a very clean sine wave that also tracks 1V/Oct. The VCF has three frequency modulation sources, two of which are normalled to the external pitch and envelope and have switches for polarity.

Add Atlx for dedicated outputs from each mode.

Envelope — A classic ADSR

The envelope section is an analog ADSR with three timing ranges: slow, medium, and fast. It can be gated externally or via a manual gate button located in the center of the panel. The ADSR is routed through a VCA which can be used for level or velocity control.

Modulation — Random, Feedback, and built-in routing

Two eight-position rotary switches allow you to select from eight different modulation sources and route them to outputs MOD X and MOD Y. Each switch also has a polarity control and an option to level shift between unipolar and bipolar operation. MOD X is normalled to VCO A frequency modulation and MOD Y is normalled to VCF frequency modulation. The dedicated outputs allow for further creative modulation patching.

Four of the Input jacks have normal switches to change your patch without the need for cables.

The analog Sample and Hold (S&H) circuit is normalled to the white noise source and can be clocked by VCO B, an external clock source, or via the gate input for per-note synced randomization.

Drive and Distortion

The output VCA can be routed into two different distortion circuits which allow for harmonically richer and more aggressive tones while also boosting signal levels.

Atlx — Optional Expander w/ Ring Mod

The Atlx expander provides 16 additional jacks to the Atlantix, including dedicated waveform outputs for A and B oscillators, filter outputs, and a ring modulator. Atlx adds many new possibilities for self-patching, advanced routing, and connections to other modules.

Size: 42hp
Depth: 25mm
Power:  140mA @ +12V 138mA @ -12V
