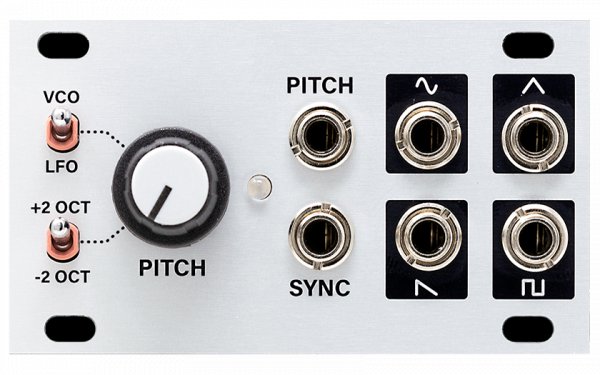

INTELLIJEL VCO 1U

INTELLIJEL VCO 1U

INTELLIJEL VCO 1U

Regular price $149.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

Mighty oscillations, mini size.
An analog, triangle core oscillator and LFO with pure waveforms and precise tracking in a compact package. Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!

Features
* Four simultaneous pure waveforms: Sine, Triangle, Square and Sawtooth
* Pitch input for 1V/Oct tracking and FM
* SYNC input for Hard Sync. This input has a comparator so that you can use a variety of waveforms as triggers.
* Switch to select VCO (audio) or LFO range of operation
* Three position Octave switch to jump pitch up or down by two octaves
* PITCH knob has three octave range in VCO mode (extended to seven with the octave switch) and seven octave range in LFO mode (extended to 11 with the octave switch).
* Bicolor led indicates the state of the triangle core rate

Dimensions
14 HP
38 mm deep

Module is a 1U tile.

Current Draw
19 mA +12V
16 mA -12V
