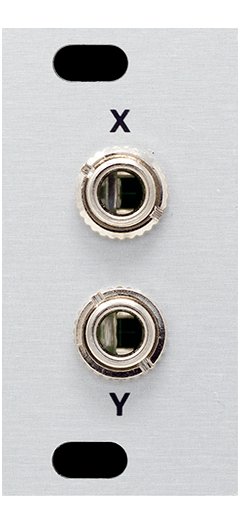

INTELLIJEL XY IO 1U

Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Pedal I/O and the Palette and 2nd Generation Audio Jacks Board in a 7U case.

It uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/O’s, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each.

A third 3-pin Link connector on the back panel allows the X and Y jacks to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.

• Module does not draw current
• 24 mm deep
• 4HP
