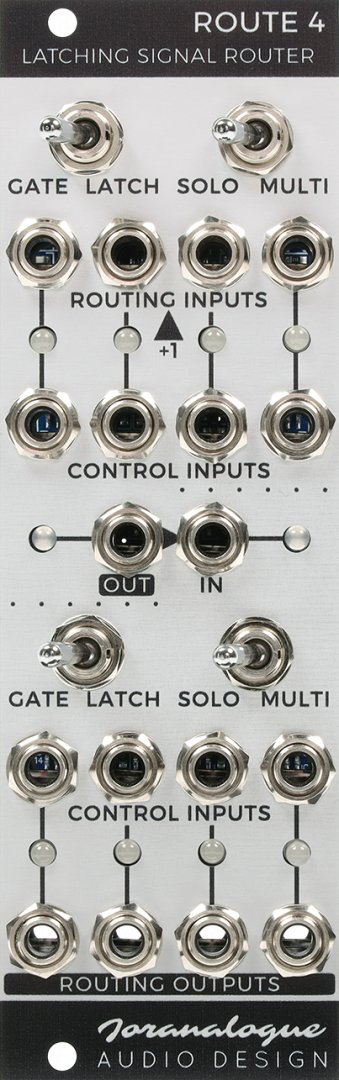

Latching Signal Router

Flexible Eurorack signal paths under gate or trigger control: that is the basic principle behind Route 4. Consisting of a pair of complementary routing sections, it grants access to a new level of signal routing options.

The module's top section is a 4-to-1 router. Any of the four signal inputs may be selected to be mixed into the section's output, as determined by the control inputs.

Control can either be gate or latch driven—in the latter case, the signal inputs are toggled on and off by received trigger pulses. Meanwhile, the solo/multi switch determines whether the inputs are exclusive, or if multiple may be active at the same time.

With each input socket biased by a +1 V precision voltage source when left unused, gate or trigger controlled transposition of pitch sequences becomes a breeze.

On the bottom, the 1-to-4 router provides the same feature set, with a single input being routed to up to four outputs and normalisation between the sections adding some patching convenience.

All signal paths are designed for use with any Eurorack signals, whether they be control voltages, audio or gate streams. Visual feedback is provided by 10 responsive LEDs, continually displaying the status of the routers.

With Route 4, an 8 HP super-flexible analogue mixing and routing powerhouse has arrived to fuel your patching imagination. The ability to redirect signals within a modular system on the fly, with an unparalleled level of control, is sure to excite even the most seasoned patcher.



Dimensions
8 HP
35 mm deep
Current Draw
35 mA +12V
20 mA -12V
0 mA 5V
