KLAVIS TWEAKERS PLUS 1U BLACK

KLAVIS TWEAKERS PLUS 1U BLACK

KLAVIS TWEAKERS PLUS 1U BLACK

Regular price $99.99
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

Dual gain/offset/polarity/mute CV processor

  • Two independent channels also useable jointly as a mixer or splitter
  • In each channel:
    • Input and output jack
    • Gain pot with up to 2.1 amplification
    • Bipolar offset pot
    • 3-position switch:
      • Inverted polarity
      • Channel off
      • Normal polarity
    • LED pair to indicate positive/negative signal level
  • Offset setting is independent of the polarity switch
  • Normalized input A can distribute the signal in both channels
  • Normalized outputs can mix the two channels on out B
  • Useable for audio
  • 1U module
  • Black bath-anodized brushed aluminium, 2mm thick

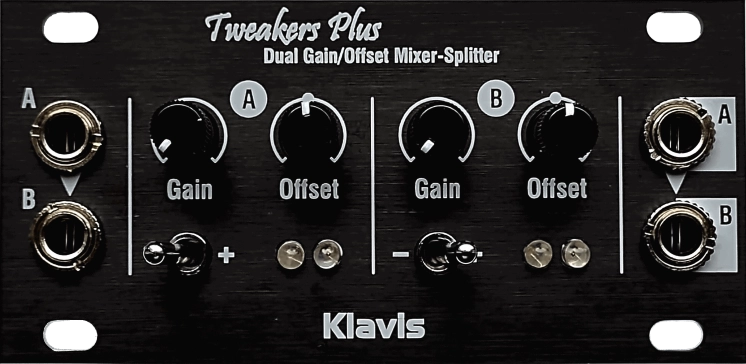

The Tweakers Plus is a slim companion module that allows fine tuning your modulations.


Two channels offer control over gain and offset. A three-position switch allows muting the channel and inverting the modulation polarity without impacting the offset.
A pair of LEDs tell the amplitude and polarity of the output signal; with audio signals, both LEDs light up together!


Normalizing of the inputs avoids using a multiple when a signal is dispatched to two targets.


Normalizing of the outputs offers an extra mixer, summing the two channels, very handy as an audio mixer too.

The Tweakers Plus is a perfect companion for modules whose modulation inputs lack such amenities.


Activating predefined settings at the flick of a switch is paramount for live situations. Being able to prepare two sets of carefully adjusted settings for a given signal is even more useful.

Mechanical

Dimensions mm inches Eurorack
Height 39.60 1.56 1HE
Width 81.20 3.20 16HP
Depth behind panel 33.00 1.30

Supply

Supply rail Current draw
+12V 23mA
-12V 25mA
+5V 0mA
