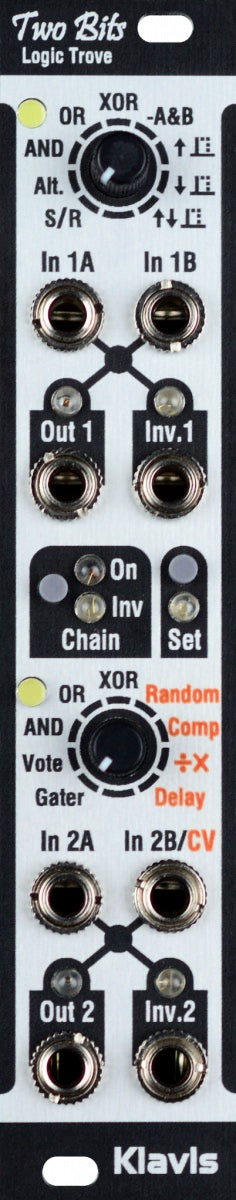

Dual logic processor with chaining and CV functions

• Two dual-input logic processors
• 15 different functions
• Simultaneously available normal and inverted outputs
• LEDs on all outputs
• Chaining optinally inverted by dedicated button with LEDs
• Chaining does not waste any input or output; an additional virtual input is created in the second section
• Functions with duration, voltage, percentage, and ratio are user editable.
• User settings are stored automatically
• Random pass, voltage comparator, clock mult/div and delay line functions allow CV control
• White LEDs next to the pots confirm the matching of knob position and function
• The outputs can be Ored by simple shorting in a multiple
• Firmware upgradeable by playing an audio file
• Low consumption, skiff-friendly & compact module
• Complements Klavis’ Logica XT with a varied feature set

Two dual-input sections can be used independently, put in parallel for 4-input wide logic, or chained for more advanced processing.
Each section presents normal and inverted outputs.
The two sections offer a set of common and specific functions for a total 15 different ones.
Several functions offer real-time CV control for dynamic changes of the conditions.
All time-related functions can be independently user adjusted and are saved automatically.
LEDs tell permanently the actual status of all outputs.

Mechanical

Supply
