KOMA KOMPLEX SEQUENCER
KOMA KOMPLEX SEQUENCER
Regular price$1,62500
$1,625.00
/
- Free shipping over $99 to most states
- Easy returns
- Secure payments
- In Stock

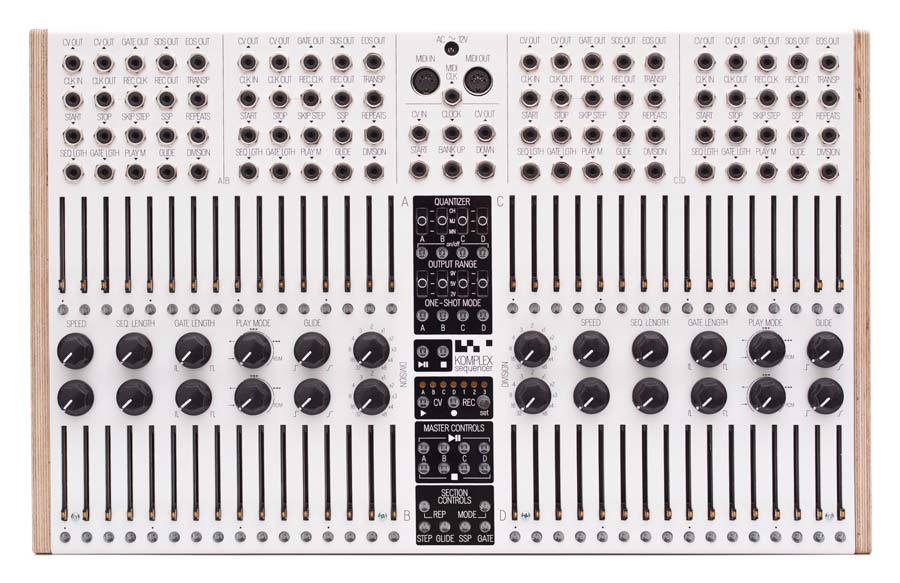

Our new step sequencer lets you construct complex musical patterns, via both MIDI and CV/Gate. Built around four full-featured 16-step sequencers in a compact and light enclosure, the Komplex Sequencer is a powerful tool both live and in the studio. All features have their own dedicated controls; no screens or submenus, and all features have their own dedicated in- and outputs on the large 87-point patch bay.
By patching both internal and external CV sources through the patch bay of the Komplex, you can control any parameter of the sequencer immediately and “sequence the sequence.” Controls include Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Transpose, Repeat, Sequence Start Point and Skip. Additionally, the sequencer can vary output range and also has a quantizer on board operable in different scales.
And not only is the sequencer compatible with almost any synthesizer with CV/Gate, MIDI note, velocity and CC information can also transmitted by any of the four sequencers. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once! The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped.
More information on all the functions of the Komplex Sequencer:
KOMPLEX SEQUENCER KNOWLEDGE BASE
Manuals:
You can download the PDF manual (Version 1.1) here
And in white here.
Download the Mode-Menu Manual annotations here.
CV Inputs |
Clock, Rec Clock, Transpose, Start, Stop, Skip Step, Sequence Start Point, Repeats, Seq Length, Gate Length, Play Mode, Glide, Division, CV Recorder (CV In, Clock, Start, Bank Up/Down) |
---|---|
CV Outputs |
CV Out, Gate Out, Start Of Sequence, End Of Sequence, Clock, CV Recorder CV Out (A, B, C, D and CV) |
Sequencer Controls |
64 Sliders and Step Select Buttons, Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Quantizer and Scale, Output Range, One-Shot Mode, Play/Pause and Stop, Global Play/Pause and Global Stop |
Section Controls |
Repeat Set, Mode Menu, Skip Step, Glide, Sequence Start Point, Gate |
MIDI |
MIDI In, MIDI Out, MIDI Clock Out (1 trigger per quarter note) |
CV Recorder |
Banks A, B, C and D available at corresponding sequencer patch bay outputs. All 7 banks selectable at CV Recorder CV Out by the Select control or Bank Up/Down inputs. CV is recorded and clocked through the CV Recorder CV and Clock inputs or Sequencer Rec Clock inputs. |
Extra Features |
Mode Menu (Skip Step Mode, Repeat Mode, Unipolar/Bipolar CV Output, MIDI Message, MIDI Channel, MIDI CC) and Firmware Updates |
Casing: |
Powder coated aluminum casing, silk screened printing and wooden side panels. |
Dimensions |
46.2 cm x 29 cm x 4 cm (L x W x H) |
Net Weight |
3.2 kg / 8.8 lb |
Shipping Weight: |
4.5 kg. / 9.9 lbs including power adapter and instruction manual. |
Power Requirements: |
12V AC power adapter. Only use the KOMA adapter shipped with the unit. |
Accessories |
Included: dust cover, manual and power supply unit. |
