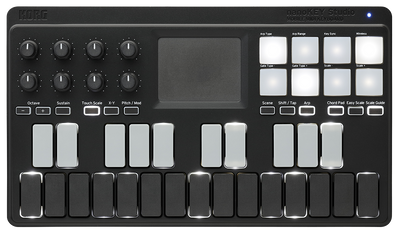

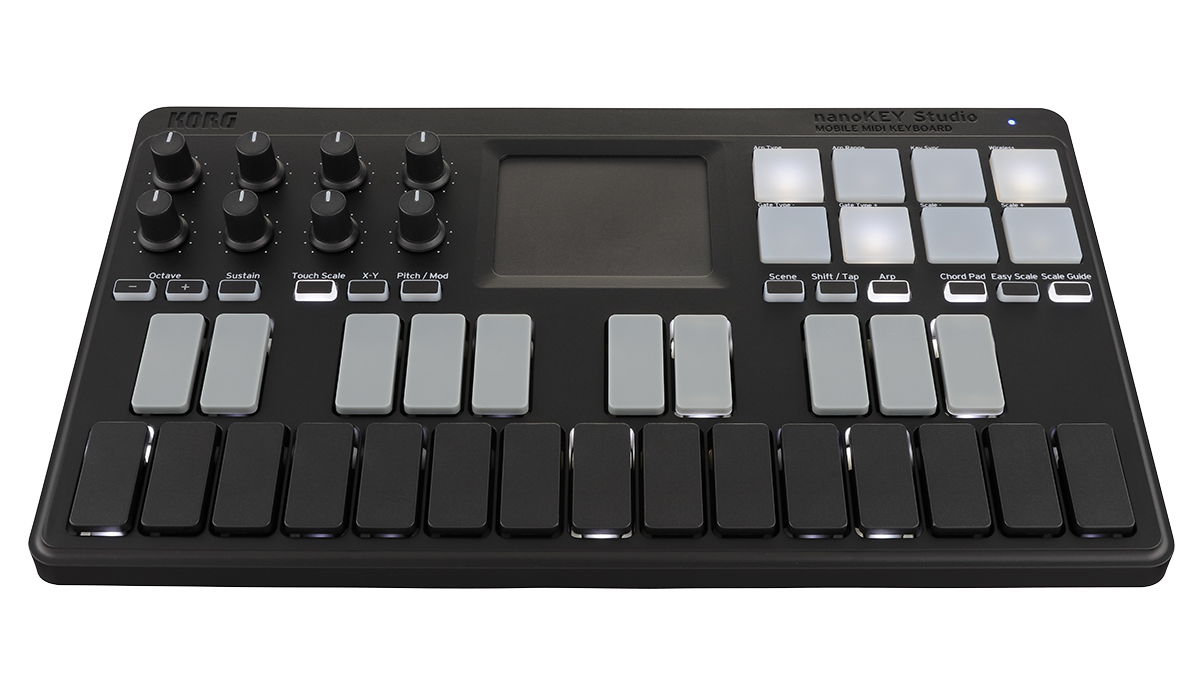

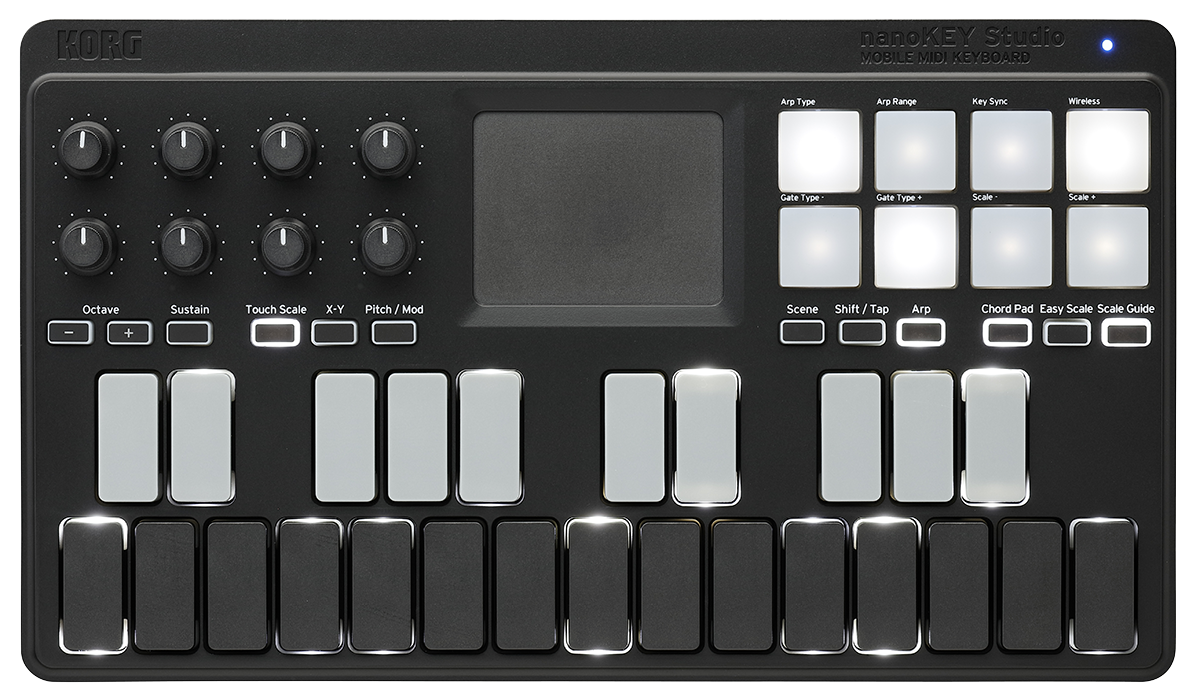

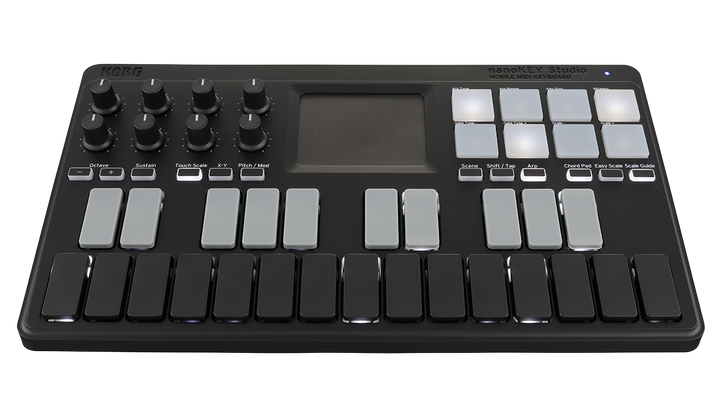

An all-in-one that delivers inspiration. A mobile MIDI keyboard that connects via USB or wirelessly.
The nanoKEY Studio provides a keyboard, knobs, trigger pads, and touch pad that lets you instantly convert your inspiration into sound. It is battery operated and can connect wirelessly to iPhone/iPad or Mac/Windows. It’s a compact, mobile MIDI keyboard that is easy to travel with, allowing ease of use anytime, anywhere.
Step-record as easily as typing. A keyboard with 25 backlit keys that illuminate.
Even if you’re not the most skilled keyboardist, the 25 velocity-sensitive keys allows you to step-record easily. The Scale Guide function illuminates the keys to show recommended notes in the scale, making it easier to play. This is a smart keyboard with a variety of performance modes, such as the Easy Scale function, that lets you produce musical phrases using any keys.
More freedom to produce music, via USB or wirelessly.
The nanoKEY Studio can connect not only via USB but also wirelessly. It’s easy to connect to an iPad/iPhone music app such as KORG Gadget or Apple GarageBand, or to your Mac/Windows music production software. Liberated from annoying cables, you’ll be free to set up your system much easier than some other products. Thanks to careful tuning, you’ll enjoy low latency and high stability.
Eight high-sensitivity trigger pads that you can use for drum input or playing chords.
The eight velocity-sensitive trigger pads will convey every dynamic nuance of your drum performance. In chord-playing mode, the Chord Scale function automatically assigns the best chords for the key and scale you’ve selected, so your song will take shape at amazing speed. You can also assign the pads to trigger audio clips. These pads are not limited by musical genre; they deliver all-purpose music production power.
Touch pad inherited from the KAOSS series provides one-finger control of software synthesizers.
You can use a single finger to control a software synthesizer just like you can with a Kaossilator, or control a plug-in effect the same way as a KAOSS PAD. The nanoKEY Studio features an arpeggiator with rhythm patterns, letting you generate a succession of new phrases simply by touching the pad.
The eight knobs provide versatile control of your software synthesizers, plug-in effects, and DAW mixer.
- 25-key Keyboard with velocity sensitivity (four velocity curve),
8 trigger pad (velocity sensitivity is supported, four velocity curve),
8 knobs, X-Y pad
- Octave + / - buttons, Sustain button, Touch Scale button, X-Y button, Pitch / Mod button, Scene button, Shift / Tap buttons, Arp button, Chord Pad button, Easy Scale button, Scale Guide button
- Octave Range
- Scene Memory
- USB jack (micro B type)
- Wireless Type
- Bluetooth Low Energy (Apple Bluetooth Low Energy MIDI specification compliant)
- Power Supply
- USB bus power (when connected via USB)
Two AAA batteries (when connected wirelessly; use alkaline or nickel-metal hydride batteries)
- Battery Life
- Approximately 10 hours (with the factory settings, when using alkaline batteries)
* Battery life will vary depending on the batteries used and on the conditions of use.
- Power Consumption
- Less than 500mA
- Dimensions (W x D x H)
- 278 mm x 160 mm x 33 mm / 10.94" x 6.30" x 1.30"
- Weight (without batteries)
- 471 g / 1.04 lbs. (without batteries)
- Included Items
- USB cable, KORG Software Bundle code, two AAA Batteries for checking operation
