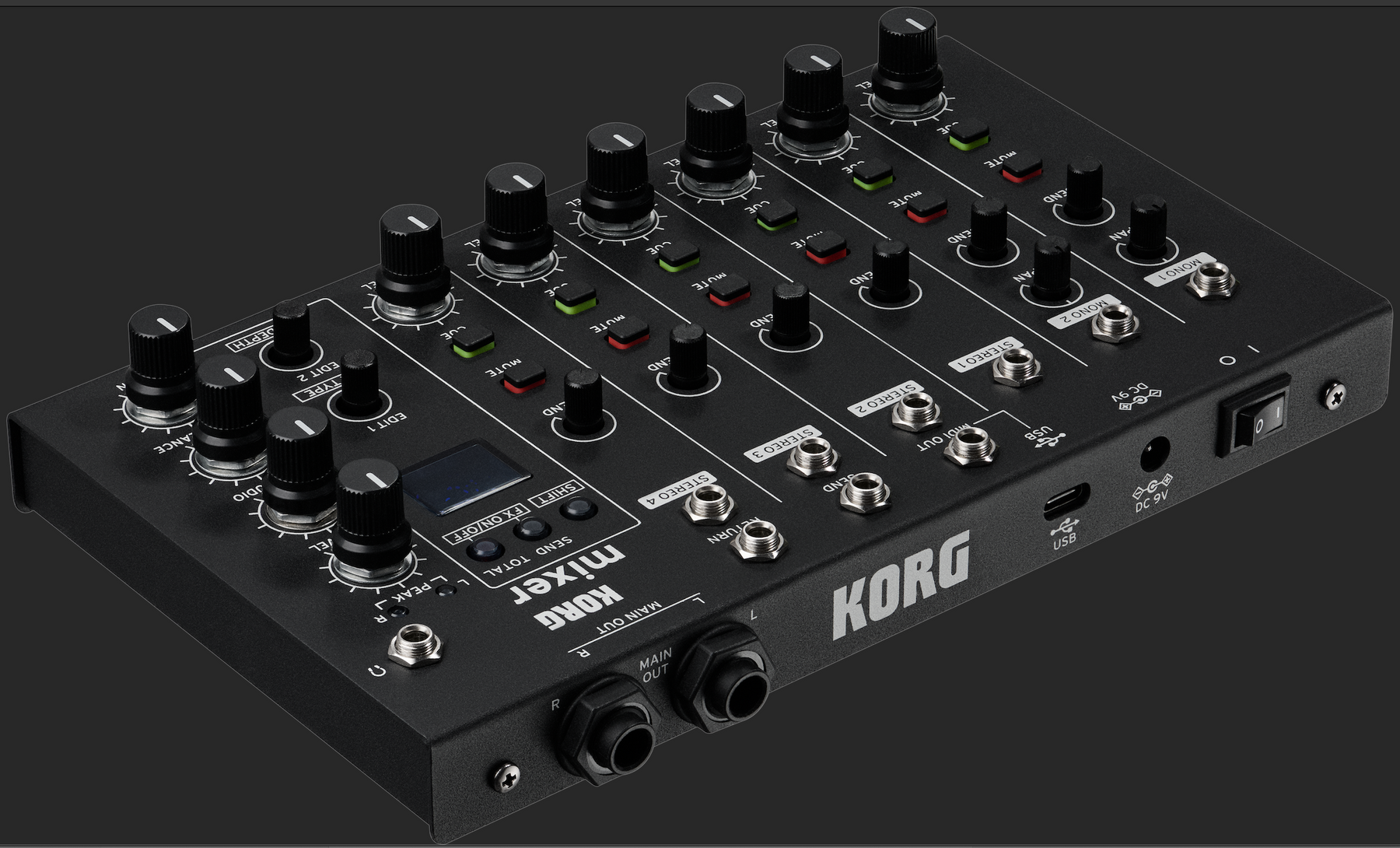

PERFORMANCE MIXER KIT

A compact analog performance mixer built for modern setups.

The NTS-4 brings the flexibility of the Nu:Tekt series into a powerful performance mixer. With six

channels, integrated effects, and USB audio/MIDI connectivity, it’s designed to connect, mix, and

perform with volca units, NTS instruments, modular gear, and desktop synths in one streamlined

setup.

Six channels. One unified setup.

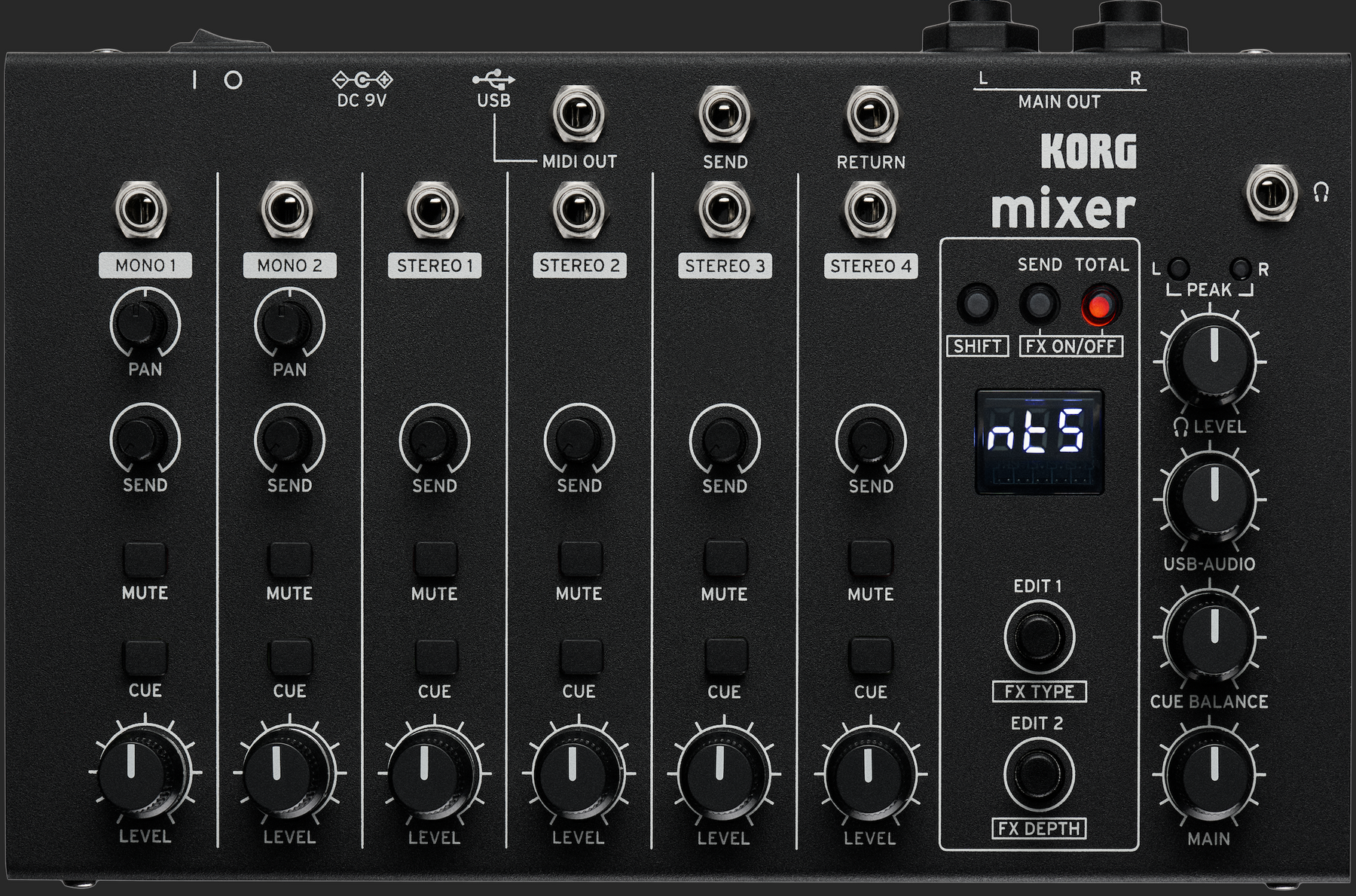

With four stereo channels and two mono channels, the NTS-4 makes it easy to combine multiple

instruments into a single performance rig, supporting up to 10 total audio signals. Each channel

includes level control, mute, CUE monitoring, and FX send for flexible mixing and performance

control. All inputs use compact 3.5 mm mini-jacks, ideal for volca units, NTS instruments, and other

desktop gear.

Designed for synths and modular gear.

The mono inputs support both line-level and modular-level signals via a switchable attenuator,

allowing seamless integration with Eurorack systems. Dedicated SEND and RETURN connections

make it easy to expand your setup with external effects.

Shape your mix in real time.

Two independent stereo effects engines provide per-channel SEND FX for spatial processing, while a

master TOTAL FX section shapes the entire mix. Add delay, reverb, modulation, drive, and

compression to bring depth, movement, and cohesion to your sound.

Hands-on control for live performance.

Each channel includes dedicated CUE and MUTE controls. Preview sounds through headphones

before bringing them into the mix, or create instant drops and transitions with responsive muting.

Seamless connection to your setup.

USB-C provides 24-bit audio and MIDI connectivity for recording, streaming, and DAW integration.

Mix hardware and software together, or record directly to your computer or mobile device. MIDI

received over USB can be routed through the dedicated MIDI OUT to control external hardware.

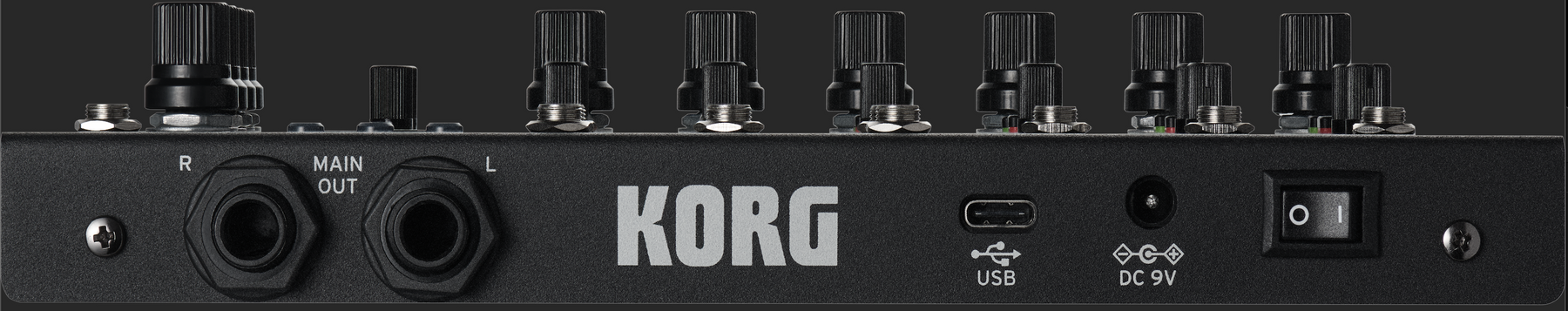

Standard 1/4" outputs provide reliable connection to studio and live systems.

Compact, stable, and built to last.The steel body provides a solid foundation that stays in place even in fully patched setups. Despite

its small footprint, the NTS-4 is built to handle real-world performance and studio use.

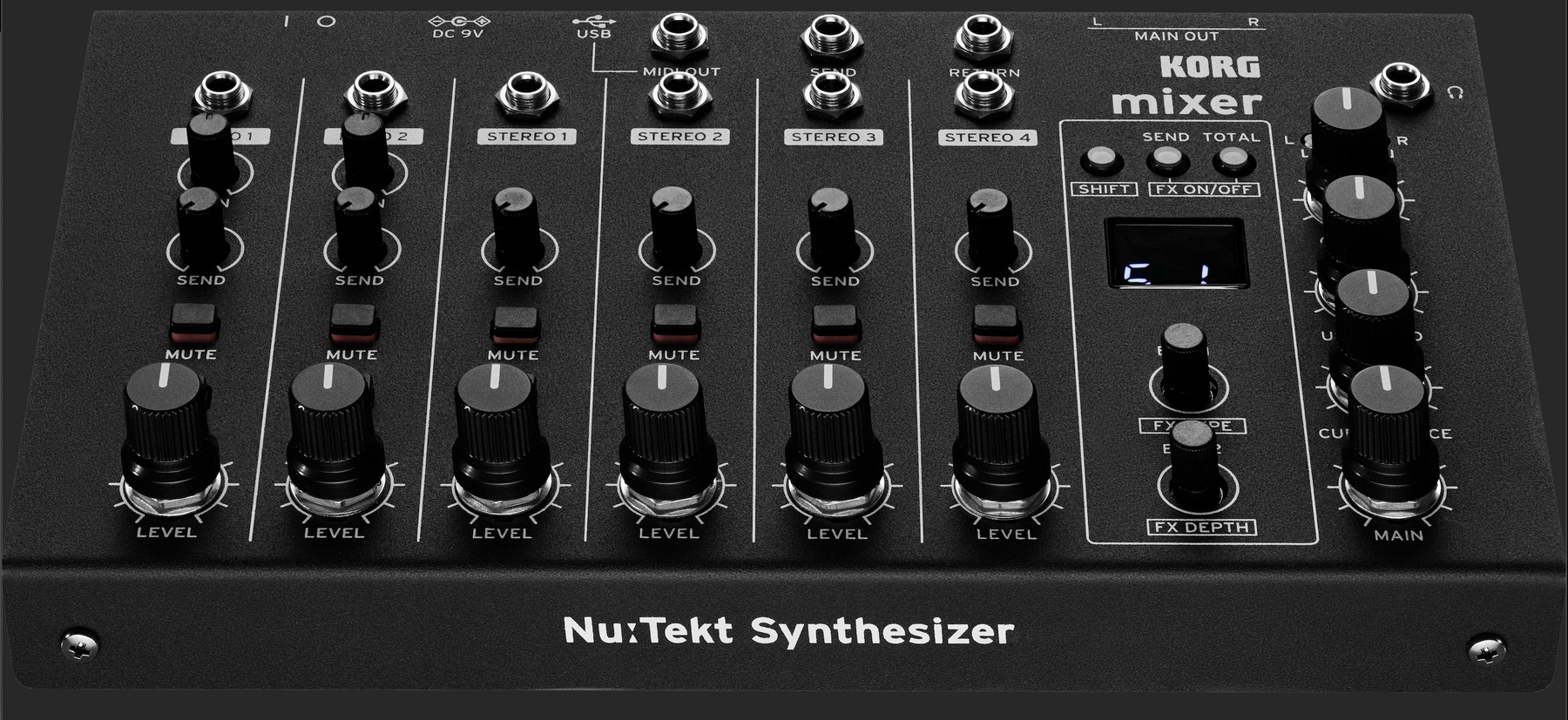

Build it. Make it yours.

As part of the Nu:Tekt series, the NTS-4 is a simple DIY kit that can be assembled with ease. Once

built, it becomes a durable, high-quality performance mixer ready for long-term use.

Designed for compact performance rigs.

The NTS-4 is built to sit at the center of small hardware setups, reducing cable clutter and simplifying

routing so you can focus on performance.

SPECIFICATIONS

Output jacks and connectors

MAIN OUT L, R jacks (6.3 mm monaural phone jack, unbalanced)

Headphone jack (3.5 mm stereo mini-phone jack, unbalanced)

SEND jack (3.5 mm stereo mini-phone jack, unbalanced)

Input jacks

MONO 1, MONO 2 jacks (3.5 mm monaural mini-phone jack, unbalanced)

STEREO 1, STEREO 2, STEREO 3, STEREO 4 jacks (3.5 mm stereo mini-phone jack, unbalanced)

RETURN jack (3.5 mm stereo mini-phone jack, unbalanced)

Other jacks and ports

MIDI OUT jack (3.5 mm TRS mini-phone jack)

USB port (USB Type-C)

Built-in effects

SEND FX: DELAY, PING PONG DELAY, HALL REVERB A, HALL REVERB B, SLAP REVERB A,

SLAP REVERB B, CHORUS

TOTAL FX: LPF, HPF, ISOLATOR, FLANGER, PHASER, DECIMATOR, DRIVE, DISTORTION,

COMPRESSOR, LIMITER

Display

7-segment LED display (3 digits)

Power supply

USB bus power

AC adapter (DC 9 V) (sold separately)

No-load power consumption

0.1 W at 230 V

Dimensions (W x D x H)

195 x 125 x 38 mm/7.68 ̋ x 4.92 ̋ x 1.50 ̋

Weight

613 g/1.35 lbIncluded items

USB Type-C to Type-A cable, Precautions/Assembly Instructions

Accessory (sold separately)

AC adapter (DC 9 V)
