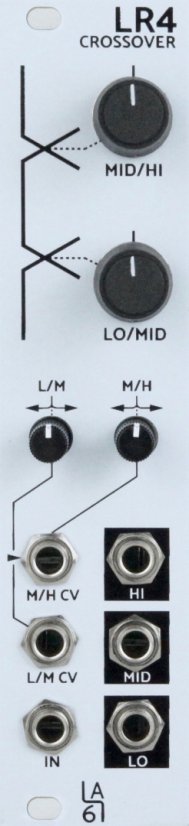

A three-way crossover under voltage control. Two four-pole state variable filters in series allow an input signal to be split into three non-overlapping bands, while the fourth-order Linkwitz-Riley slopes provide ideal band separation. And because both filters are full range, the bandwidths are arbitrary, not range-restricted.
• 24dB/oct filter slopes • Fourth-order Linkwitz-Riley response curve • 20hz-20khz range for both filters • Individual CV inputs for both crossover points • Inverting attenuators on CV inputs • "L/M CV" input normalled to "M/H CV" input • Exponential CV response
• 6hp • 20mm depth • Current draw: 45mA/45mA +12v/-12v
