LA67 WFM OSCILLATOR

LA67 WFM OSCILLATOR

LA67 WFM OSCILLATOR

Regular price $210.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

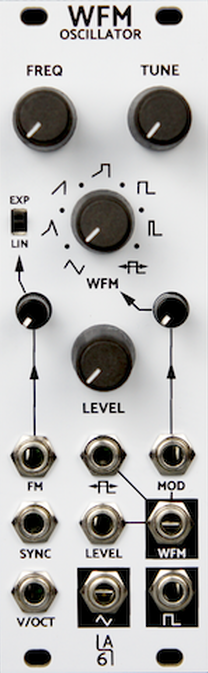

An analog VCO with a unique wave shaping circuit. Based on the 1970s Kobol synthesizers, the WFM output provides a continuously variable wave shape from triangle to saw to modulated pulse, with many interesting points in between. Voltage control over wave shape and output amplitude allow for wide timbral variations.

Features

• Three simultaneous waveform outputs: Triangle, Pulse, and WFM
• FM input with attenuator, switchable between linear and exponential
• V/Oct input
• Sync input
• WFM "MOD" input with attenuator
• WFM "LEVEL" input
• WFM variable pulse input
• 10hz-25khz frequency range
• 8+ octaves tracking

Technical Specifications

• 8hp
• 35mm depth
• Current draw: 65mA/65mA  +12v/-12v

• Reverse power polarity protection
