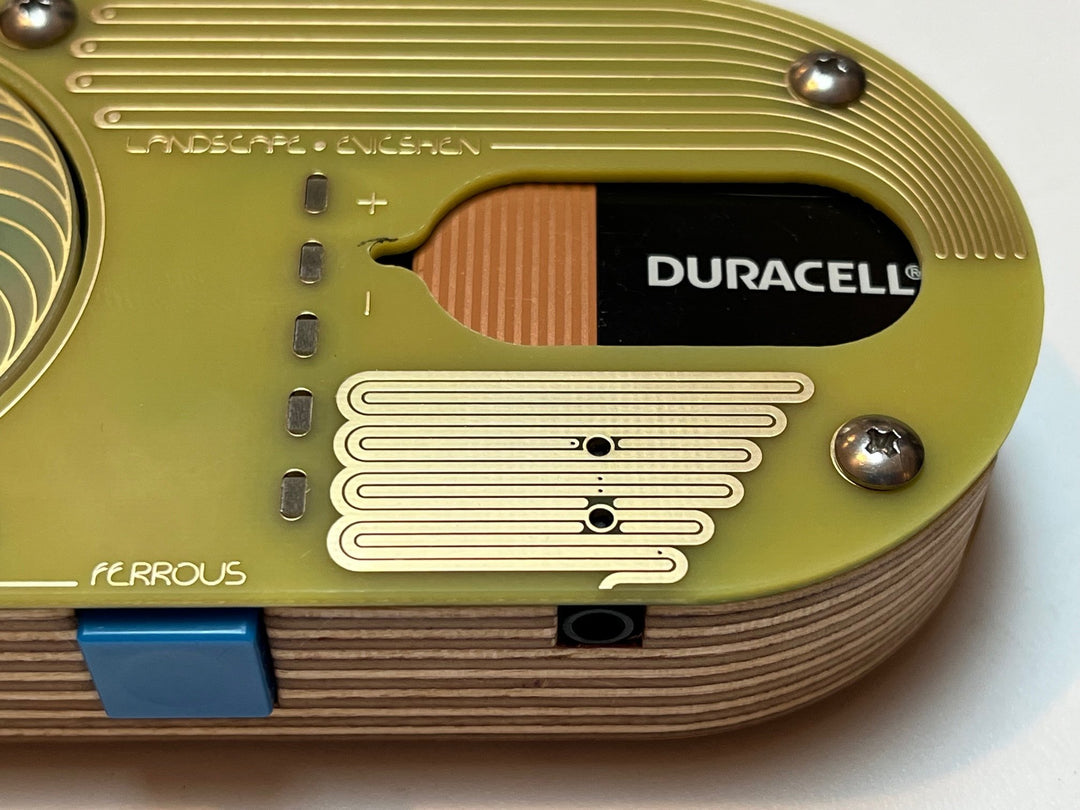

LANDSCAPE FERROUS

Sitar

Electric Guitar

Acoustic Guitar

Electric Bass

Acoustic Bass

Piano

Veena

Urhu

Mandolin

Violin

Cello

Banjo

Auto-harp

Double Bass

Harp

Pedal Steel

Kalimba

Psaltery

Zither

Baglama

Swarmandal

Resonant Steel/Iron everyday objects

Resonant non-steel objects (when used with earth magnets attached to or sandwiching said objects)

+ other instruments with steel strings not yet tested

*All listed above must be of the steel string variety

-Sine wave-like string resonance + harmonic overtones

-Pitch modulation / pitch bending behavior

-Pseudo feedback tonalities

-Polyphonic “magnetic strumming” of strings can be achieved by starting the disc at a lower RPM and pulsing the motor faster, either with the “Rev Button,” the “Thumbwheel,” the “Touch Plate,” or the “Control Voltage Input”. Magnetic Strumming not only affects the fundamental pitch of a string but can be heard affecting and accentuating various harmonic overtones.

-”Pitch blending” interactions between dominant resonant string(s) pitch and brushless motor speed. As the motor/magnet RPM speed comes into “alignment” with the resonance of surrounding strings, you will sometimes hear two pitches beating against one another before sliding/bending into place, resulting finally in a swell in volume and greater string vibration. This can be happening to multiple strings simultaneously.

-Multiple strings can be affected while the RPM is steady. For example, you may hear the fundamental pitch of multiple strings resonating while higher harmonics are activated on others. Different RPMs can provide different additive harmonic combinations between the same strings (or chord) being held.

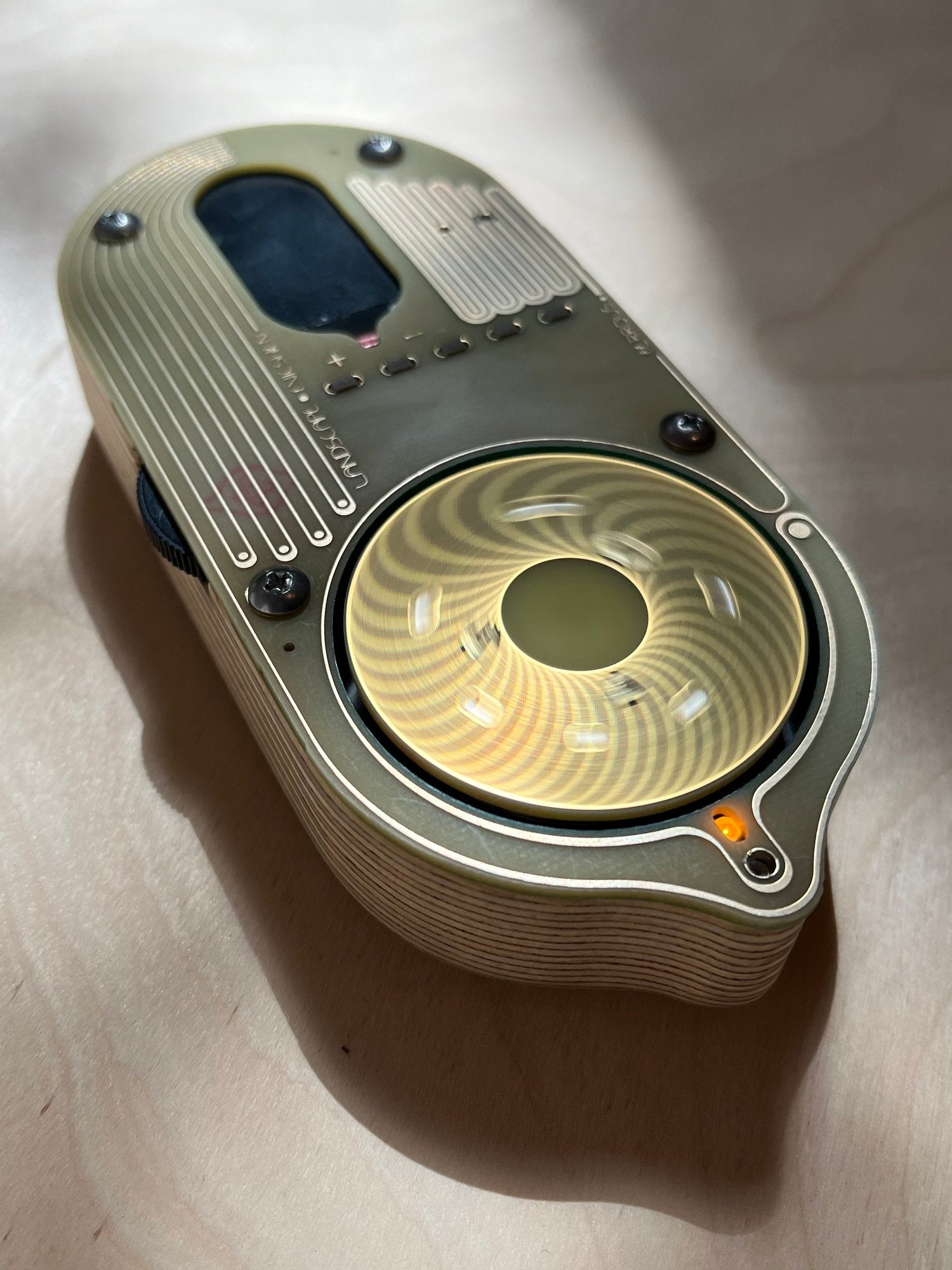

-There are three small magnets and three larger magnets aligned in overlapping triangular patterns on the disc. The smaller magnets help provide higher-order harmonics and the larger magnets help create greater string movement and lower-order harmonics.

-Higher RPMs often lead to higher strings resonating and higher harmonic overtones. Lower RPMs often lead to lower strings resonating and less harmonic overtones.

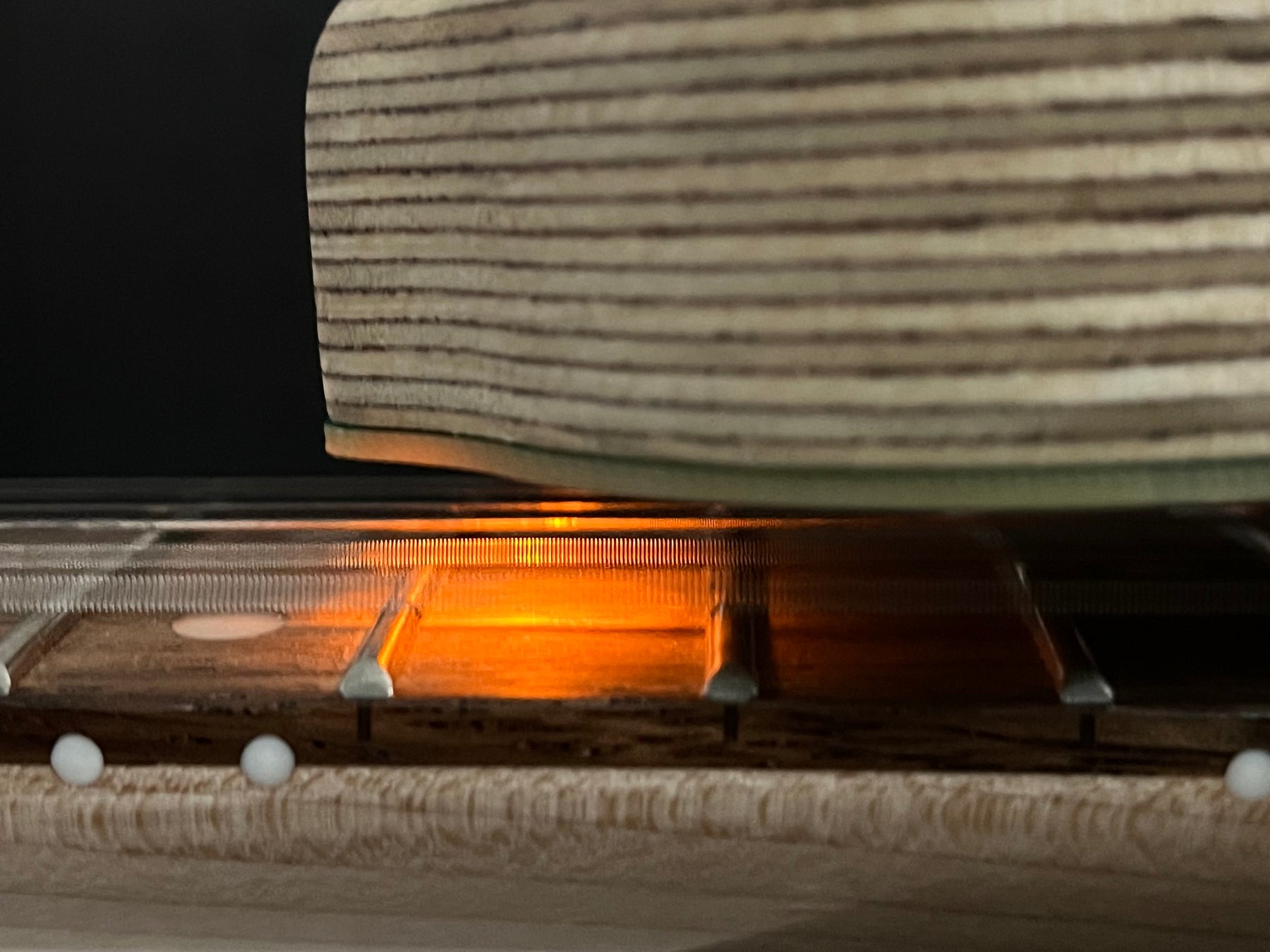

-When using Ferrous with an electric guitar (or other instrument with pickups) the preferred placement is above the fretboard. Keeping the rotating disc at least 5” away from magnetic pickups ensures less of the motor sound mixing with the resonating string sound (unless this is a desired effect).

-When using an electric guitar, placement lower on the neck can create interactions between magnetic disc and pickups with overtones of resonating strings. When placed directly over magnetic pickups, pitch is derived from the rotation of the magnets, and the volume is derived from the distance between Ferrous and the pickups. **Never place the magnetic disc directly onto pickups because this can damage them.

SPECIFICATIONS
