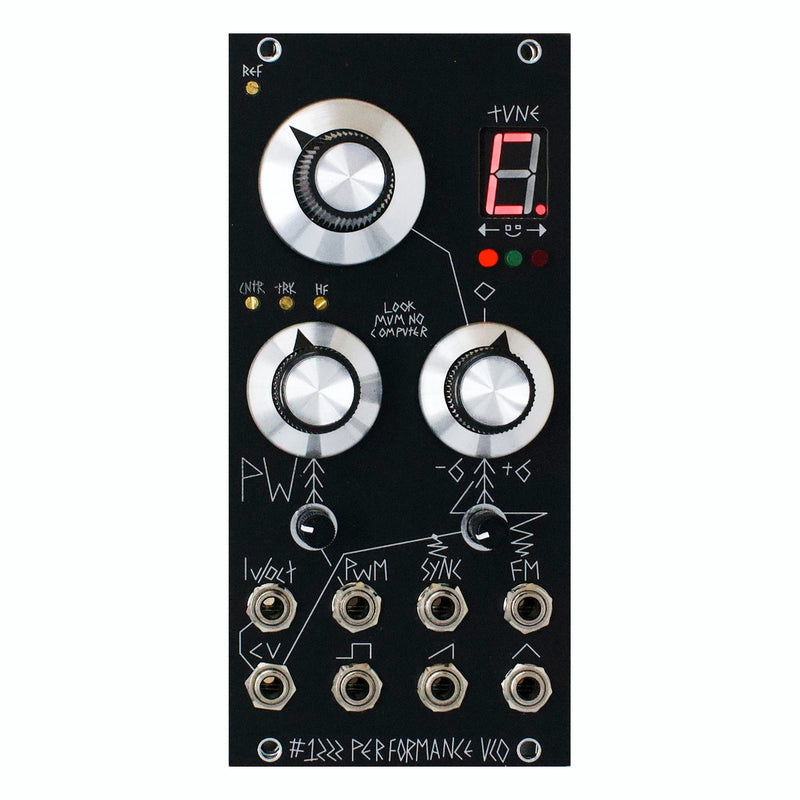

This is an adorable Eurorack version of the Look Mum No Computer analog performance VCO with built in tuner.
Born from the frustration of playing shows, or not having a tuner to hand and getting in tune enough to get going, instead of sitting around being out of tune.
It’s also got a five octave rotary switch and a fine tune knob that is exactly an octave with a centre point of C, making it easy to find the note you need.
Simple controls: pulse width, PWM, fine tune, Extra CV, Sync, FM. Simultaneous square, ramp and triangle outputs.
Note that the outputs are unipolar audio signals with levels that vary from +4v to +8V.
Power consumption: 52mA (+12V), 17mA (-12V)
Width: 12 HP
