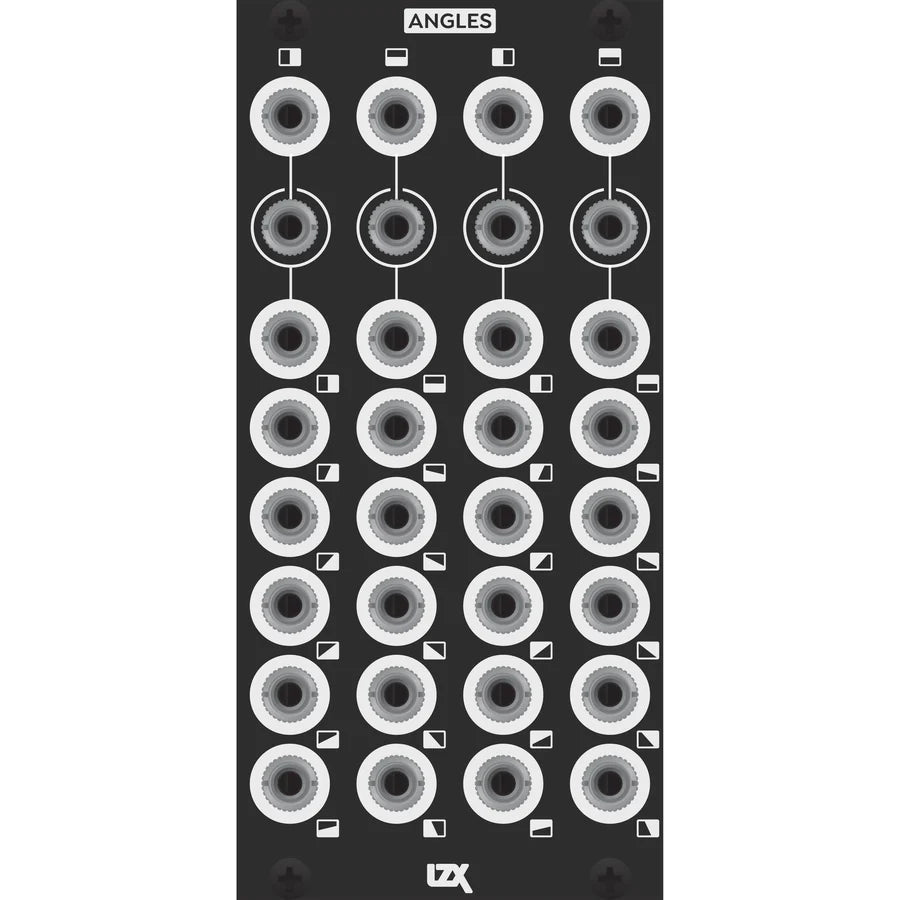

ANGLES is a 12HP ramp generator with 24 fixed outputs at 15 degree increments from 0 degrees (H-Ramp) to 345 degrees. It can also be used as a general purposed fixed ratio mixer by patching the inputs. It's a protractor for your patch!

LZX Gen3 Design Standards

• Long lifespan jacks
• Integrated ultra low noise power supplies.
• Powered via 12V DC barrel or EuroRack power header.
• Mounting depth 42mm max, with either power option installed.

Specifications

• 12HP EuroRack Module
• Max Depth: 42mm
• +12V Power Consumption: 175mA
