I am Arch. I span the thoroughfares of your video instrument with my continuous lines and splendid ornamentation.  I can show you new routes!  Over, atop and between your well worn paths: join, constrain, bend and split shape and form with the magic of my nonlinear processes.

2-input, 5-output wideband analog logic.

Binary logic can only see two colors: black and white. Analog logic processes the continuous grayscale range of your analog signal path, enabling organic combinations of images in novel ways.

1-input, 3-output full wave rectifier and frequency doubler.

We love this circuit – you can find it in the signal paths of Staircase, Shapechanger and Navigator. With an input triangle wave, you get a triangle wave at double the frequency at your output.

1-input, 2-output gamma processor.

An infinitely usable function, gamma processing adjusts the brightness of mid-gray level while keeping black and white points consistent. The square function darkens grays, and the log function brightens them.

SKU	LZXAR
Series	Expedition
Functions	Nonlinear
Width	8HP
Mounting Depth	32mm
+12V Power Consumption	65mA
-12V Power Consumption	65mA
Packaging Dimensions	6 x 4 x 59013924033 in
Shipping Weight	8 oz


ModularGrid Link

	User Reference Card	6.88 MB
	Frontpanel Illustration	483.13 KB
	Frontpanel Dimensions	856.26 KB
	Info Sheet	78.01 KB

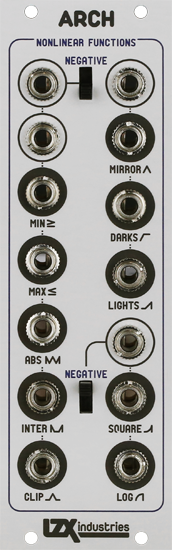

	Front Photo	2.39 MB

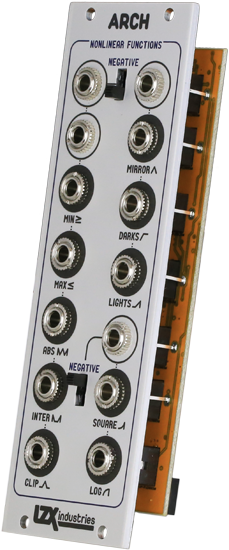

	Side Photo	3.01 MB
