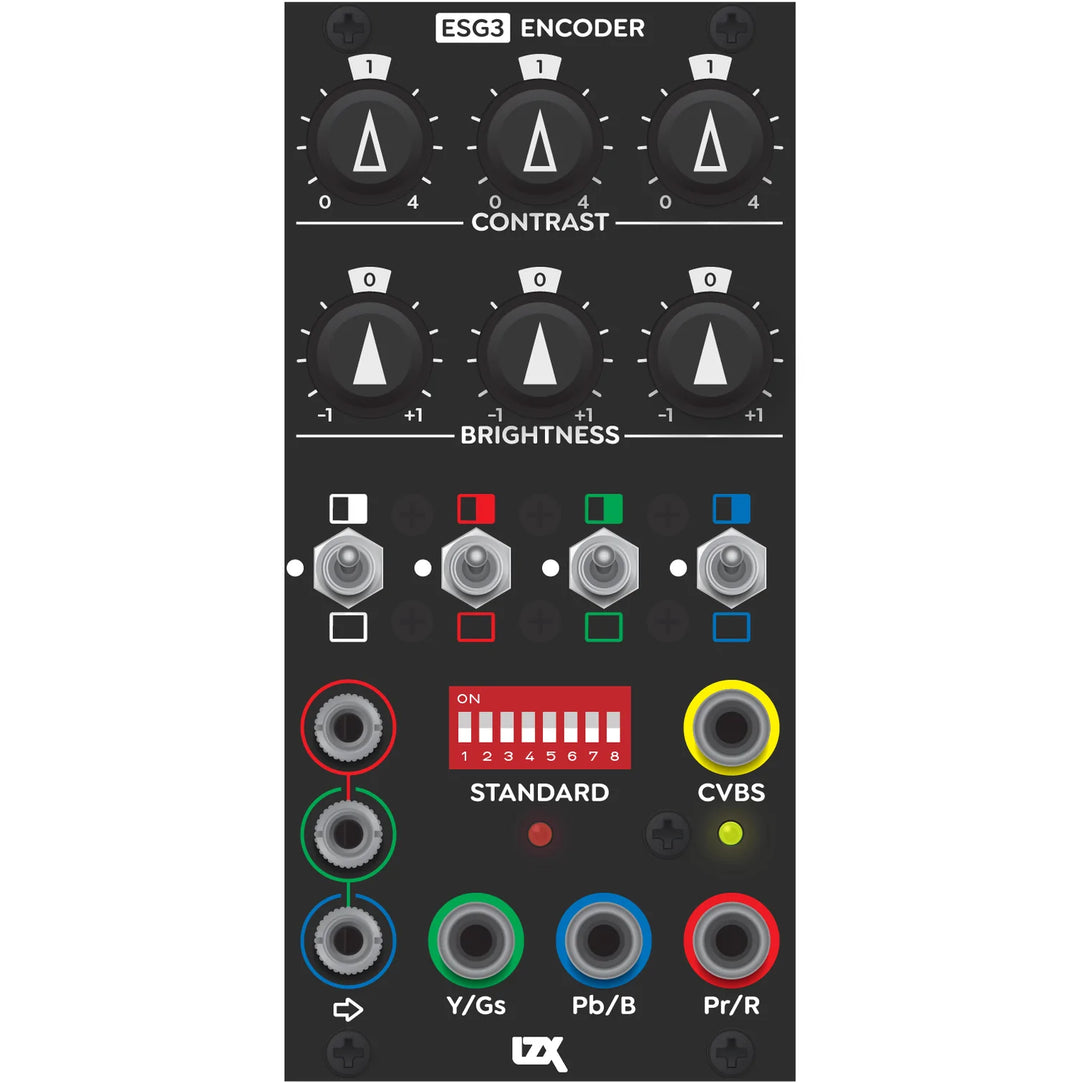

LZX ESG3 ENCODER AND SYNC GENERATOR

LZX ESG3 ENCODER AND SYNC GENERATOR

LZX ESG3 ENCODER AND SYNC GENERATOR

Regular price $499.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

ESG3 Encoder is our third generation of video synthesis core modules, offering everything you need to convert voltages from your EuroRack synthesizer into HD/SD Component and SD Composite video signals.

  • Programmable output and sync reference format: NTSC, PAL, 486p5994, 576p50, 720p50, 720p5994, 720p60, 1080i50, 1080i5994, 1080i60, 1080p2398, 1080p24, 1080p25, 1080p2997, 1080p30.¬†
  • HD/SD component and¬†composite video encoding with a fully analogue signal path.
  • RGB proc amp with brightness, contrast, inversion and mute per channel.

LZX Gen3 Design Standards

  • Long lifespan pots, jacks and mechanical switches.¬†¬†
  • Toggle switches latched to vertical refresh.
  • Active switching and gain control of the entire signal path.¬†
  • Integrated ultra low noise power supplies.
  • Powered via 12V DC¬†barrel or EuroRack power header.
  • Mounting depth 42mm max, with either power option installed.

Specifications

  • 12HP EuroRack Module
  • Max Depth: 42mm
  • Power +12V @ 300mA
