MAKE NOISE MODDEMIX 2014

MAKE NOISE MODDEMIX 2014

MAKE NOISE MODDEMIX 2014

Regular price $140.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

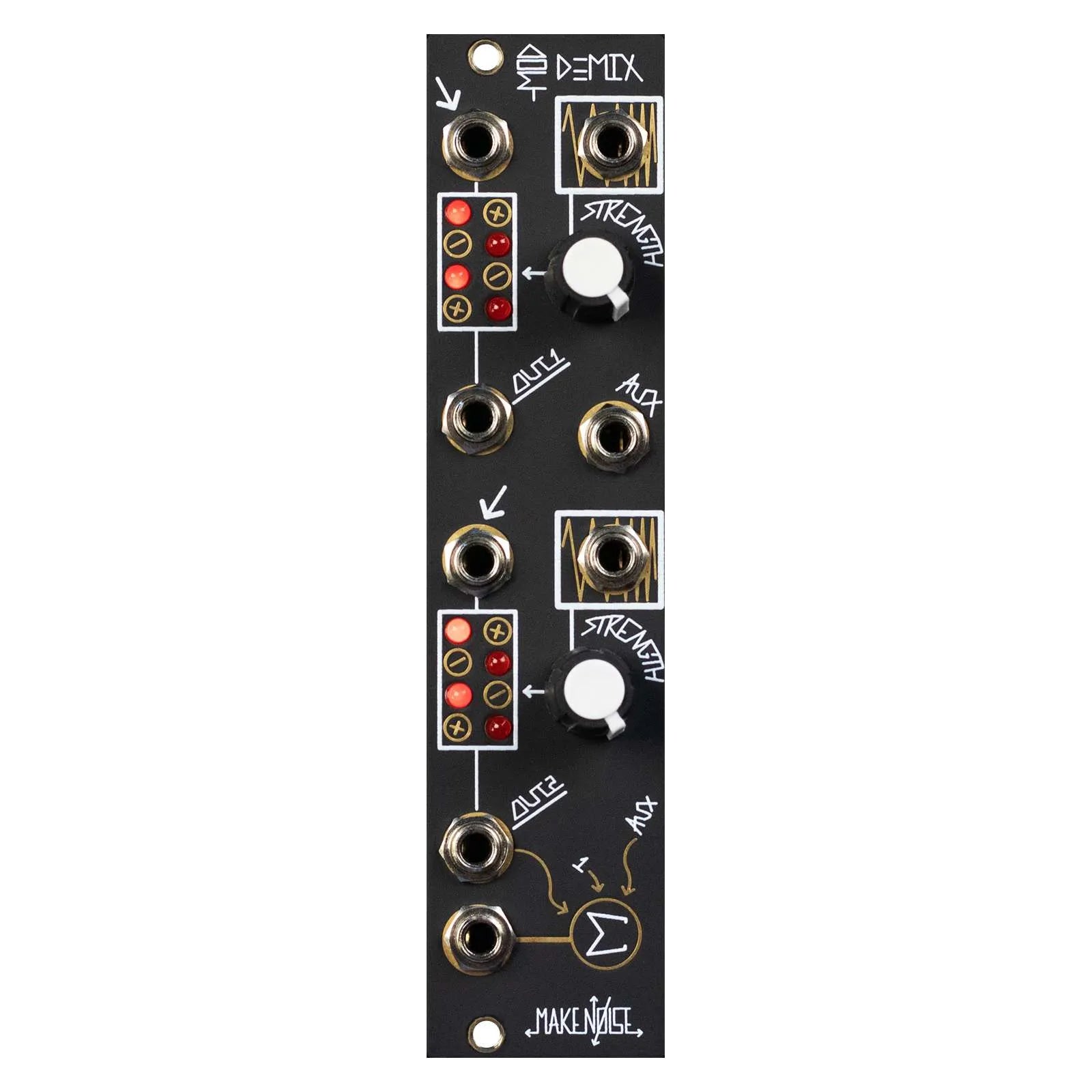

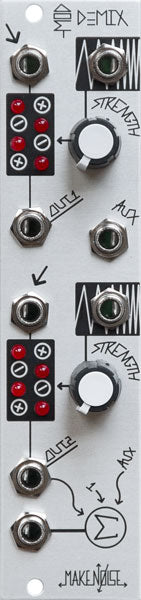

The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.

  • Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA

  • STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control setting level, with signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation

  • Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer

  • AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes

  • Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod

  • MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module

  • Pairs well with MATHS and Optomix

Specifications

  • Width:
    6hp
  • Max Depth:
    24mm
  • Power:
    30mA@ +12V 30mA @ -12V
