MAKE NOISE PRESSURE POINTS

MAKE NOISE PRESSURE POINTS

MAKE NOISE PRESSURE POINTS

Regular price $215.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

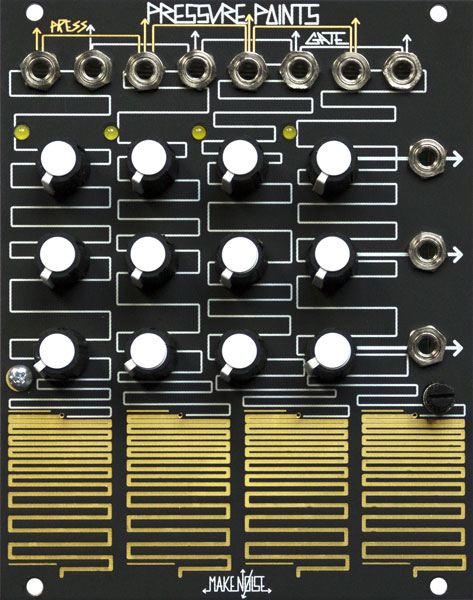

Pressure Points is a controller module, an analog sequencer that is played by hand. Touching the gold plated copper wires (aka Touch Plates), you become part of the circuit, generating a gate signal (Gate OUT), a control signal proportional to the amount of pressure applied (Press OUT) and the 3 Tuned Voltages for the activated Stage.

  • The Gate signals may be used to turn portions of a patch ON/ OFF, generate Timing Events within a patch or to Trigger a Function Generator such as MATHS

  • The PRESSure signals may be used to add expression to a patch by varying Pitch or Timbre in real-time, based upon the artist's input

  • The Tuned Voltages may be used to play the Pitch of a sound in a traditional melodic fashion, Program Chords or Timbral shifts (aka Presets)

  • Up to 6 may be CHAINed together (using CHAIN Cable), to create controllers of varying size and complexity

  • All outputs are capable of driving a passive 4 way mult without loading effects (no buffered mult needed)

  • Expansion port allows for sequential control via the BRAINS expander module

  • Pairs well with MATHS

Specifications

  • Width:
    20hp
  • Max Depth:
    24mm
  • Power:
    20mA@ +12V
    0mA @ -12V
