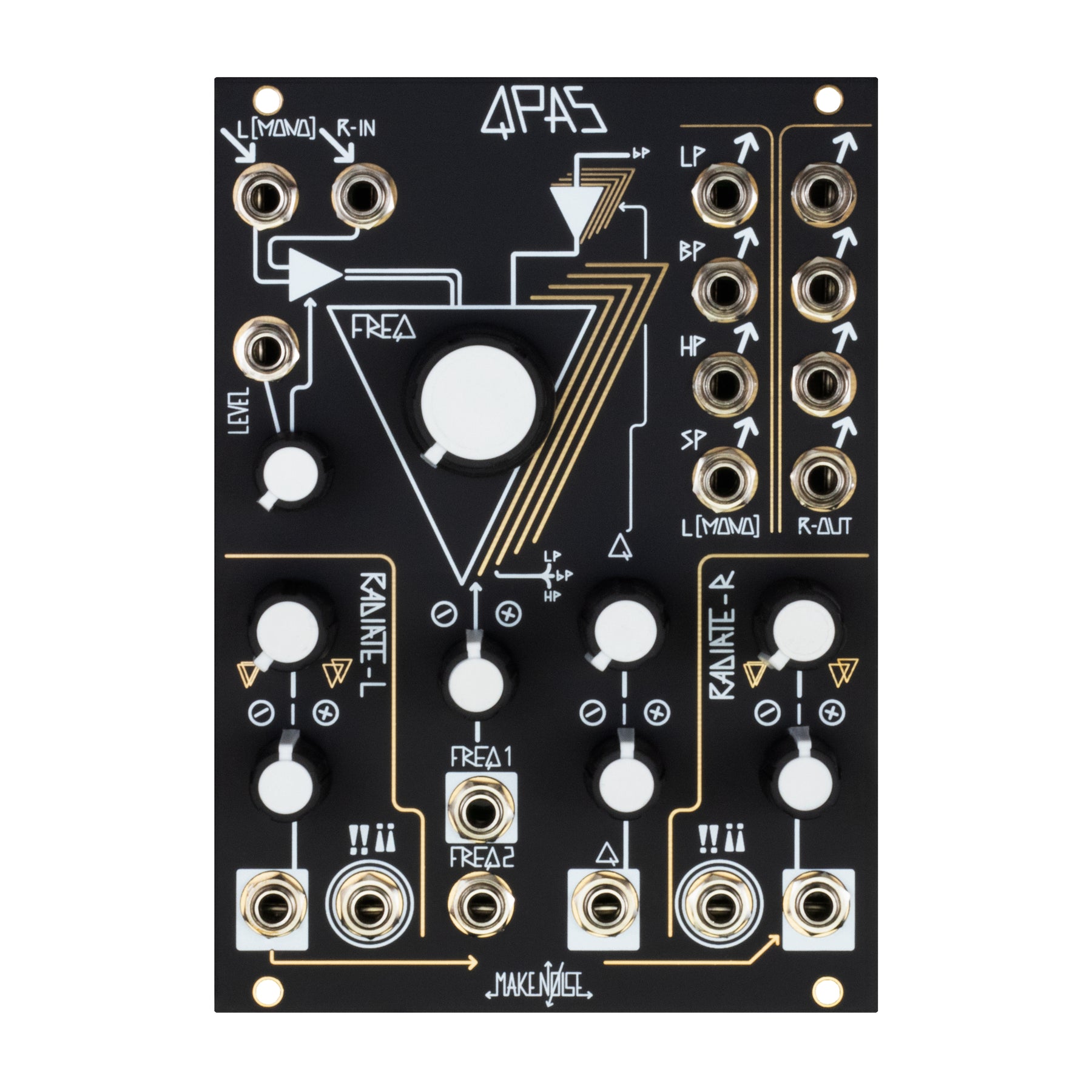

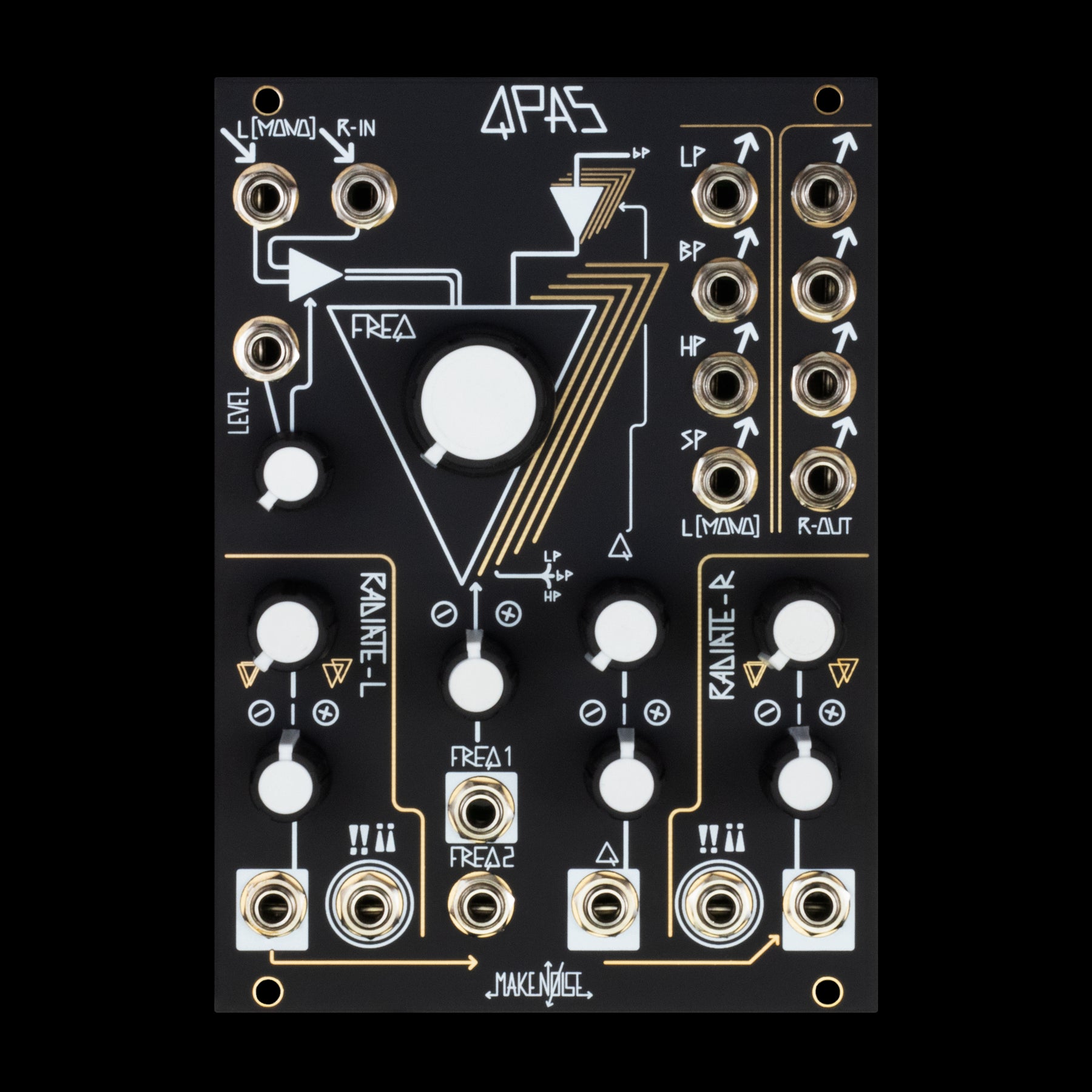

The Quad Peak Animation System combines the auditory enveloping of stereo spaced peaks with the animation of two or more peaks in a single channel dancing around each other or engaging in primitive vocalizations. QPAS is Quad Core, containing four identical state variable filter cores with a control system powerful enough to guide them in stereo multi-peak operation, but simple enough to encourage system integration rather than domination.
-Quad Core Stereo Analog
-Multi-Peak with clean resonance
-Fast response encourages deep FM
-Radiate spaces stereo image and animates associated channel
-High Q settings are under damped, excitable and ring by gate or trigger
-2 !! modulation inputs aid patch exploration
-Stereo VCA, pre-filter with gain
-Mono to Stereo, Stereo to Mono, Mono to Mono and Stereo to Stereo operations
-Smile Pass filter response unique to QPAS
-Low Pass, Band Pass, High Pass and Smile Pass outputs simultaneously available
166mA +12V, 190mA -12V
18hp
