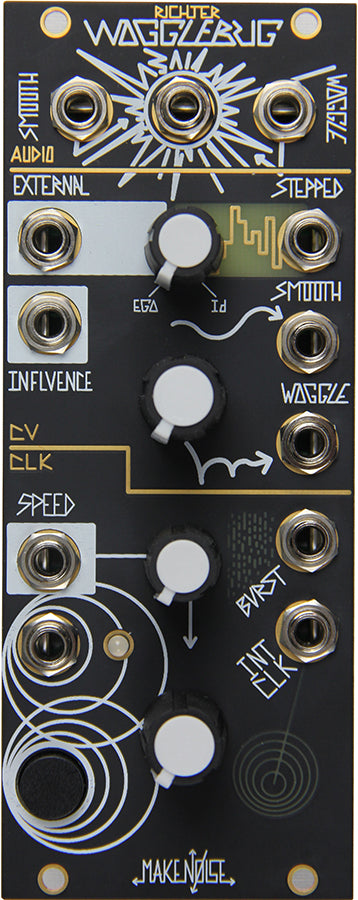

The "WoggleBug" is a random voltage generator, originally designed by Grant Richter of Wiard Synthesizers. It is a continuation of the "smooth" and "stepped" fluctuating random voltage sources pioneered by Don Buchla within the Model 266 "Source of Uncertainty," expanding it to include the other-worldly Woggle CVs (stepped voltages with decaying sinusoids edges). The Wogglebug is a very musical random voltage generator where it is possible to synchronize all random signal to a Master Clock. Guaranteed to unleash your synthesizer's ID MONSTER!

• Complete Complex Random Voltage system, no external modules necessary

• Two VCOs, Phase Lock Loop, Lag Processor, Clock, Burst Generator and Sample & Hold

• Generates 7 Random Signals simultaneously: Smooth VCO, Woggle VCO, Ring Mod, Stepped, Smooth, Woggle, Burst

•  Generates ultra stable, voltage controlled Master Clock

• External inputs for S&H (Heart IN) and Ring-Mod (Influence)

• Disturb button adds performance element

• Wonderful for modulating the Phonogene and DPO



  Specifications

  • Width:
    10hp
  • Max Depth:
    24mm
  • Power:
    50mA@ +12V
    40mA @ -12V
