Sixteen seconds delay vintage eurorack version, inspired by the original looping delay from 1983 .

Device topology is the same as first digital delays from that era, with an all-analog signal path, pre emphasis and de emphasis, compression and expansion , antialias and reconstruction filtering and input output buffering and mixing.

Digital processing is limited only to analog to digital conversion , memory management and storage and digital to analog conversion , all in glorious eight bits .

There’s also an analog triangle Low Frequency Oscillator for modulating delay time/pitch . Maximum delay time has been increased to 32 seconds, there are toggle switches for slow/fast speed/pitch , freeze function and reverse playback.

On board modular inputs for cv control of sample rate , infinite/freeze , reverse , slow/fast , reverse , delay line retrigger for sync and stutter experimentation.

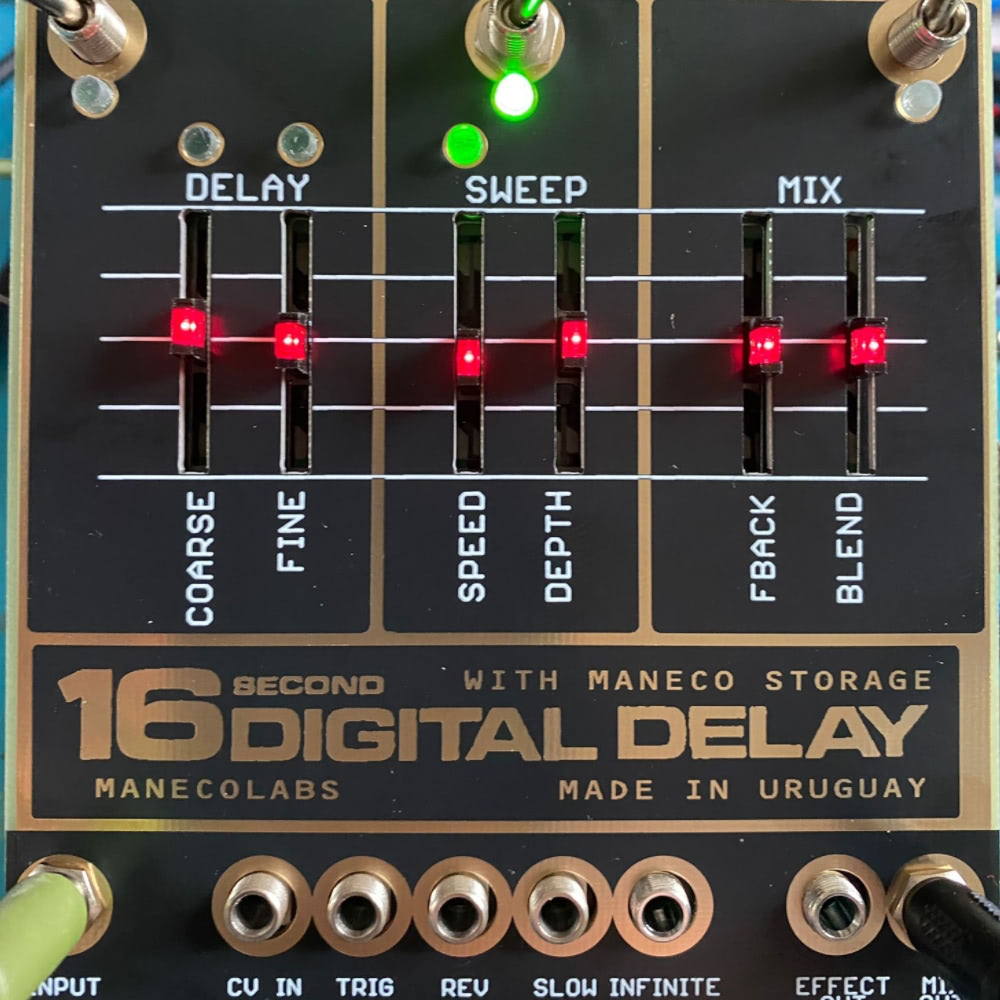

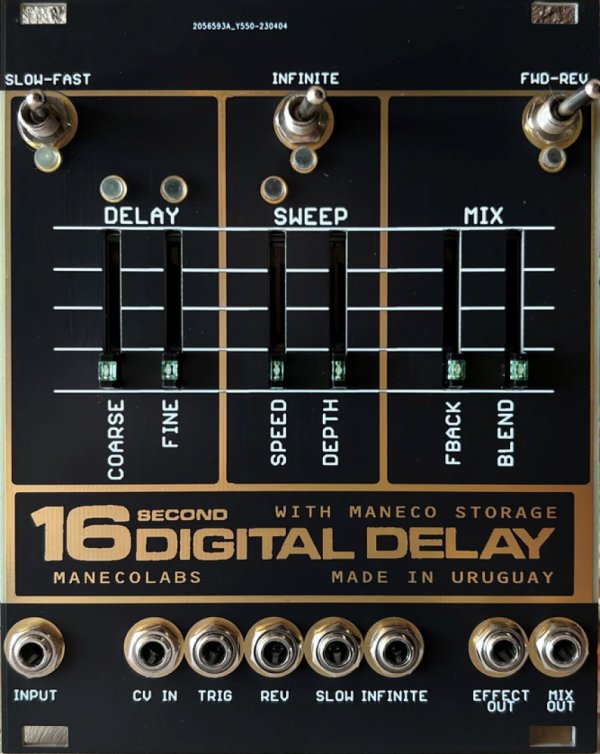

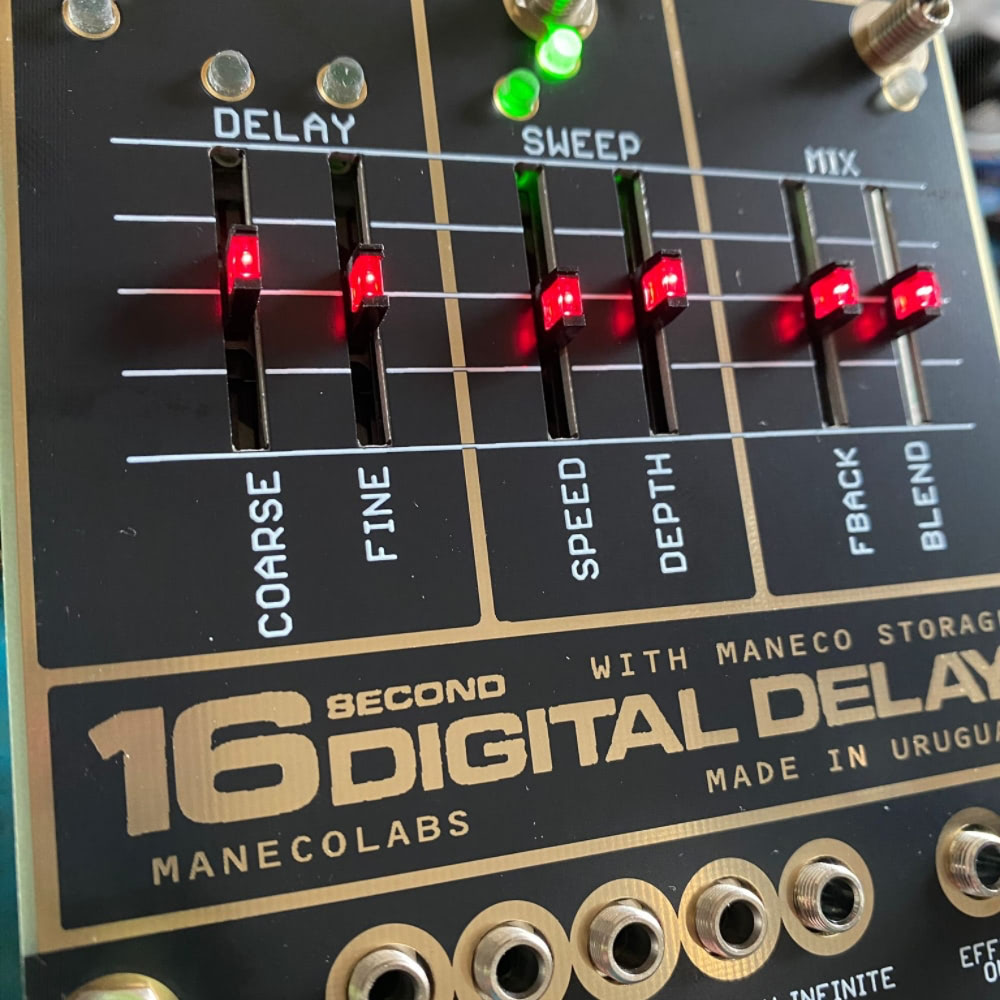

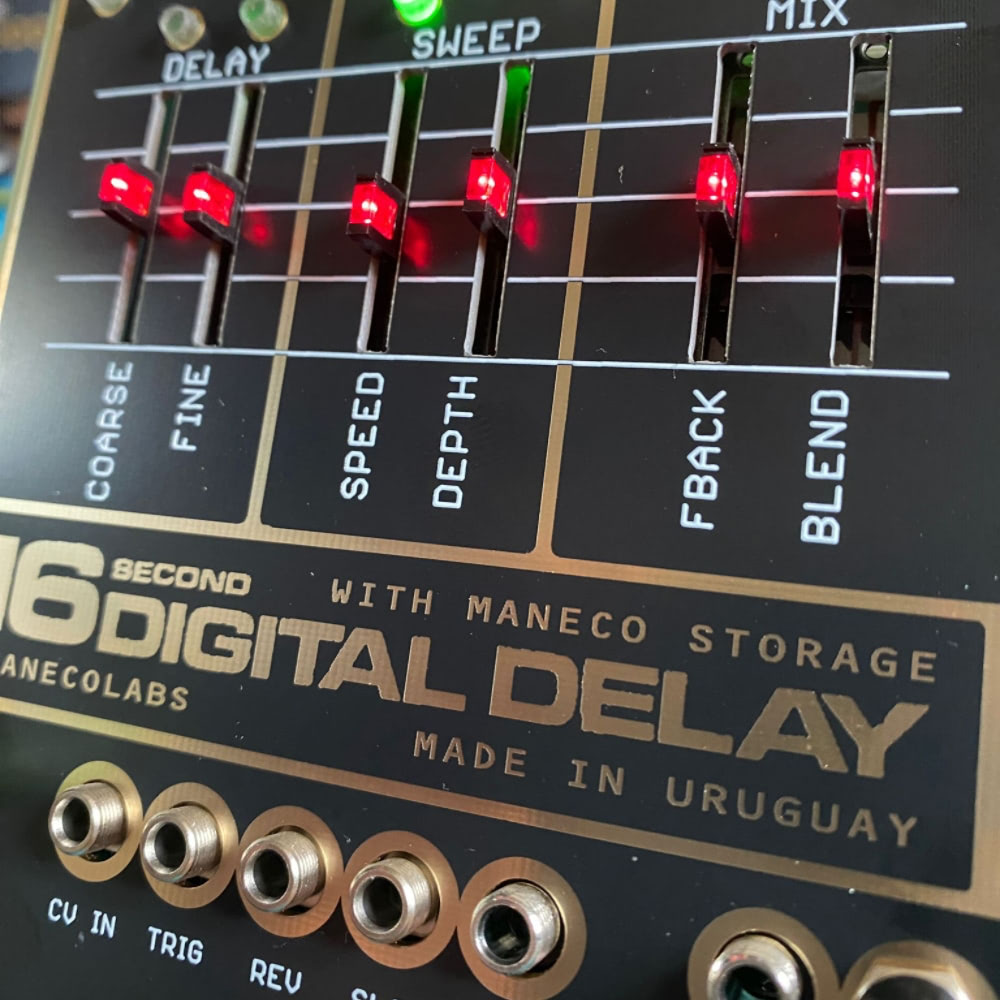

Slider illuminated controls are delay time coarse, delay time fine , sweep rate and depth , feedback and mix.

Proudly hand built in Uruguay, by Manecolabs also creators for the Grone Drone machine Eurorack, Tabletop and Pedal drone generators among others.

Dimensions

20 HP
