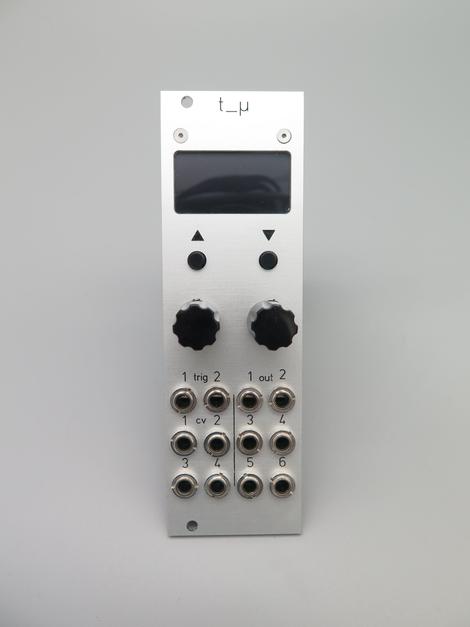

6 x clock generator

• hardware basics, in brief:
  • teensy 3.1/3.2 @ 120MHz, w/ 128x64 OLED
  • trigger-to-output latency < 100us.
  • 2 clock inputs (> 100k input impedance; threshold ~ 2.5V)
  • 4 CV inputs (100k input impedance, -/+ 5V, assignable to (almost) any parameter)
  • 6 clock outputs (5 digital, 1 DAC (12 bit): 10V (GPIO), -/+ 6V (DAC))
  • two encoders w/ switches; 2 tactile buttons.
  • 14HP, ~ 25 mm Depth
  firmware:
  • 7 modes, selectable per channel:
    • trigger sequencer/sequence editor
    • clock division/multiplication
    • LFSR
    • random w/ threshold
    • euclidian
    • logic (AND, OR, XOR, NAND, NOR, XNOR)
    • burst
    • DAC (channel #4 only): random, binary, "Turing", logistic, sequencer/arpeggiator
