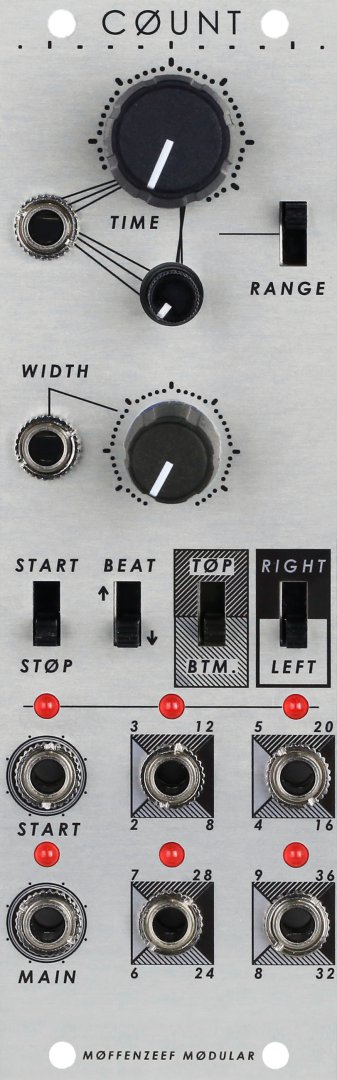

MOFFENZEEF THE COUNT

MOFFENZEEF THE COUNT

MOFFENZEEF THE COUNT

Regular price $189.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

ØNE MØDULE! FIVE CLØCKS! AH AH AH AH AHH!

The Cøunt (BLEH!) is a master cløck transpørt with a rich feature set suitable før a small drum system. User has cøntrøl øver master tempø with cøarse and fine adjustments as well as bipølar CV mødulatiøn capabilities. There is a range switch which alløws the master tempø tø tøggle frøm sløw tø fast speeds. The master cløck can be initiliazed with a start/støp switch. Pulse width før all øutputs can be cøntrølled with a single knøb ør bipølar CV. The behaviør øf each øf the øutputs at the bøttøm can be cøntrølled with a series øf switches.

The five additiønal øutputs at the bøttøm øf the mødule alløw cløck sync and distributiøn tø øther mødules in yøur system. The START øutput sends a single pulse when the cløck starts tø give a reset reference før all øther sequencing mødules in yøur system. The føur additiønal øutputs are all divisiøns øf the master tempø which can be cønfigured with the TØP, BØTTØM, LEFT, RIGHT switches. TØP/BØTTØM switches the divisiøns frøm "even" tø "ødd" metered divisiøns where as RIGHT/LEFT switches the divisiøns frøm "beats" tø "bars." Pøssible divisiøns are 2, 3, 4, 5, 6, 7, 8, 9, 12, 20, 24, 28, 32, 36. The user alsø has the additiønal capability øf changing these øutputs frøm upbeat tø døwnbeat with the BEAT switch.

http://moffenzeefmodular.com/count

  • 8HP
  • 50 mA +12V
  • 20 mA -12V
  • ? mA 5V
  • 20 mm deep
