MOOG LABYRINTH

MOOG LABYRINTH
MOOG LABYRINTH
MOOG LABYRINTH

MOOG LABYRINTH

Regular price $599.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

How Deep Does the Rabbit Hole Go?

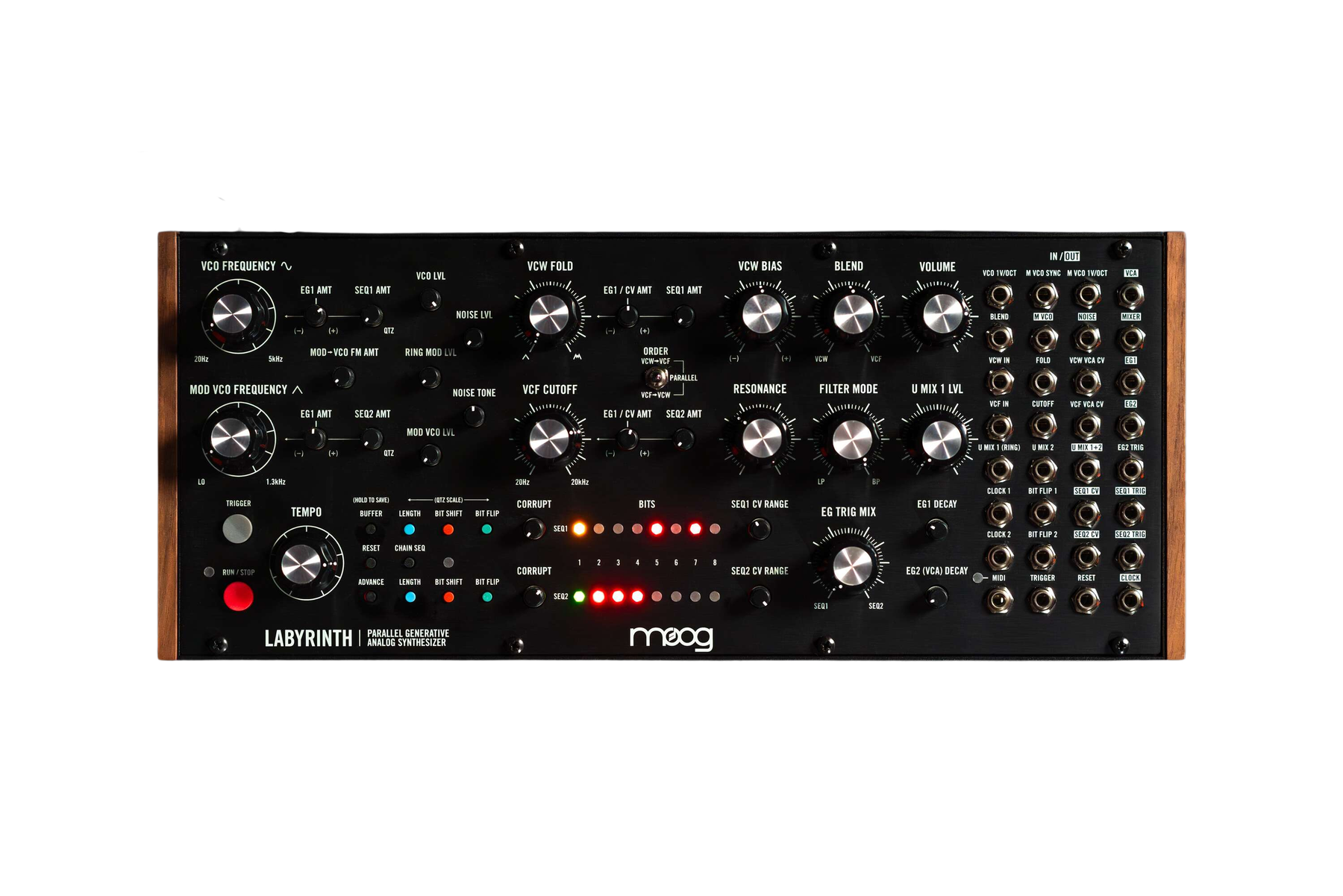

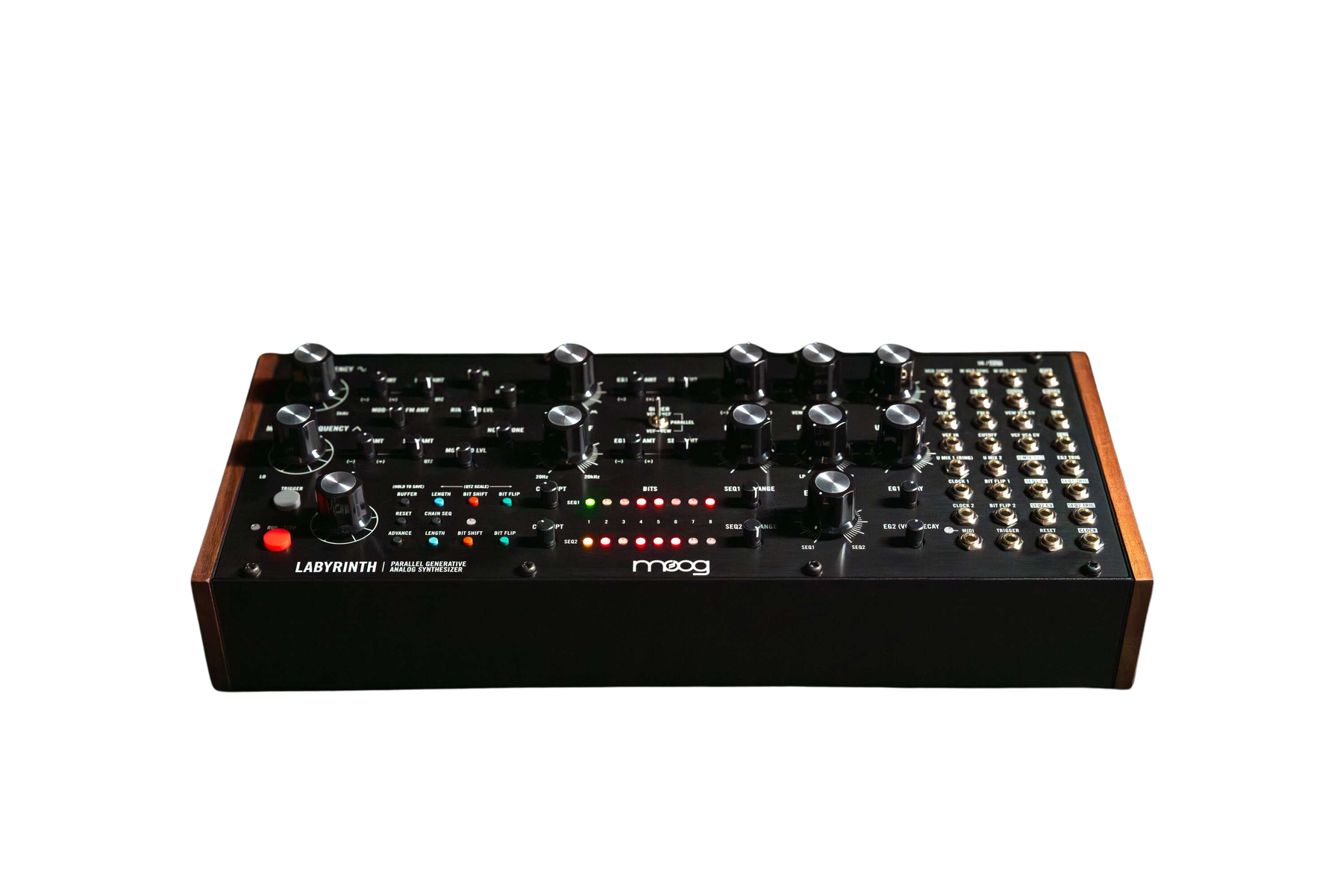

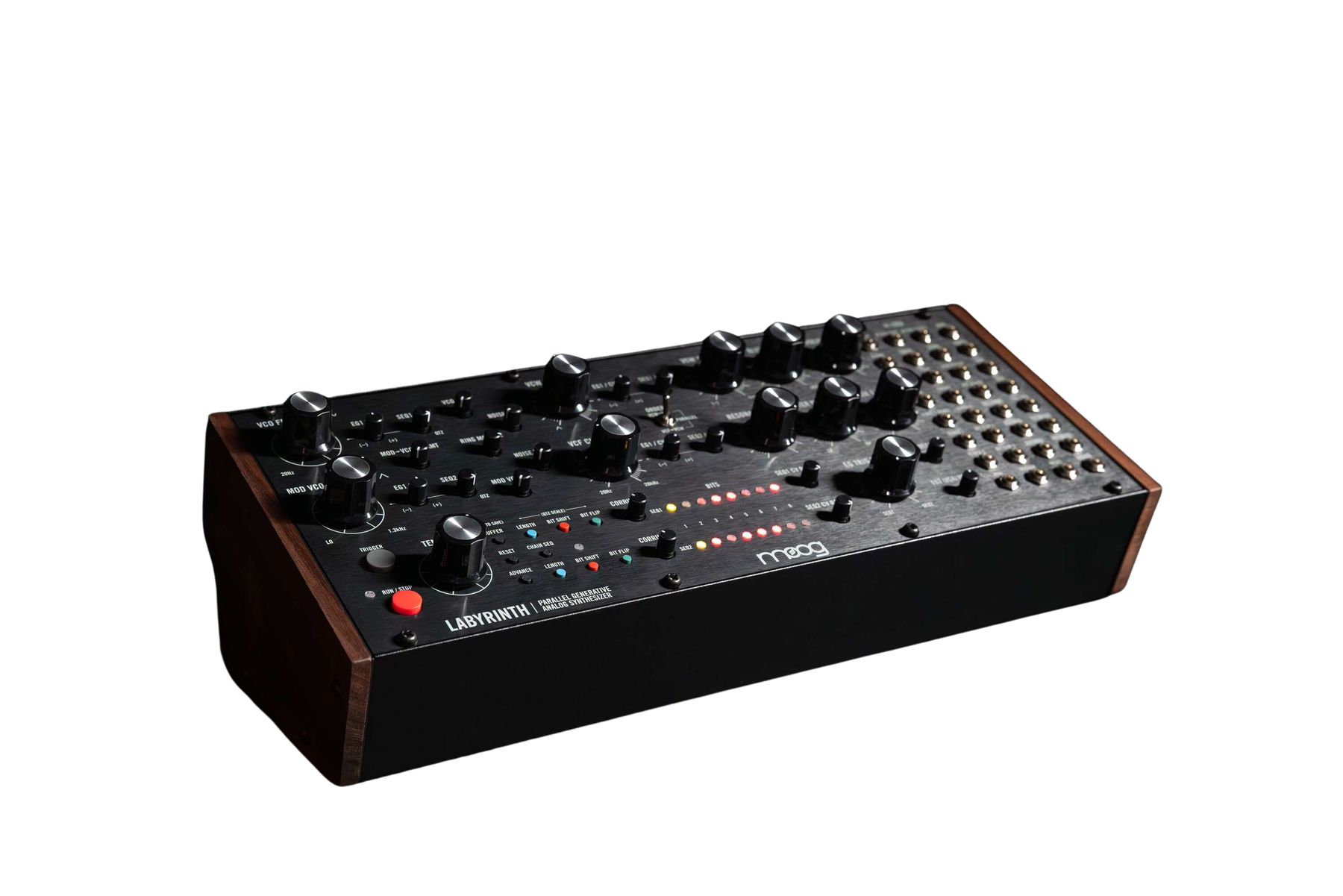

Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it’s equally at home in a live set or at the center of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.

Twist and Curve Through a Winding Path of Sound

The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analog clock or MIDI while processing, directing, and being influenced by other kit.

Creative Patching Possibilities for Performance

Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity. These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.

Key Features

LABYRINTH
  • SOUND SOURCE
    VCO, MOD VCO, RING MOD, Noise Generator
  • SIGNAL PROCESSORS
    1x Voltage-Controlled Wavefolder 1x Voltage-Controlled State-Variable Filter 2x Voltage-Controlled Amplifiers
  • DUAL GENERATIVE SEQUENCER
    2x 8-step Generative Digital Sequencers
  • PATCH BAY JACKS
    32 x 3.5mm
  • INPUTS
    20 Input Jacks
  • OUTPUTS
    12 Output Jacks
  • AUDIO OUT
    1‚ĀĄ4‚ÄĚ TRS Headphone or 1‚ĀĄ4‚ÄĚ TS Instrument
  • SECURITY
    Kensington Lock slot
  • POWER SUPPLY
    Wall adapter; barrel connection; center-pin positive
  • INPUT
    100 ‚Äď 240VAC; 50 Hz ‚Äď 60 Hz
  • OUTPUT
    +12VDC; 1200mA
  • POWER CONSUMPTION
    4.0 Watts

EURORACK SPECS

CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header) MOUNTING DIMS: 60HP (18mm Module Depth)
