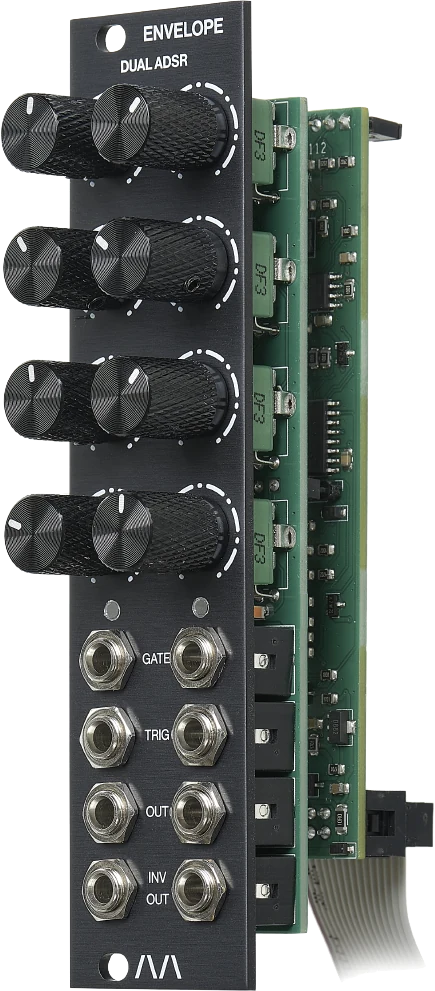

MORPHOR ADSR DUAL ENVELOPE GENERATOR

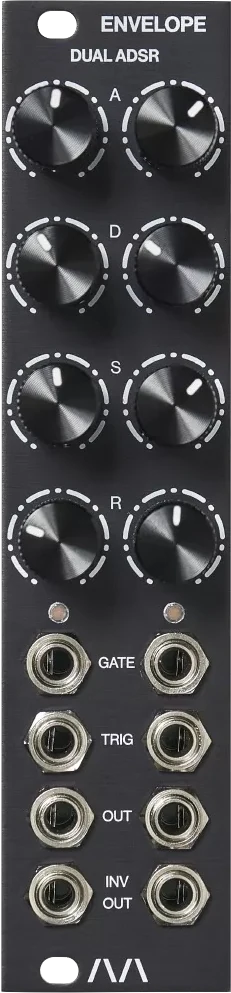

The Morphor Envelope - Dual ADSR is a slim (6 HP) dual envelope generator. Each channel features standard ADSR (Attack, Decay, Sustain, Release) analog circuitry, providing the classic, rich envelope shaping tools essential for any modular enthusiast. It features separate control knobs for the attack, decay, sustain and release parameters, two independent channels for versatile envelope shaping and each channel comes equipped with gate, re-trigger, output, and an inverted output.

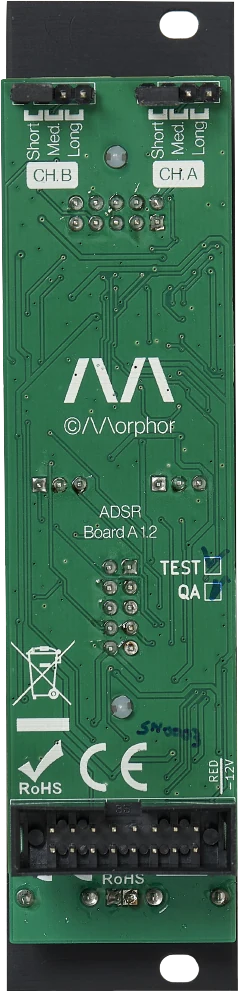

On the back of the module you can find tiny switches for each channel to change the overall length of the complete envelope:
Short: 5 ms - 30 s
Med: 25 ms - 60 s
Long: 60 ms - 200 s (=3.3 min)

Features

• 100% analog
• Dual channel
• Attack length control
• Decay length control
• Sustain level control
• Release length control
• Inverted output
• Re-trigger

Specifications
