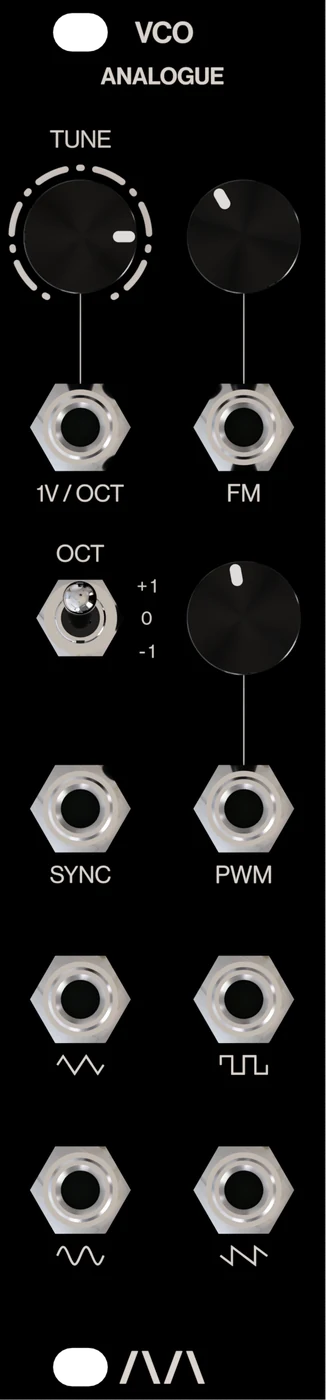

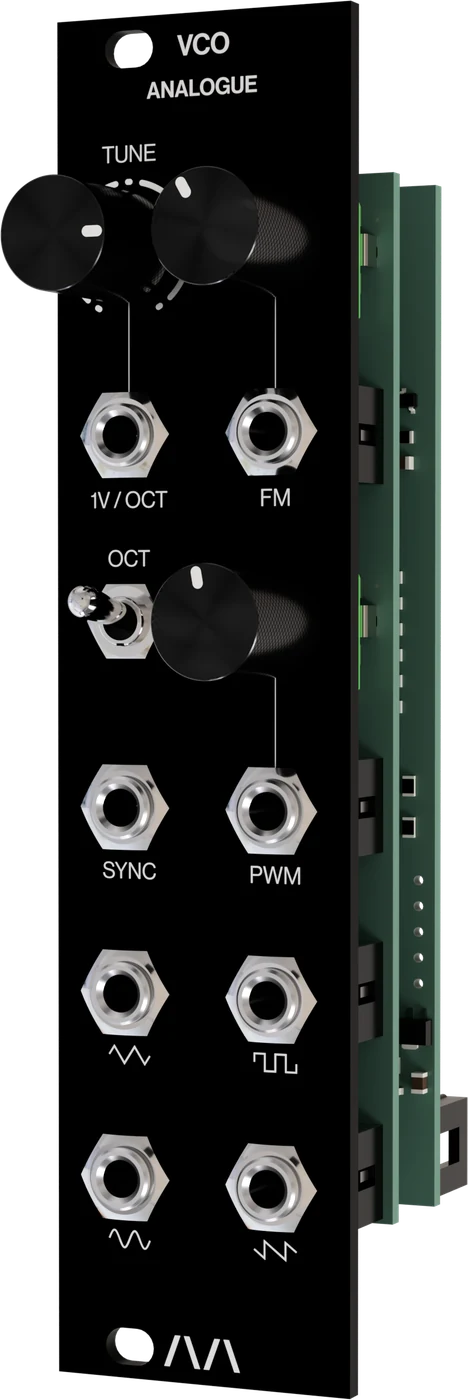

The Morphor VCO is a compact yet powerful analog oscillator designed to be the foundation of your Eurorack system. Built around the legendary 3340 architecture, it delivers the clean, precise waveforms that have shaped countless classic synth sounds.
Despite its slim 6HP footprint, the Morphor VCO packs a versatile feature set. It offers four dedicated outputs—square, saw, triangle, and sine—providing a rich palette of tones. Pitch control is precise and stable across the entire audible range, with fine-tuning via a tune knob, CV input, and an attenuated FM control for added modulation flexibility.
A three-position octave switch, hard sync input, and pulse-width modulation (PWM) round out the module, making it a reliable and expressive sound source for any patch. Whether you’re crafting deep basses, soaring leads, or complex FM textures, the Morphor VCO is ready to deliver.
Analogue
The Morphor VCO is a compact yet powerful analog oscillator designed to be the foundation of your Eurorack system. Built around the legendary 3340 architecture, it delivers the clean, precise waveforms that have shaped countless classic synth sounds.
Despite its slim 6HP footprint, the Morphor VCO packs a versatile feature set. It offers four dedicated outputs—square, saw, triangle, and sine—providing a rich palette of tones. Pitch control is precise and stable across the entire audible range, with fine-tuning via a tune knob, CV input, and an attenuated FM control for added modulation flexibility.
A three-position octave switch, hard sync input, and pulse-width modulation (PWM) round out the module, making it a reliable and expressive sound source for any patch. Whether you’re crafting deep basses, soaring leads, or complex FM textures, the Morphor VCO is ready to deliver.
Features
- 100% analog
- 4 dedicated outputs
- Trangle/Sine/Square/Saw
- 3-position octave switch
- FM
- PWM
- Hard-Sync
Specifications
| Panel width |
6 HP |
| Panel height |
3 U |
| Module depth |
25 mm |
| Dimensions |
128.5 × 30.3 × 25 mm |
| Mass |
111 g |
| Power socket |
16-pin |
| Current draw +12 V |
26 mA |
| Current draw −12 V |
23 mA |
| Current draw +5 V |
0 mA |
