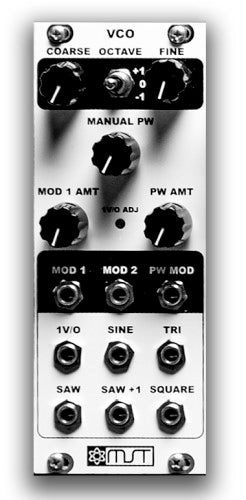

MST VCO

The MST VCO is a 100% analog 6-octave 1V/O trackable precision oscillator with full pulse width and modulation controls and with 5 waveform outputs.

Features:

• Coarse and Fine tuning controls
• Manual and CV controlled PWM (pulse width modulation)
• 3-octave selector switch
• 2 Modulation inputs; MOD1 can be attenuated with MOD 1 AMT knob
• Pulse Width Modulation input which can be attenuated
• 1V/O adjustment trimmer for making adjustments
• 1V/O CV input jack
• 5 waveform outputs (can be used simultaneously): Sine, Triangle, Sawtooth, Sawtooth +1 octave, Square
• Frequency range: 2Hz-14.39 Khz (Sawtooth +1: 28.77 Khz)

Specifications:

• Current draw: 45.9mA on +12V; 46.3mA on -12V
• Width: 10HP
• Module depth: 1 7/16 inches (3.7 cm)
