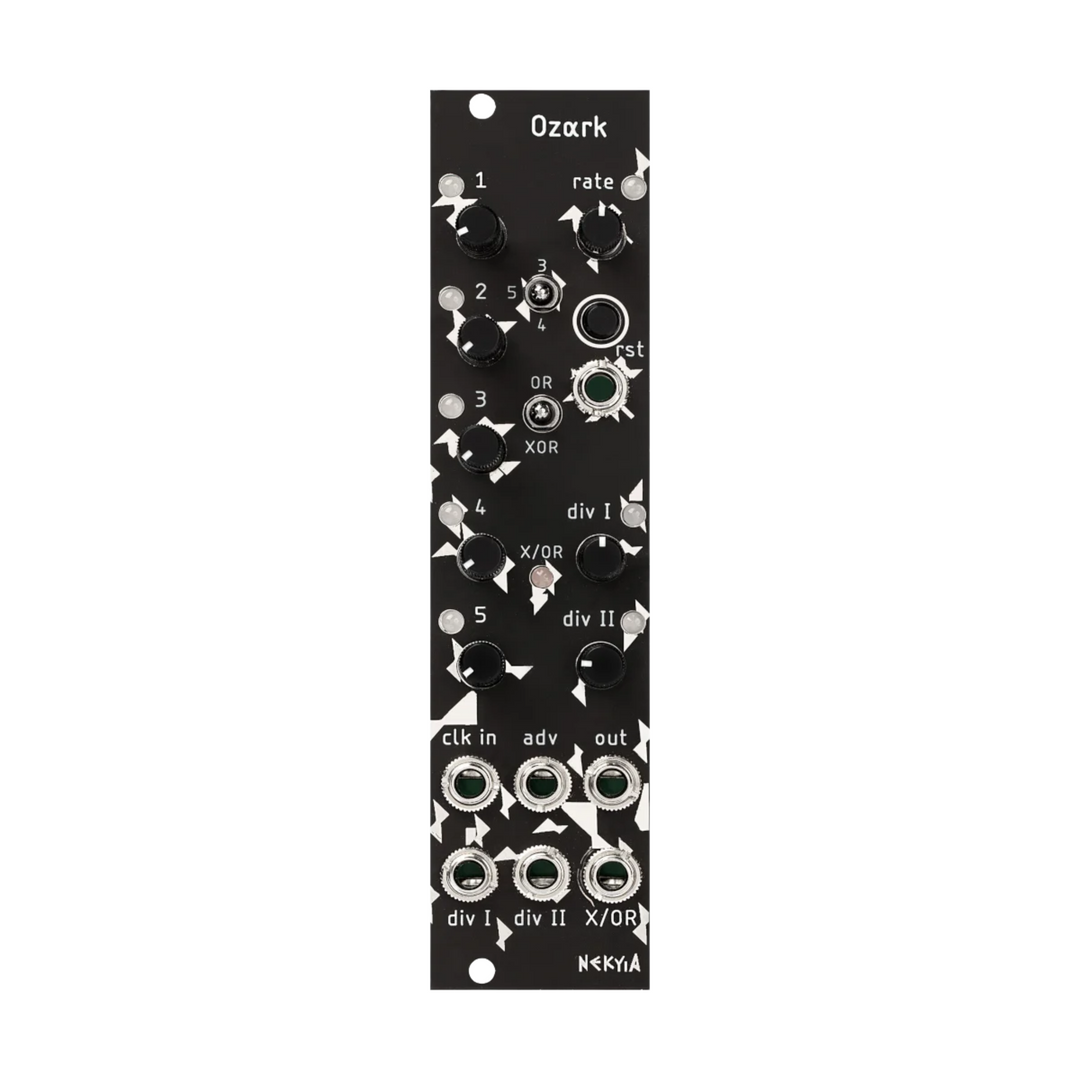

Ozark is a compact CV and Trigger Sequencer with nifty features aiming to instantly achieve musical polyrhythms! It consists of an. Analog CV Sequencer with 3, 4 or 5 steps and a Clock generator (internal or external) with two Clock Dividers that feed a XOR/OR logic circuit which runs the CV Sequencer. The Advance input can be used to progress the CV Sequencer with external triggers in conjunction with XOR/OR triggers or it allows the CV Sequencer and the Clock Dividers/Logic circuit to work independently by setting the XOR/OR switch to middle position (Adv Input only). The two Clock Dividers and the XOR/OR logic offer individual Outputs which are useful to trigger other modules (e.g envelopes) in order to create rhythmically dependent patches! Additional rhythmic variations can be achieved by the Reset CV input or its manual Reset button. Ozark will be your secret tool to easily perform musical complex polyrhythms!
– 3/4/5 Step Sequencer
– 3 Trigger Outputs (2 Dividers and XOR/OR Logic) and 1 CV Output
– Reset Input plus manual Reset button
– Internal/External Clock
– Advance Input for external triggers or to use CV Sequencer and Dividers/Logic independently
Tech specs:
6hp
Depth: 25mm, Skiff Friendly!
Power: 30mA @+12V / 10mA @-12V
