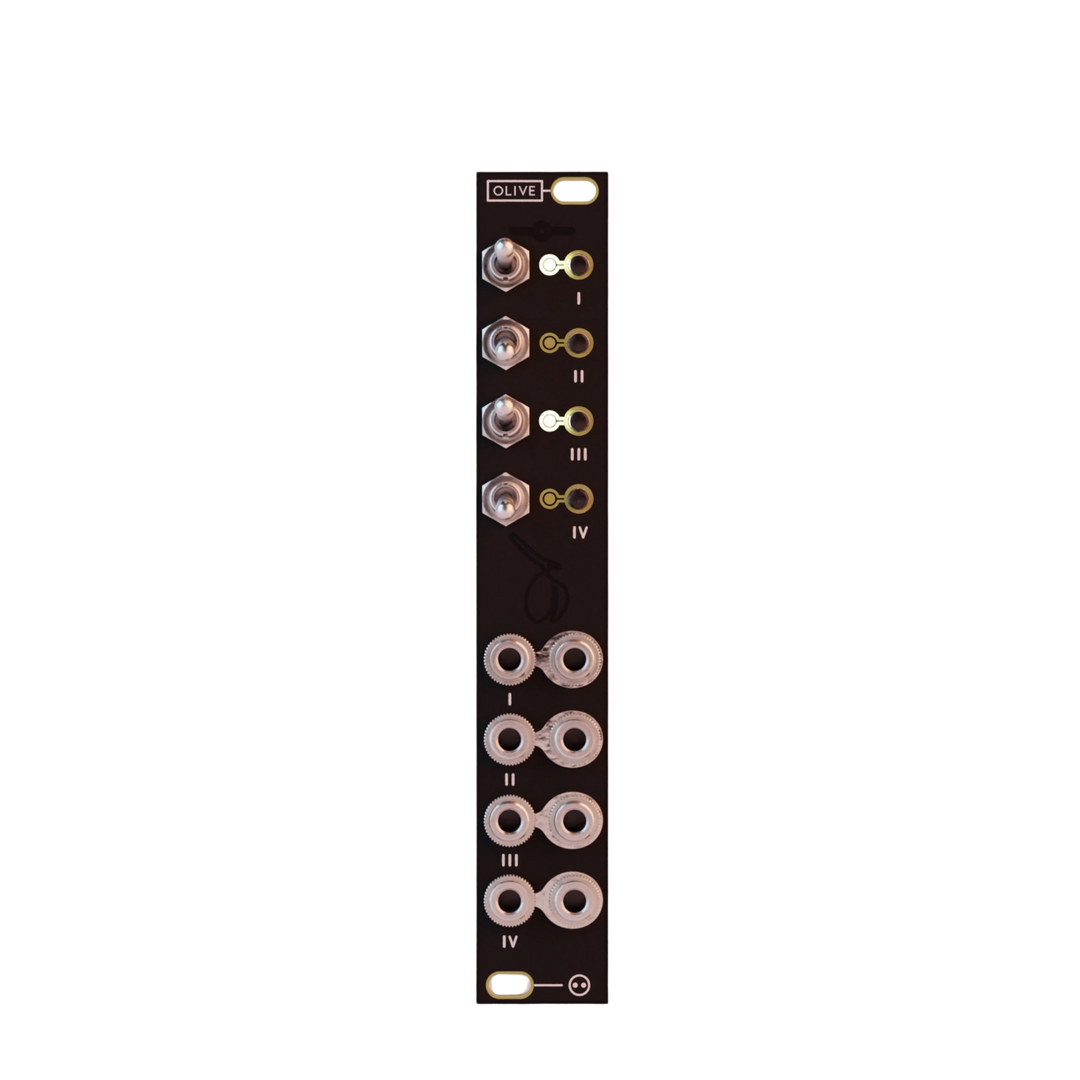

Olive – Performative Quad Gate/Mute

The NOH Modular Olive is a quad performance gate module. It lets the input through the output only when the respective push buttons are pressed, and it can be latching or momentary depending on which mode is selected with the toggle switch. LEDs will light up to indicate when the signal comes through. When nothing is connected to an input, the module will automatically input +5V instead.

Height – 3U

Width – 4HP

Depth – 27mm

Power – 10mA(+12V) // 10mA(-12V)
