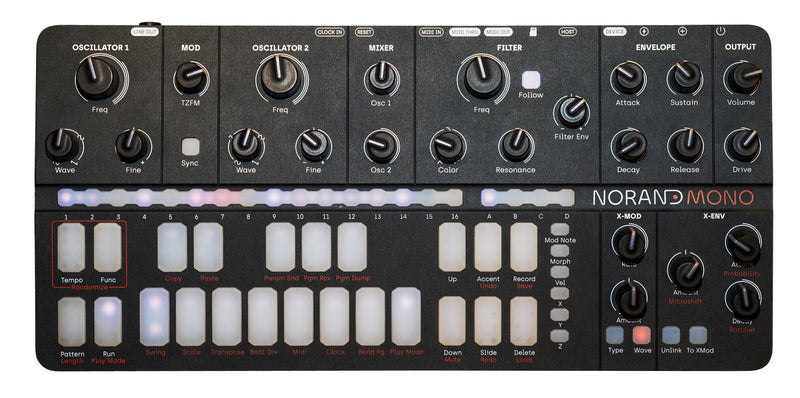

NORAND MONO MK2 : OPEN BOX

NORAND MONO MK2 : OPEN BOX

NORAND MONO MK2 : OPEN BOX

Regular price $799.00 Sale price $699.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

PUSHING THE ENVELOPE WITH MK2

Mono was always meant to be the ultimate monophonic synthesiser. After 3 years of existence and hundreds of exchanges with our vibrant community of users, it felt logical to work on a new hardware version, capable of handling the many new features we have in mind.

Analog overdrive and refined analog path

MK2 implement 4 years of internal update over our appraised discrete analog path, with the addition of a custom soft overdrive circuit at the output, multiplying mono’s sonic abilities.

Expressive 3D Keyboard

MK2 introduces 3D sensors for the mini-keyboard, allowing for expressive controls over each notes. Velocity, aftertouch, pitch bend, and vertical modulation are possible directly on the keyboard.

Continuous sequencer strip

3D sensors are also used for the sequencer and page keys, which allow for dozens of new musical features, like live play-head, multi-pattern morphing, and precise control over the patterns.

High resolution automation

MK2 uses a 1024 PPQN sequencer system, which allow automations to be recorded at a very-high definition with the knobs and keys. The 3D sequencer strip allow for precise creation and edition of these automation using curve mode.

Full machined alluminum body

Your voice has been heard! MK2 was redesigned with a full machined aluminium body. A lot of attention was given to every details.

Tons of interface improvement

A full row of button has been added to reflect the improvement made on the software over the years. All the LEDs are now RGB, with smart color coding for a clearer interface.

CONTEXTUAL
MODULATION

MONO introduces contextual modulation, a unique modulation system that gives youfull control over every parameter. Each has its own envelopeand audio-frequency modulator.

SIMPLE YET POWERFUL SEQUENCER

Mono's sequencer does it all - starting with a straight-forward,user-friendly interface that can build complex ratchet phrases with parameter automations. With step-per-function capability, it's possible to write a track's core percussion as well as a bass or lead line simultaneously… All on a mono synth.



Technical Specifications


Synth Voice Features



Fully analog signal path 2x analog oscillators

Continuously variable waveform

Thru-zero frequency modulation

Hard-sync

Filter overdrive 1x 3-pole multi-mode filter

Continuously variable filter color 1x Main ADSR envelope

Soft overdrive


Modulation Features

Controls

13x dedicated AD envelopes 20x dedicated modulator

Modulator

5 waveforms Type settings : Free/Synced/Audio-Rate Audio-Rate anti-aliased, quantized to OSC1 Free from 0.1 to 80 seconds

Envelope

Attack-Decay segment from 10us to 20s


Sequencer

Up to 64 step per pattern 1024PPQN automations Individual length/scale/beat-division per pattern Individual microshift/ratchet/probability per step

Swing/Slide/Accent

Copy/paste anything

Undo/Redo anything

Mod Note mode

Fast, clock independent project Load/Save


Randomizer

Quantized note randomizer

Ranged parameter automation randomizer

Step randomizer

Mod note randomizer

Microshift/Probability/Ratchet randomizer


Storage

Unlimited projects in SD card 64 patterns with patch memory per projects

Unlimited parameter automation per pattern 40 mod note per projects


Hardware

23x transilluminated RGB potentiometer

24x illuminated silent mechanical switch

23x 808-style switch

MIDI In/Out/Thru

1x 1/4” balanced main audio out jack

2x 1/8” eurorack Clock/Reset input

Flash-EEPROM upgradable OS

MIDI Device USB-C port

MIDI Host USB-C port


Outputs

Stereo audio outputs

Output level: +15dBu maximum Output impedance: 200 Ohm Headphone up to 80 Ohm


Electrical Specification

Unit consumption: 7W typical Low power mode for USB supply High-quality power supply included

Recommanded power supply: 5V DC, 2A


Physical Specifications

Machined aluminum front panel

Machined aluminum back panel

Dimmensions: W350xD150xH35 Weight: approx. 1.6kg


Warranty

2-year Norand warranty
