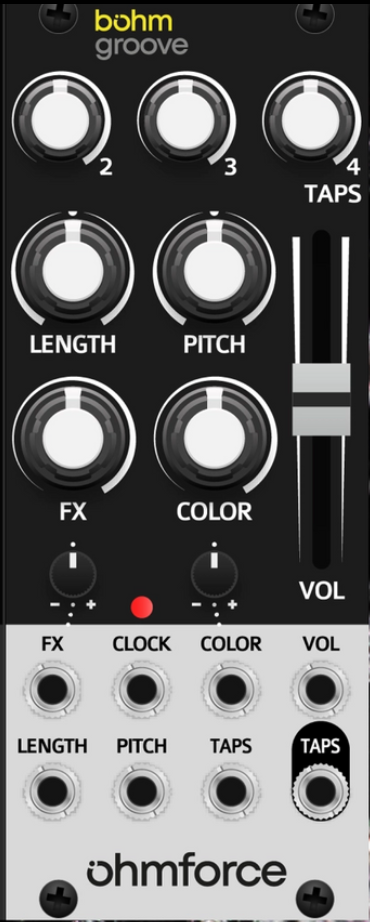

Name: OHM FORCE BOHM GROOVE
Brand: OHM FORCE
Price: 167.0 USD
Availability: InStock

Price

Free shipping over $99 to most states

Easy returns

Secure payments

Shipping calculated at checkout.

Right expander

Craft dynamic percussive textures with ease. Sync a secondary kick to clock divisions and fine-tune every tap’s level, pitch, and FX using intuitive controls.

Pattern & Dynamics

CLOCK - Triggers the secondary kick voice in perfect sync with your system clock.

TAPS 2/3/4 - Set individual volume levels for each sixteenth-note subdivision.

VOL - Balances the overall level of your groove layer against the main kick.

Shaping & Effects

LENGTH & PITCH - Adjust the decay time and relative tuning of each tap for rhythmic variation.

COLOR - Sculpt the harmonic texture of the groove—warm thuds to bright accents.

FX - Choose and dial in onboard processing (filters, distortion, etc.) to add character to your taps.

Specifications:

General

Width: Groove 10HP
Height: 3U
Depth (including connectors): Groove 26mm

Power Consumption

+12V: Groove 20mA
-12V: Groove 10mA
+5V: 0mA (unused)

Audio

Sample rate: 48kHz
Hardware audio converters bit-depth: 24-bit
Internal processing bit-depth: 32-bit floating point
True Stereo Audio
High fidelity Texas Instruments Burr-Brown audio converters
Latency: 0.33ms

Controls

Knobs resolution: 16-bit (65536 distinct values)

CV Inputs

Voltage: ±5V (0..5V compatible)
Resolution: 16-bit (65536 distinct values)

Memory

Current model, last model variations for up to 12 models
32 programs of 16 steps each
Systems settings

SD Port

Type: microSD, SDHC class 10 or greater
Capacity: Up to 32GB
Format: Only FAT32 with MBR (Master Boot Record) is supported

The SD port is used to update the module firmware, store the Bohm kick models as well as user-provided wavetables and samples.

Documentation

→ User manual

Firmware update

→ Link
