OHM FORCE BOHM PERFORMER

OHM FORCE BOHM PERFORMER

OHM FORCE BOHM PERFORMER

Regular price $119.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
Shipping calculated at checkout.

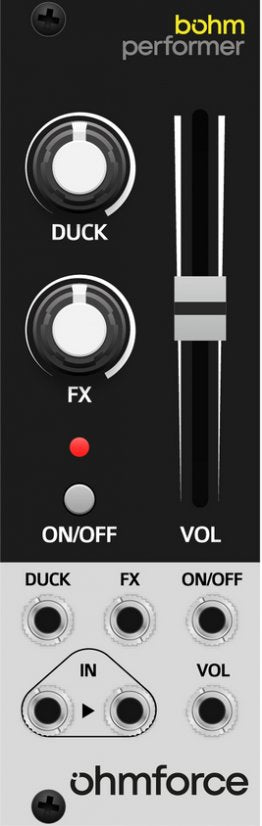

Left expander

Bohm:Performer blends dual kick engines with external stereo input, offering precise side-chain ducking, intuitive one-touch DJ effects (filters, beat/slip rolls), and full CV assignability—empowering live performers with seamless, dynamic mix control.

One-Touch Performance Effects

FX - Selects and controls DJ-style processing—LP/HP filters, beat rolls, slip rolls—synced to your kick hits.

Routes effects to the kick only, the external input only, or both simultaneously.

ON/OFF - Toggles your chosen effect in perfect sync with each kick trigger.

Mix & Side-chain

IN - Feeds external stereo audio into the module for integrated processing with your kicks.

VOL - Balances the level of your dual kick voices against the incoming audio.

DUCK - Adjusts sidechain compression depth, letting your kicks cut through the mix.

Specifications:

General

  • Width: Performer 8HP
  • Height: 3U
  • Depth (including connectors): Performer 26mm

Power Consumption

  • +12V: Performer 10mA
  • -12V: Performer 5mA
  • +5V: 0mA (unused)

Audio

  • Sample rate: 48kHz
  • Hardware audio converters bit-depth: 24-bit
  • Internal processing bit-depth: 32-bit floating point
  • True Stereo Audio
  • High fidelity Texas Instruments Burr-Brown audio converters
  • Latency: 0.33ms

Controls

  • Knobs resolution: 16-bit (65536 distinct values)

CV Inputs

  • Voltage: ±5V (0..5V compatible)
  • Resolution: 16-bit (65536 distinct values)

Memory

  • Current model, last model variations for up to 12 models
  • 32 programs of 16 steps each
  • Systems settings

SD Port

  • Type: microSD, SDHC class 10 or greater
  • Capacity: Up to 32GB
  • Format: Only FAT32 with MBR (Master Boot Record) is supported

The SD port is used to update the module firmware, store the Bohm kick models as well as user-provided wavetables and samples.

Documentation

Firmware update
