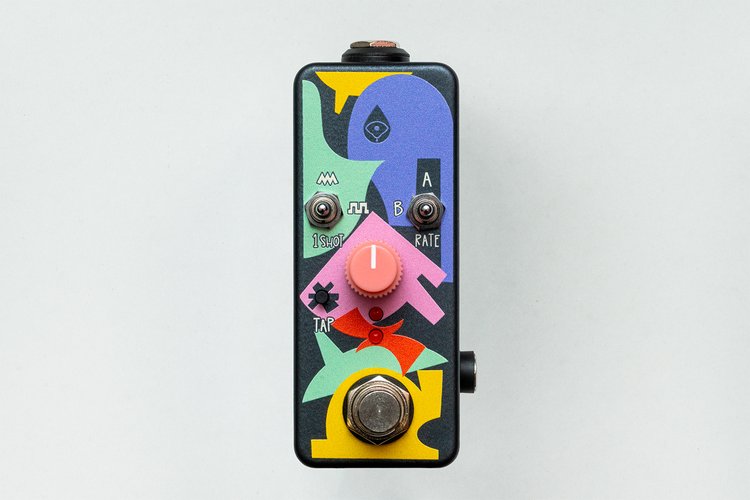

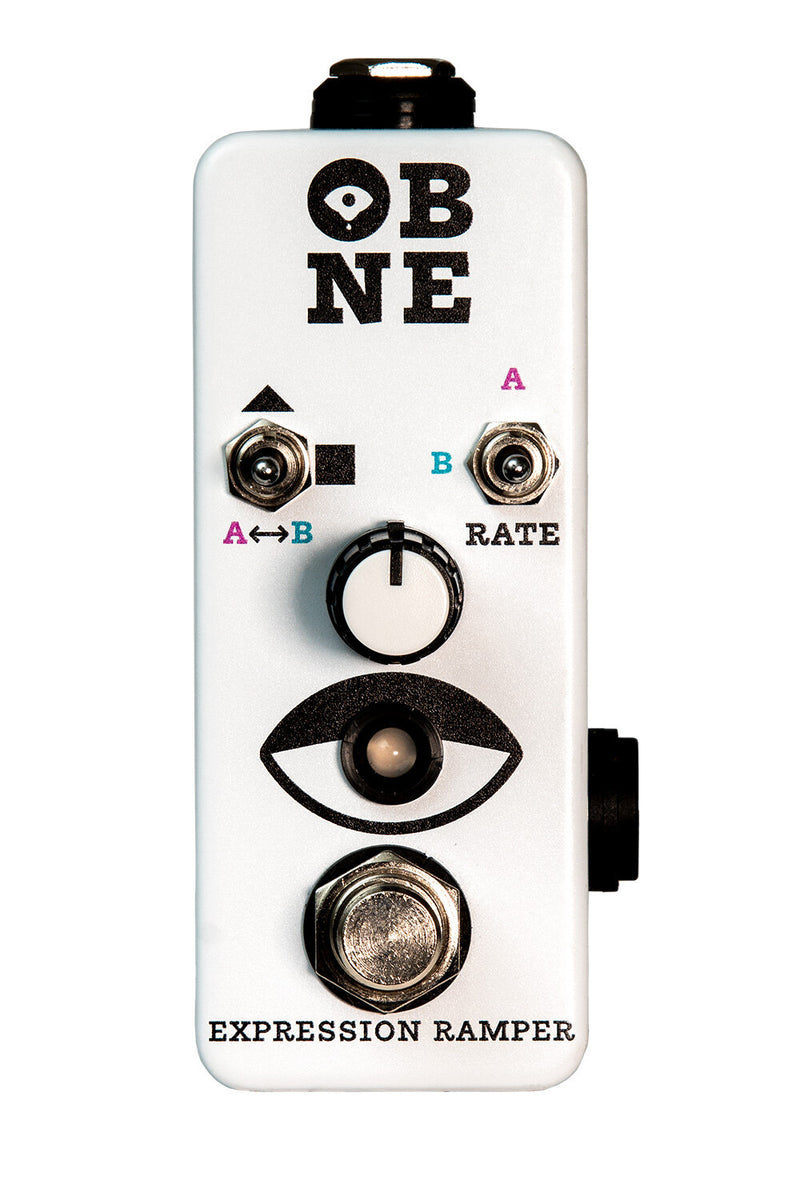

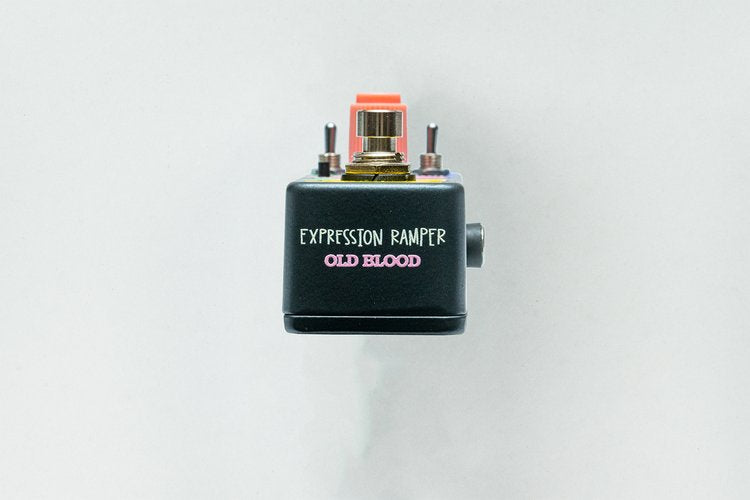

Expression Ramper allows you to pick two expression settings and move between them, either in one motion or as a continuous LFO activated by a footswitch. The mini enclosure size takes up minimal space while creating new sounds out of any pedal with an expression input.
Expression Ramper features:
Triangle, square, and one-shot shapes for movement between A and B expression settings
Rate control to set the speed of movement
Footswitch activated motion to create modulated effects on the fly or ramp between two presets
Configurable output for TRS, TRS reverse polarity, or TS expression inputs
LED to indicate which setting is currently active
Requires 9V 2.1mm negative center-pin power adapter (not included).
mA Draw: 10
NOTE: Expression Ramper is initially configured for TRS active at Tip for compatibility with Old Blood devices, but can be configured for TRS active at Tip, TRS active at Ring, and TS using the internal jumpers. By default, it ships with a 50K digital potentiometer. This potentiometer is socketed and can be replaced with 10K and 100K values if needed (part code MCP41010-I/P and part code MCP41100-I/P respectively).
