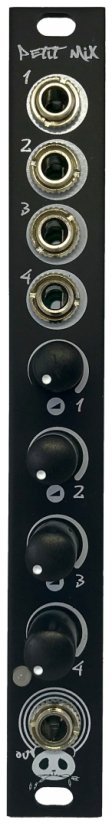

PATCHING PANDA PETIT MIX

The Petit Mix is a 3hp Eurorack mixer module with 4 inputs. Each input has its own level control and all inputs are DC coupled to allow for CV mixing as well as audio. There is a bi-colour led on the Frontpanel to indicate signal polarity for active channels.

3hp Mixer Module

DC coupled

4 inputs

Low noise

Bi-colour led showing positive (green) and negative (red) voltages

Power consumption 7mA@+12V, 8mA@-12V

Skiff friendly
