Massive Sonic Landscape

Space and power are no longer a problem. A stunning, studio sized desktop enclosure, the Structure EP-420 eurorack case offers a massive 420hp of space split into three rows paired with a combined 17 amps of industry leading, clean, quiet power.

EP-420 Power

• 6 Amps of Clean, Filtered +12v Power
• 6 Amps of Clean, Filtered -12v Power
• 5 Amps of Clean, Filtered +5v Power
• 60 Keyed Eurorack Power Headers
• External Power Switch with LED
• Fused Power Protection
• Universal IEC Power Connector
• Discrete EMI filter per power rail (+12v, +5v, -12v)
• Low Output Ripple & Noise
• UL & CE Approved, RoHS Compliant
• Over Load and Short Circuit Protection
• Line Regulation (Full Load): ≤0.5%
• Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery

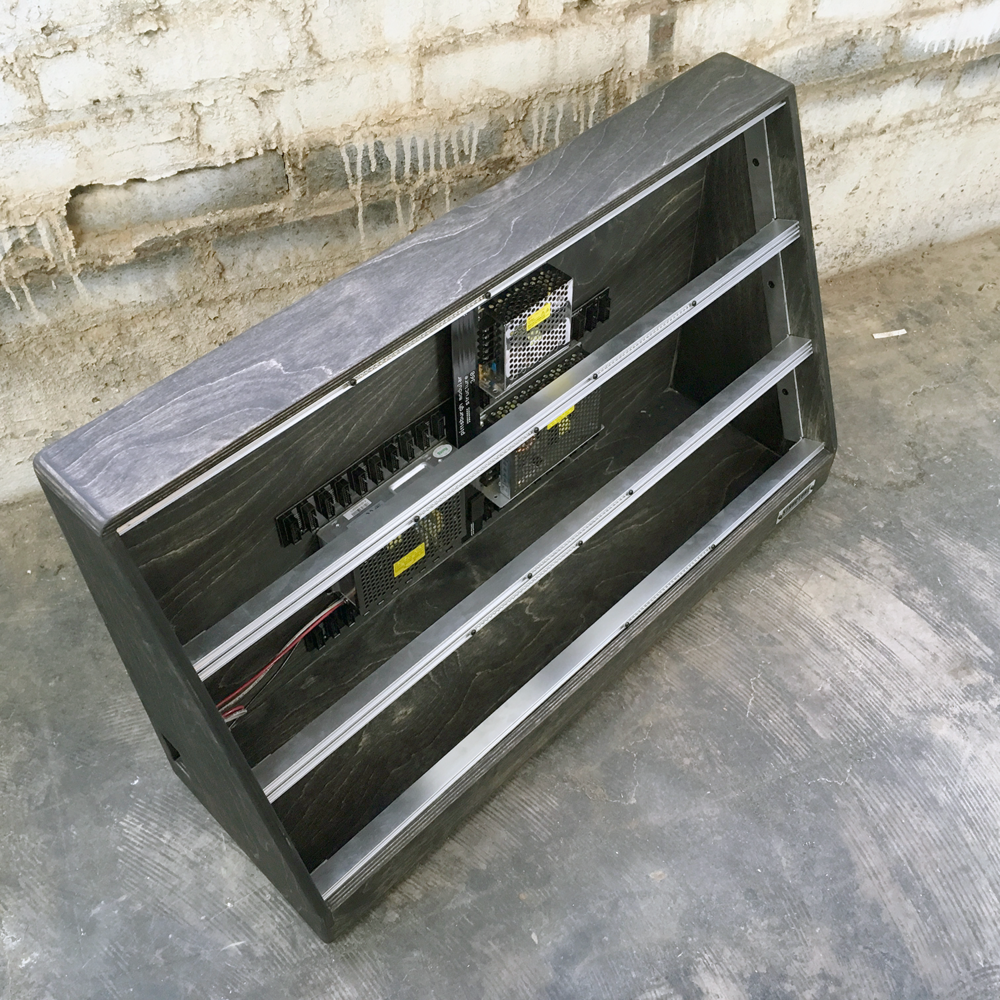

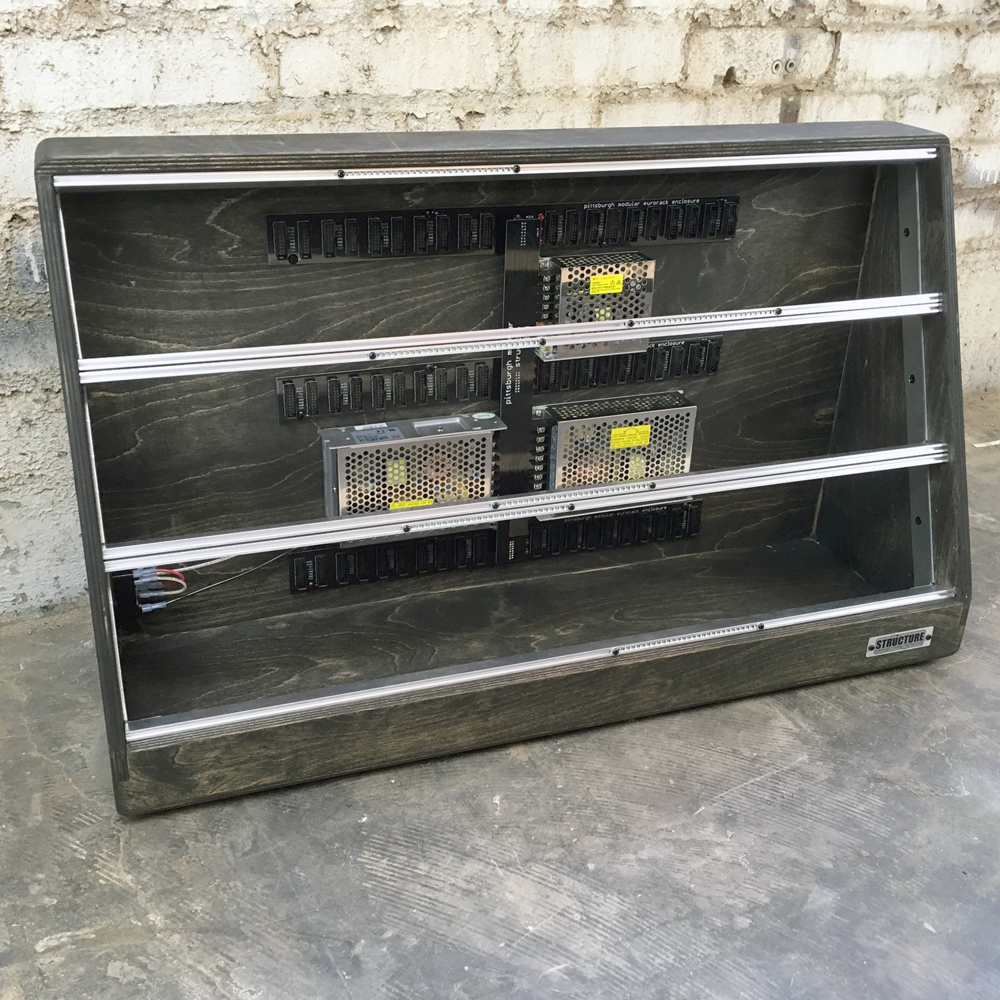

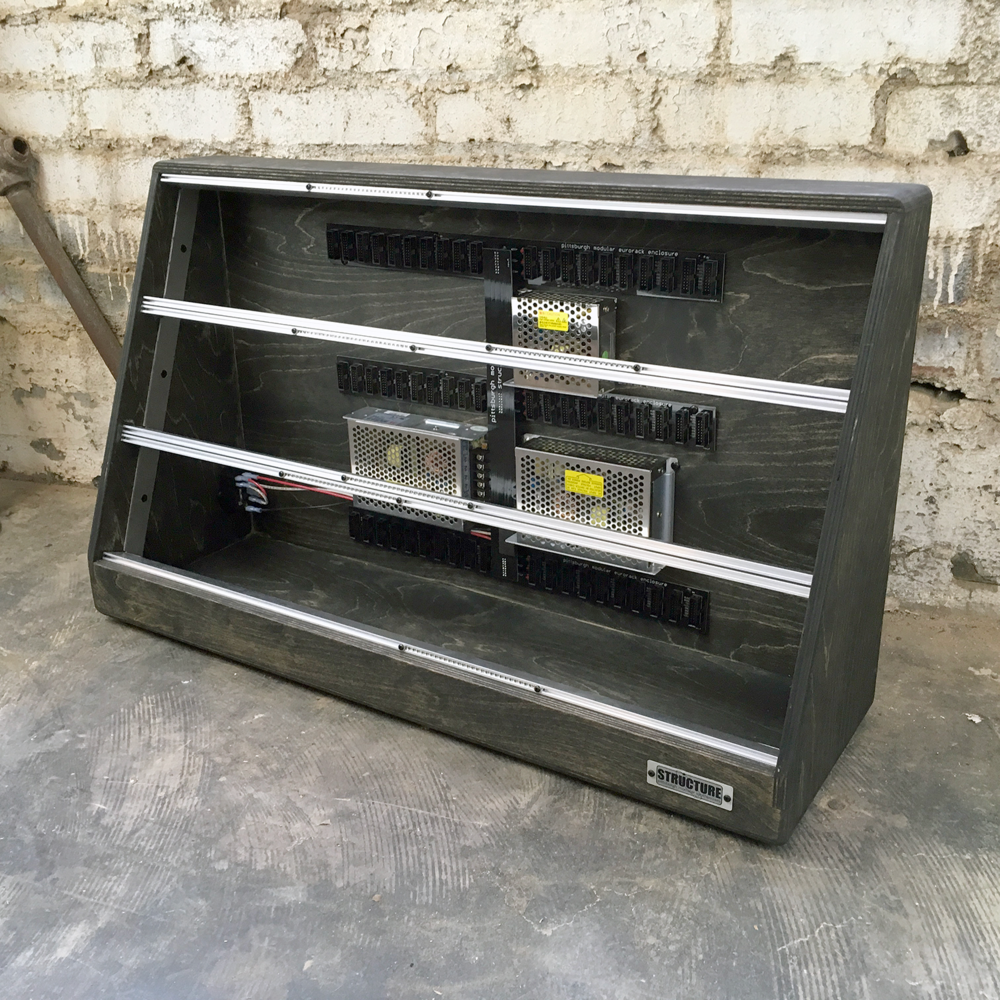

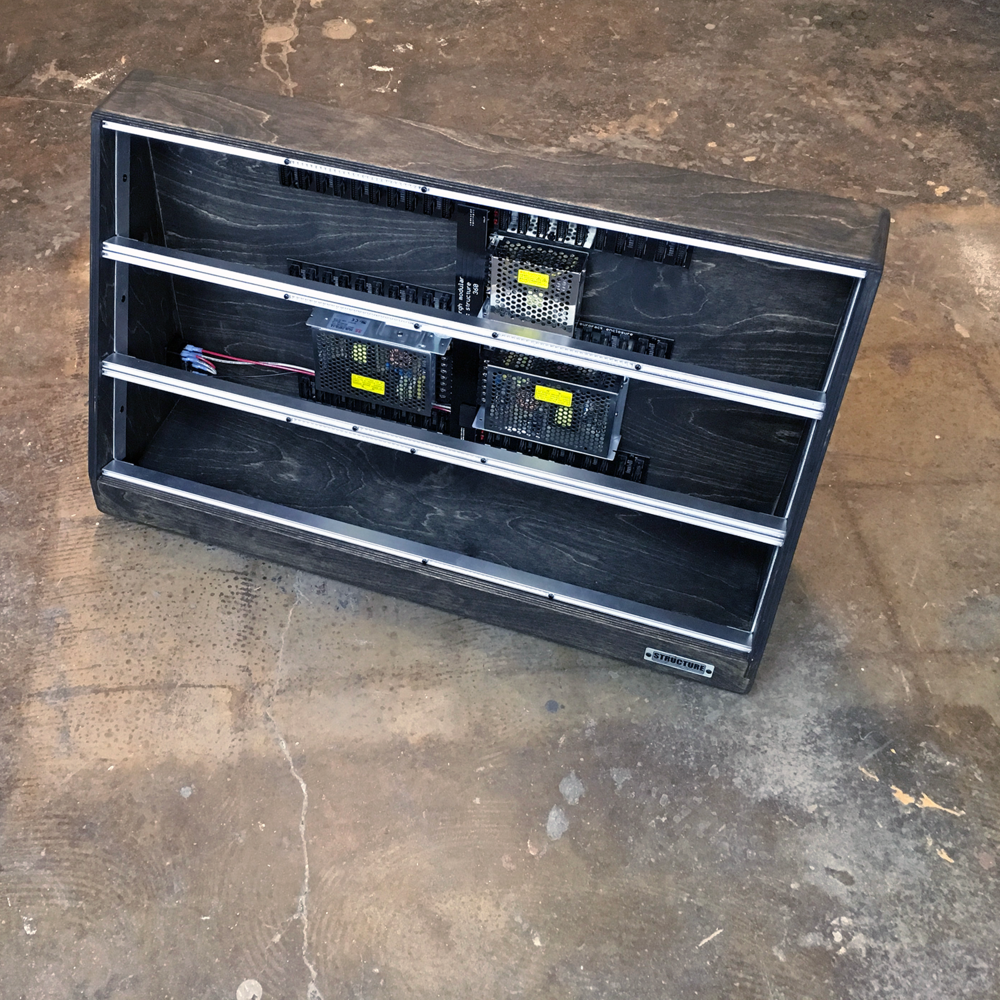

EP-420 Enclosure

• Hardwood and Aluminum Construction
• Three 140hp Rows
• 420hp Total Space Available
• Edge to Edge Rails Reduce Gaps Between Modules and the Side of the Case
• 30 Smooth Sliding Square Nuts Per Rail Ensures Modules Always Fit Perfectly (Holds up to 90 modules)
• Includes 180 Black (Size 4-40 1/4") Module Mounting Screws
• Beautifully Hand-Stained Hardwood

EP-420 Dimensions

• External Depth at Top: 3.5”
• External Depth at Base: 9”
• External Height: 18”
• External Width: 29”
• Minimum Internal Depth for Modules: 3 3/8”
• Maximum Internal Depth for Modules: 6”
• Empty Weight: 20 lbs
