Monster Sized Eurorack Studio

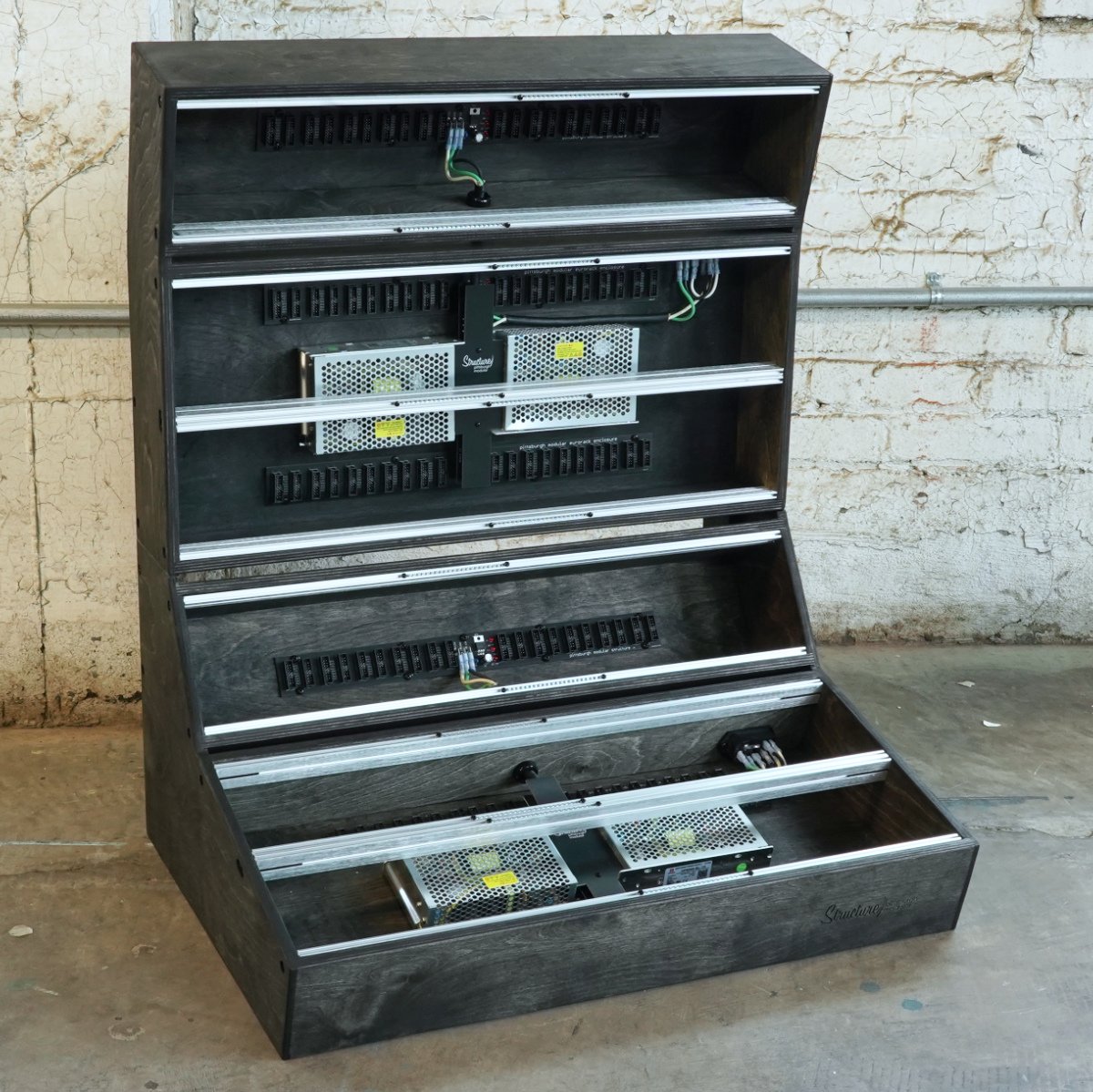

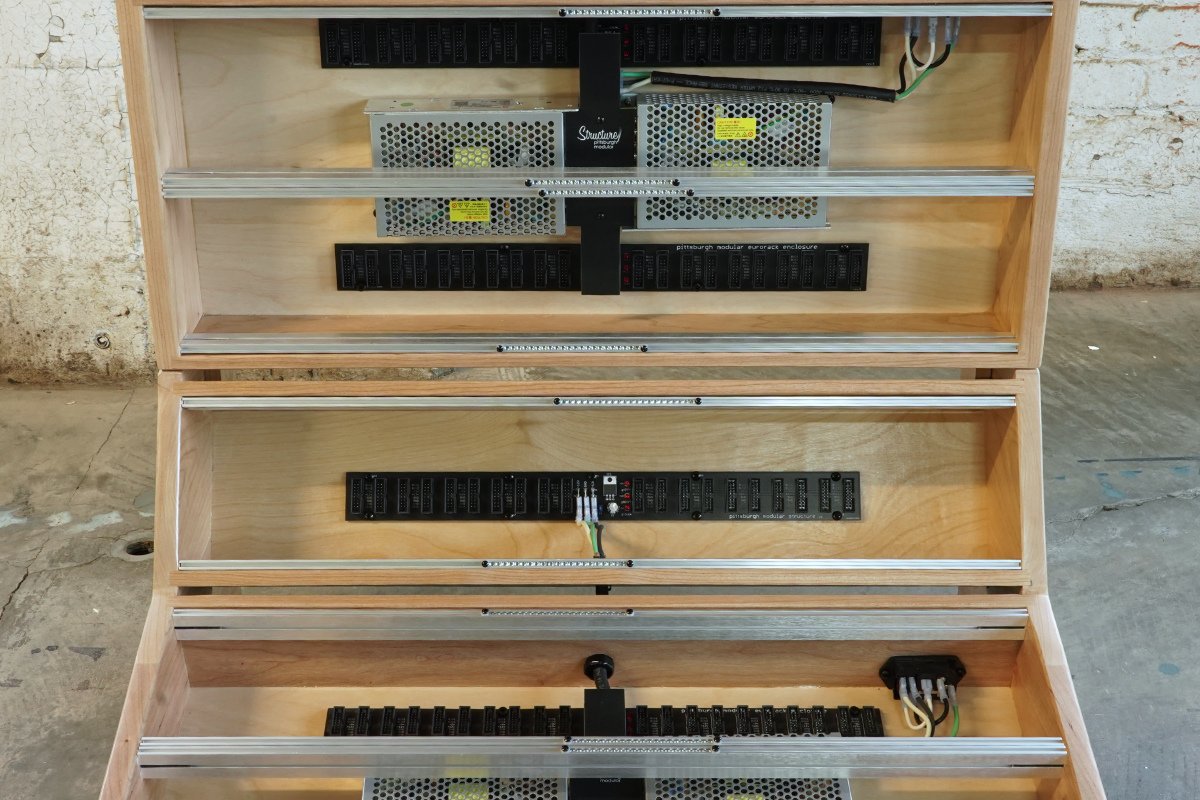

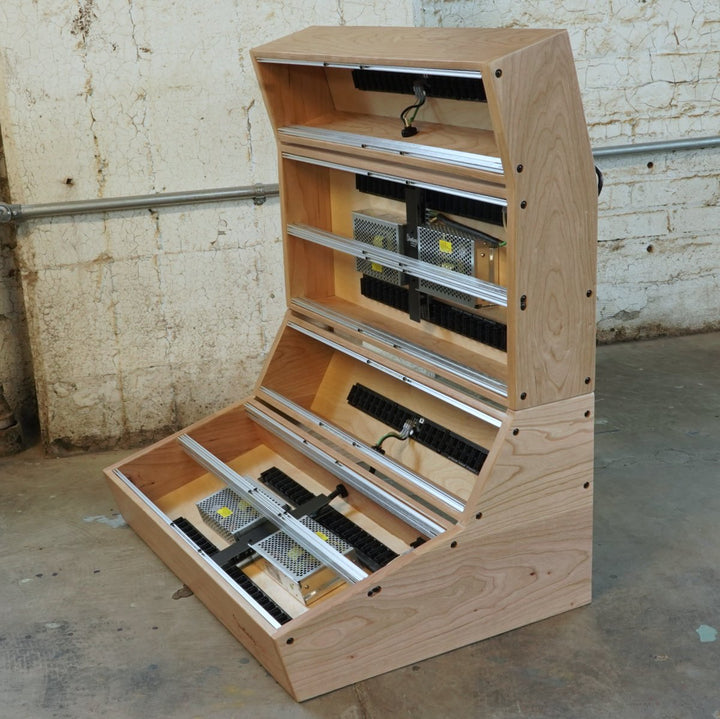

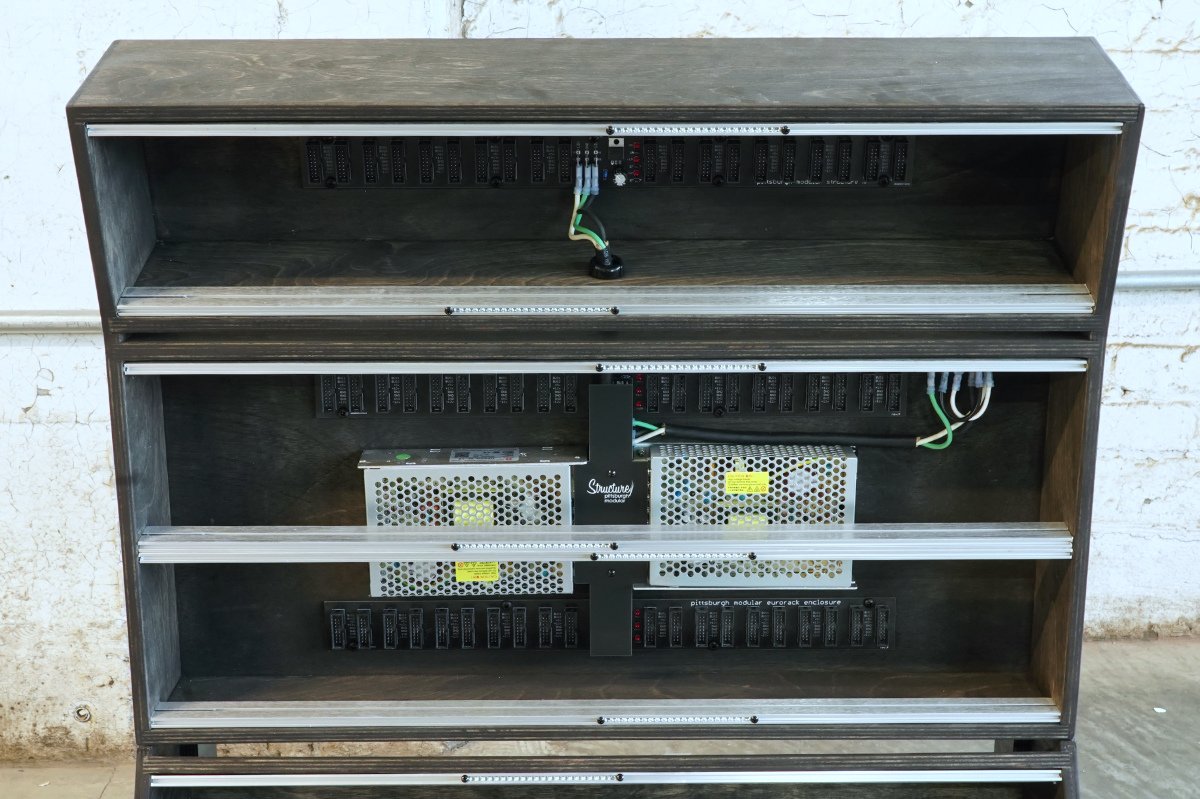

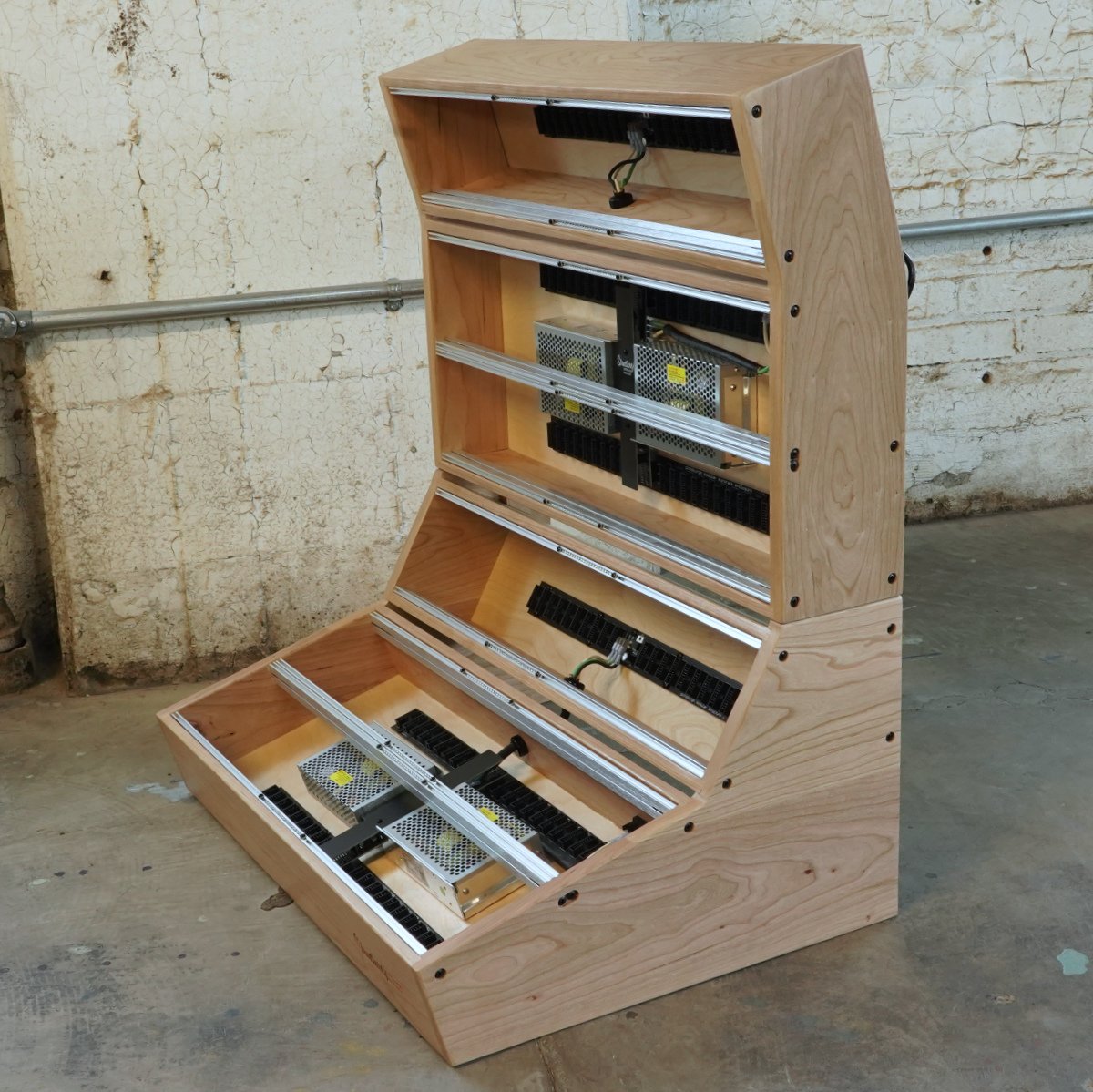

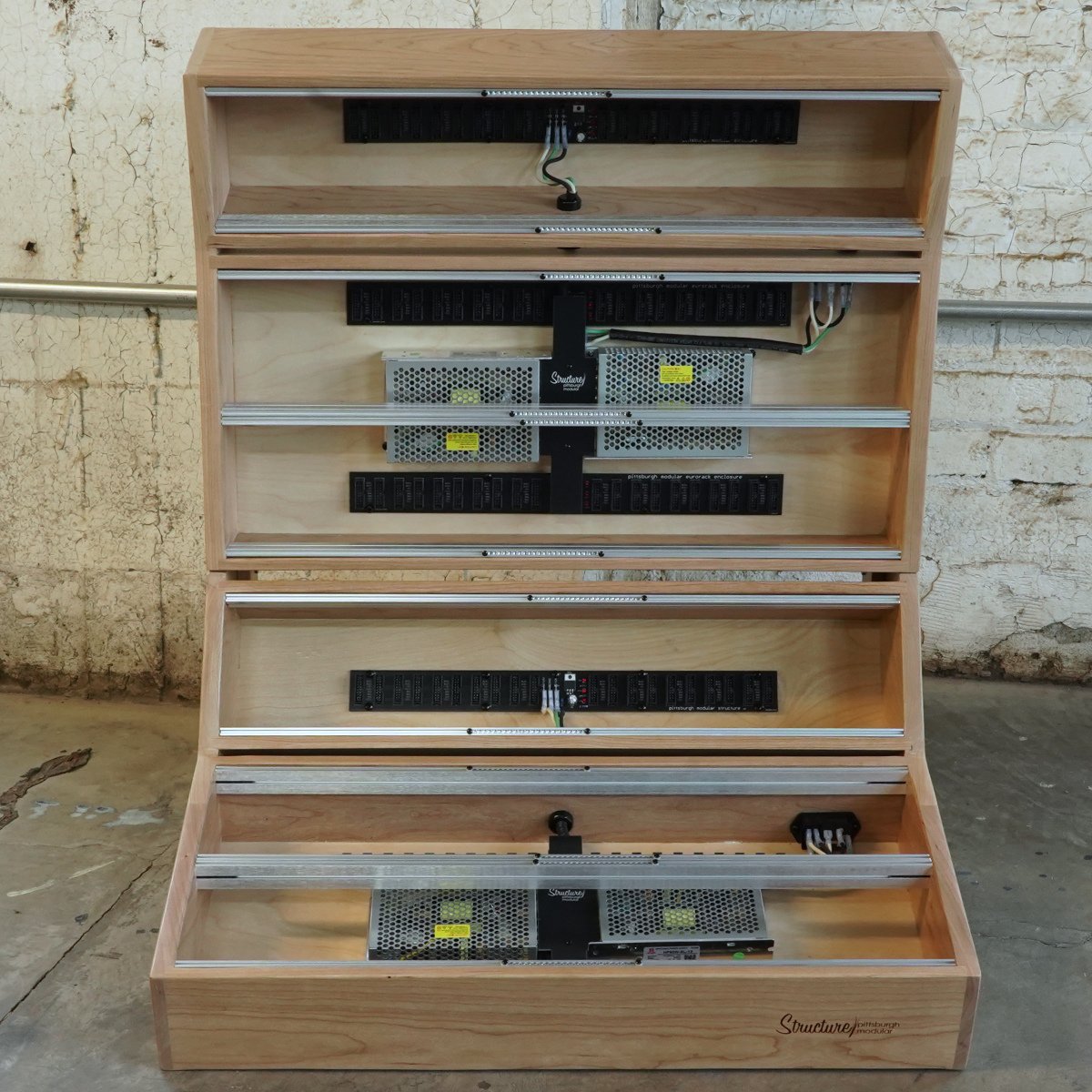

The Structure 744 is a monster eurorack console created to be the focal point of any modular studio. Hand built by our talented wood shop, it combines precision craftsmanship with the reliability of our robust Structure power supplies into a beautiful six row, 744hp desktop eurorack case.

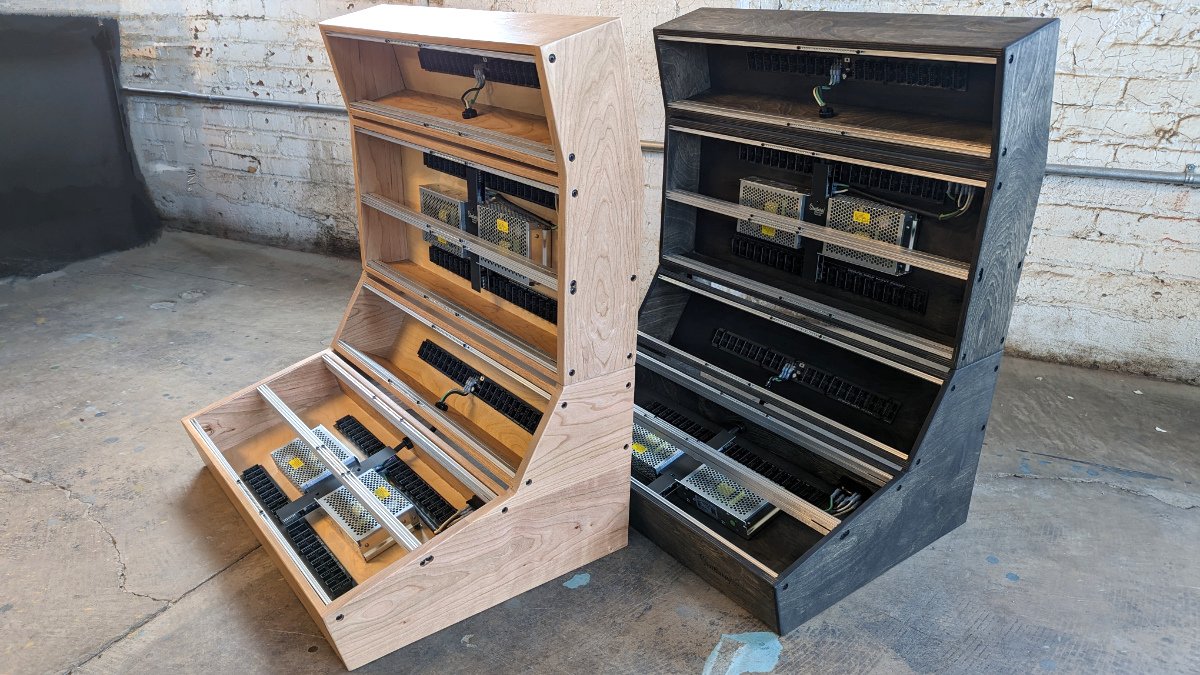

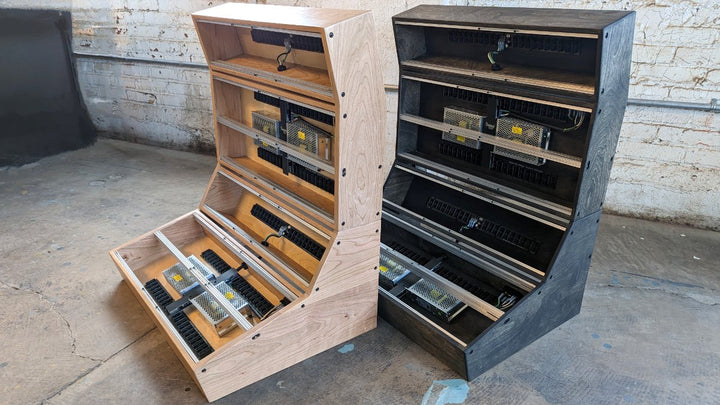

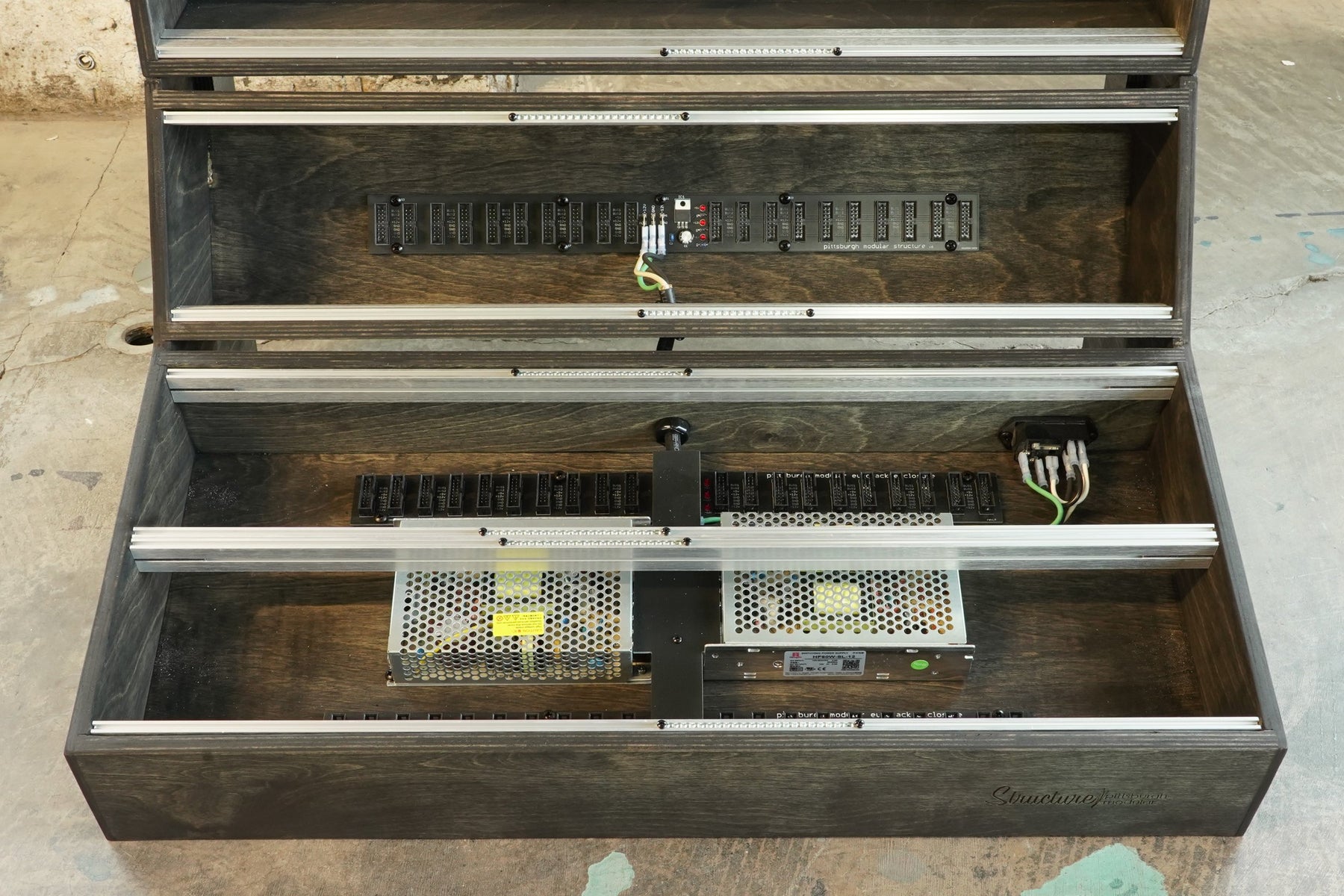

Available in oiled cherry hardwood or classic black stained baltic birch ply.

This case is BIG. Really BIG. Pictures do not convey the scale of this case very well. Please review the dimensions below before ordering.


Structure 744 Power

  • Dual Power Supply Configuration

  • 10 Amps Total of Clean, Filtered +12v Power

  • 10 Amps Total of Clean, Filtered -12v Power

  • 6 Amps Total of Clean, Filtered +5v Power

  • Dual Zone 2 Channel Eurorack System Bus

  • 120 Keyed 16 Pin Eurorack Power Headers

  • External Power Switch with LED

  • Fused Power Protection

  • Universal IEC Power Connector

  • 4 EMI Filters Protect All 3 Power Rails (+12v, +5v, -12v)

  • Low Output Ripple & Noise

  • UL & CE Approved, RoHS Compliant

  • Over Load and Short Circuit Protection

  • Line Regulation (Full Load): ≤0.5%

  • Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery



Structure 744 Enclosure

  • Cherry hardwood or Cabinet Grade Baltic Birch Ply

  • Six 124hp Rows

  • 744hp Total Space Available

  • Edge to Edge Rails Reduce Gaps Between Modules and the Side of the Case

  • 24 Smooth Sliding Square Nuts Per Rail Ensures Modules Always Fit Perfectly (Holds up to 144 modules)

  • Includes 320 Black (Size 4-40 1/4") Module Mounting Screws

  • Beautifully Hand-Stained Hardwood



Structure 744 Dimensions

  • External Depth 19.5”

  • External Height: 31.25”

  • 744 External Width: 25.875”

  • 744c External Width: 26.5”

  • Minimum Internal Depth for Modules: 48mm

  • Maximum Internal Depth for Modules: 115mm

  • 744 Empty Weight: 32.6 lbs

  • 744c Empty Weight: 35.6 lbs
