Maximum HP. Maximum Power. Minimum Size

Tons of space for modules and rock solid power housed in a minimalist hardwood case.

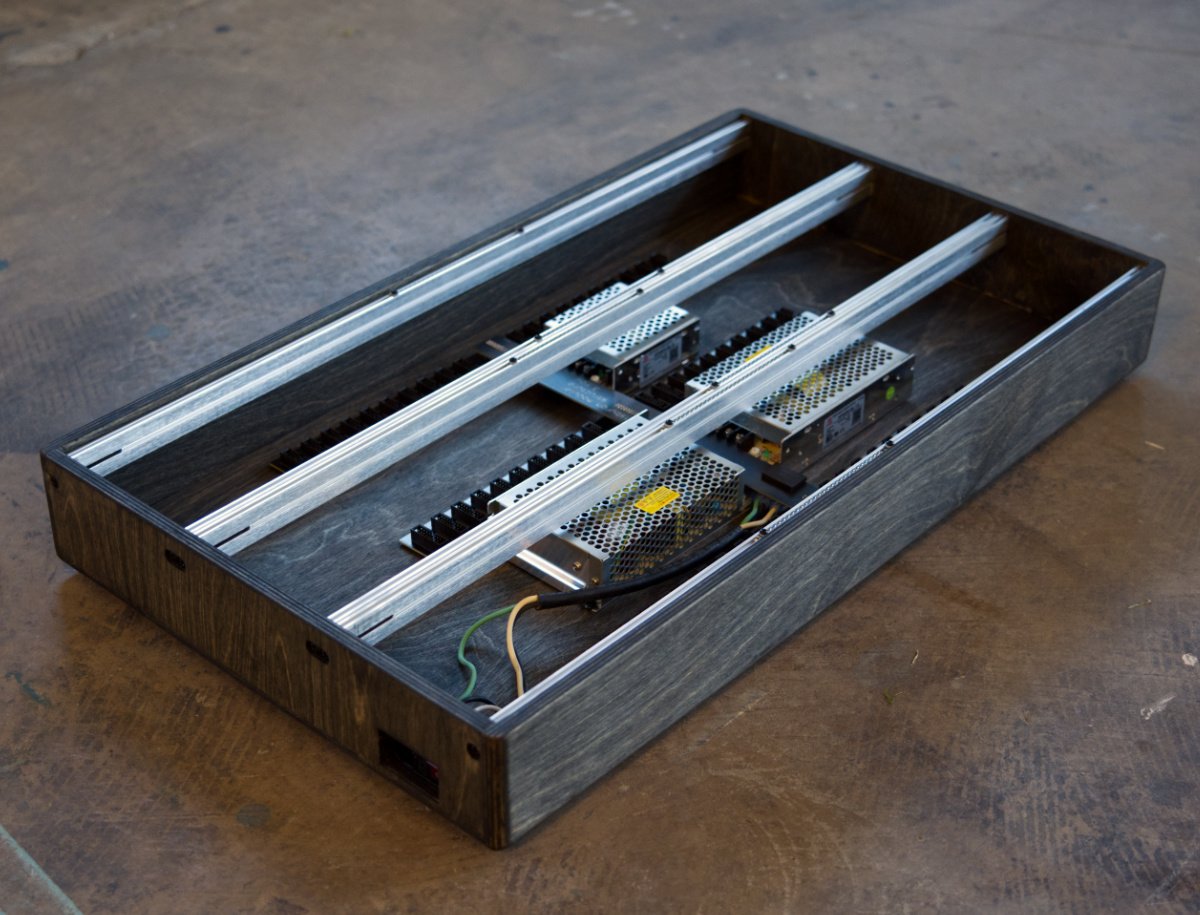

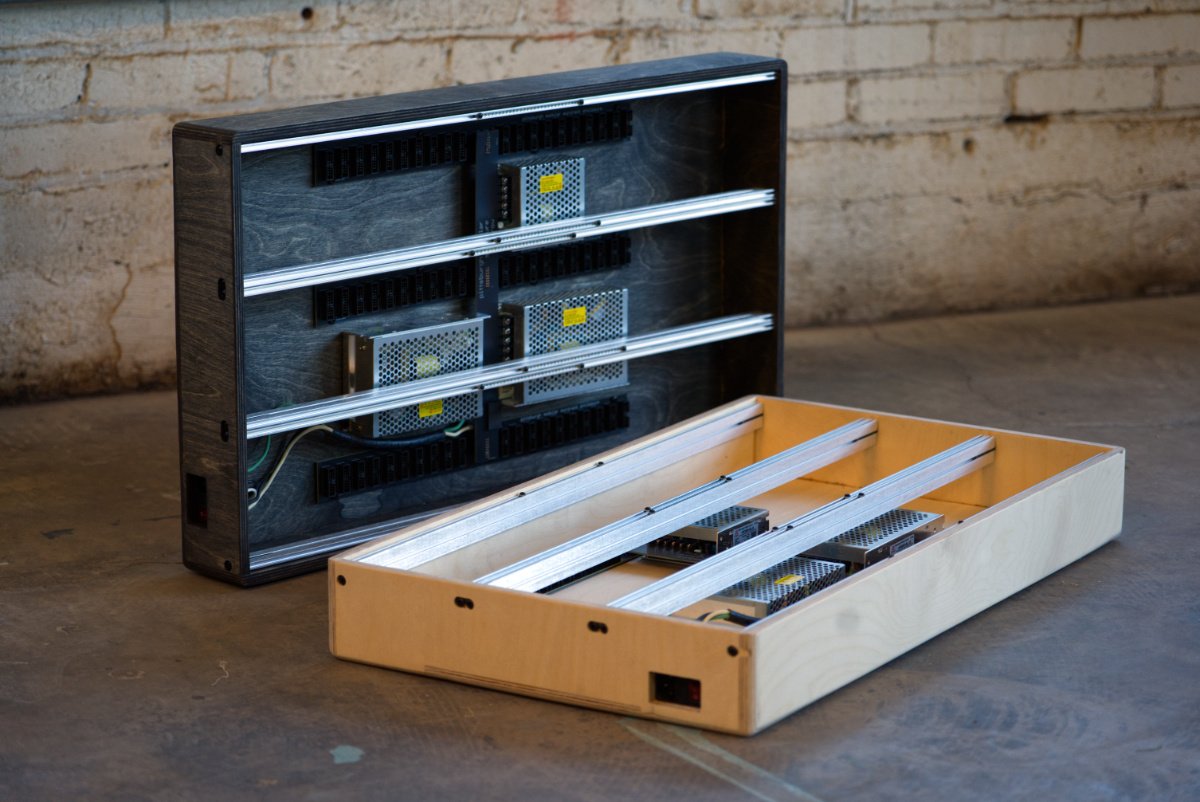

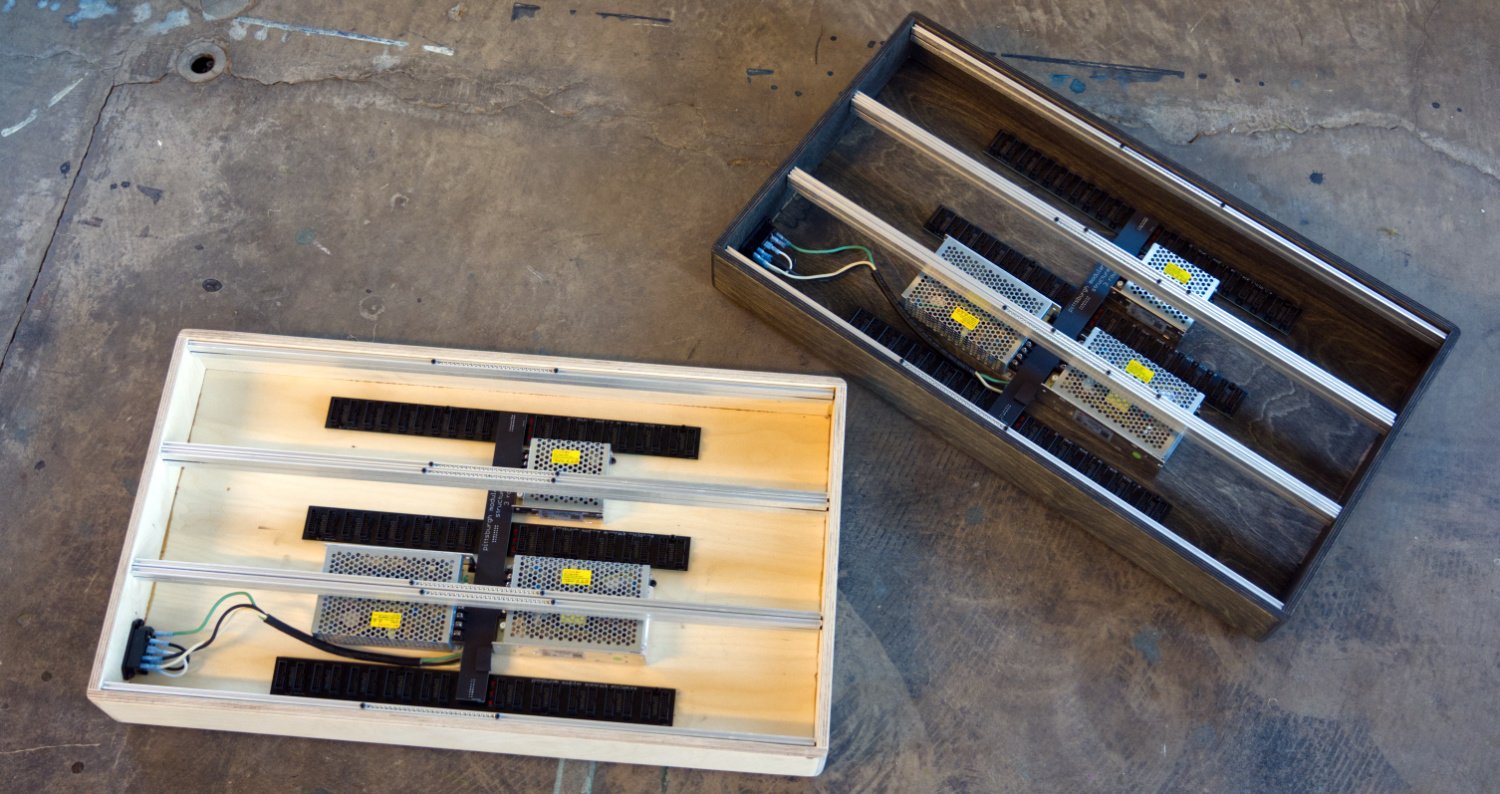

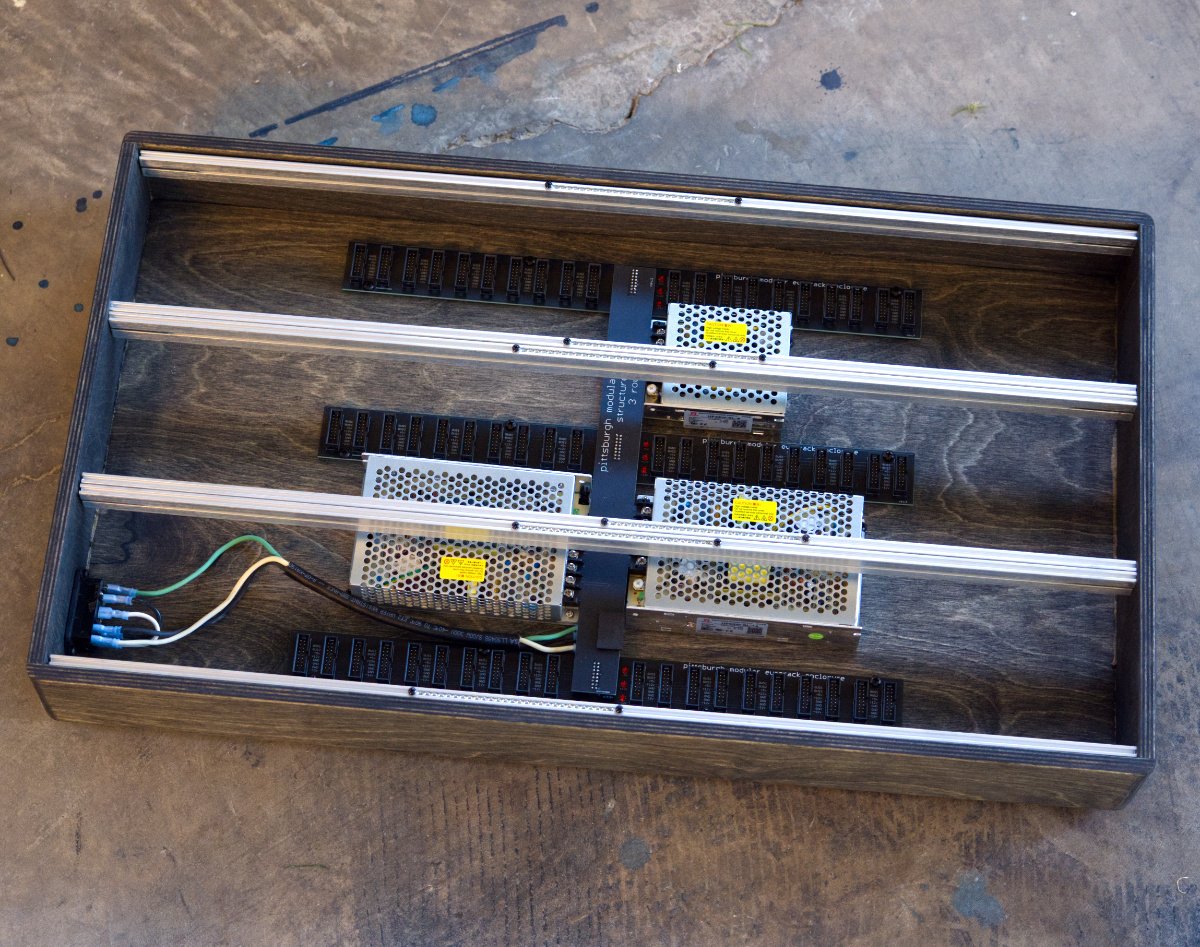

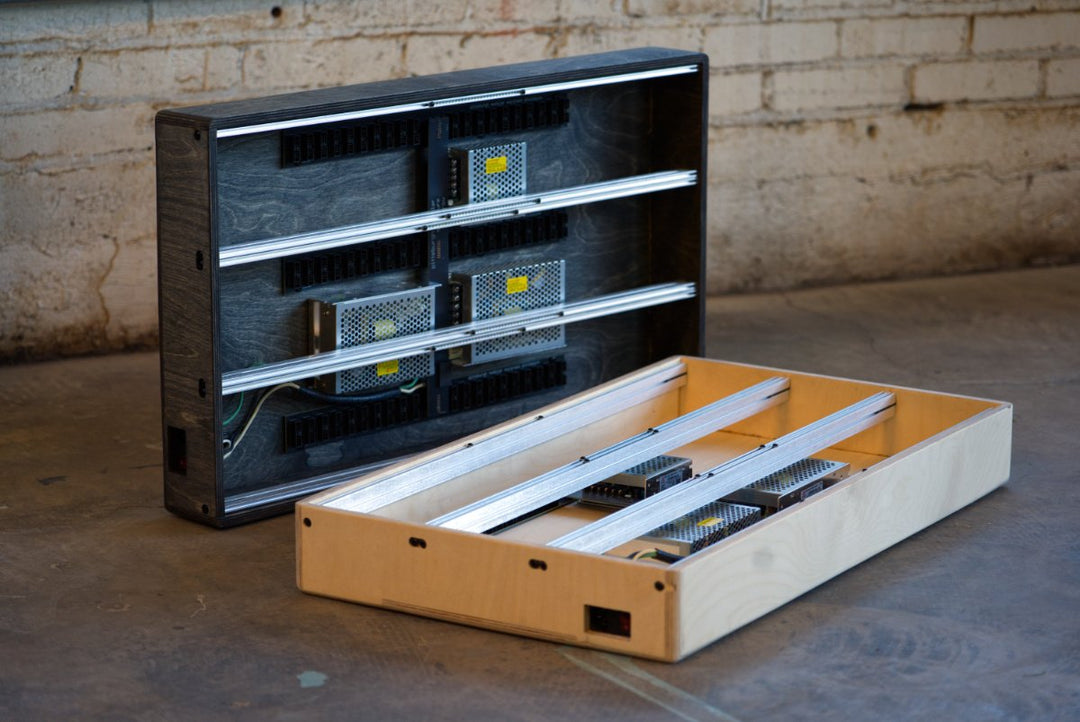

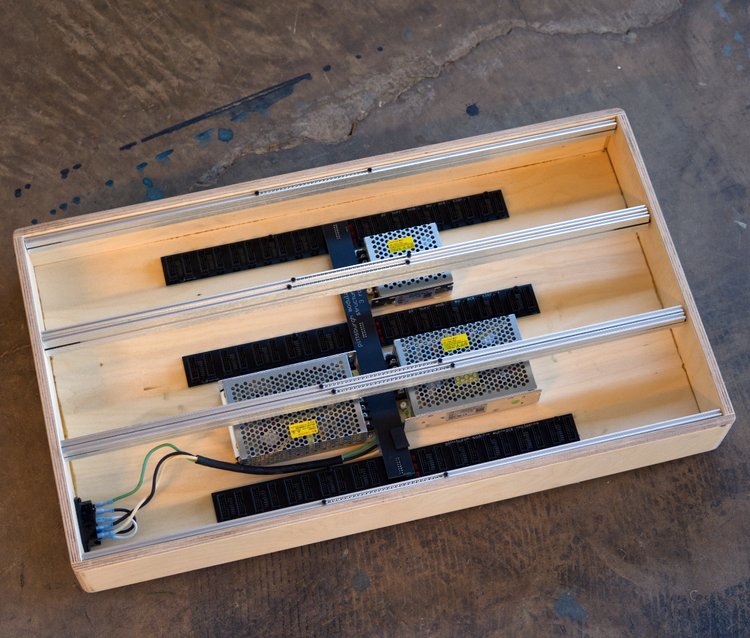

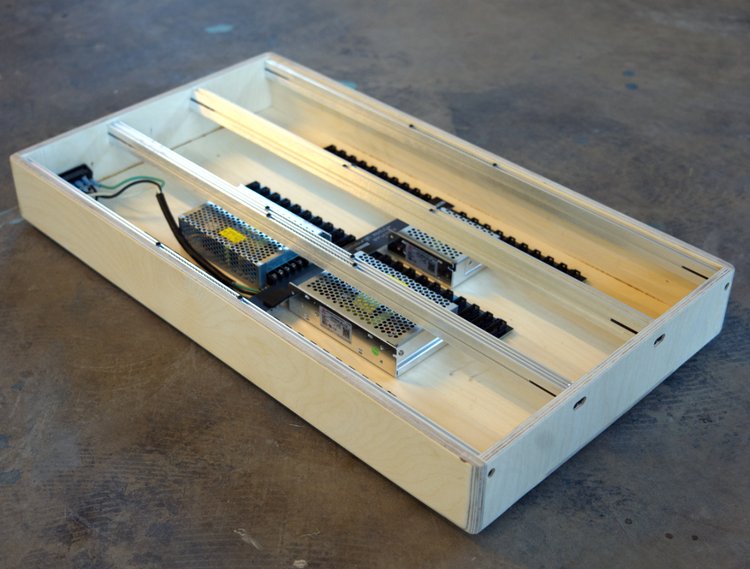

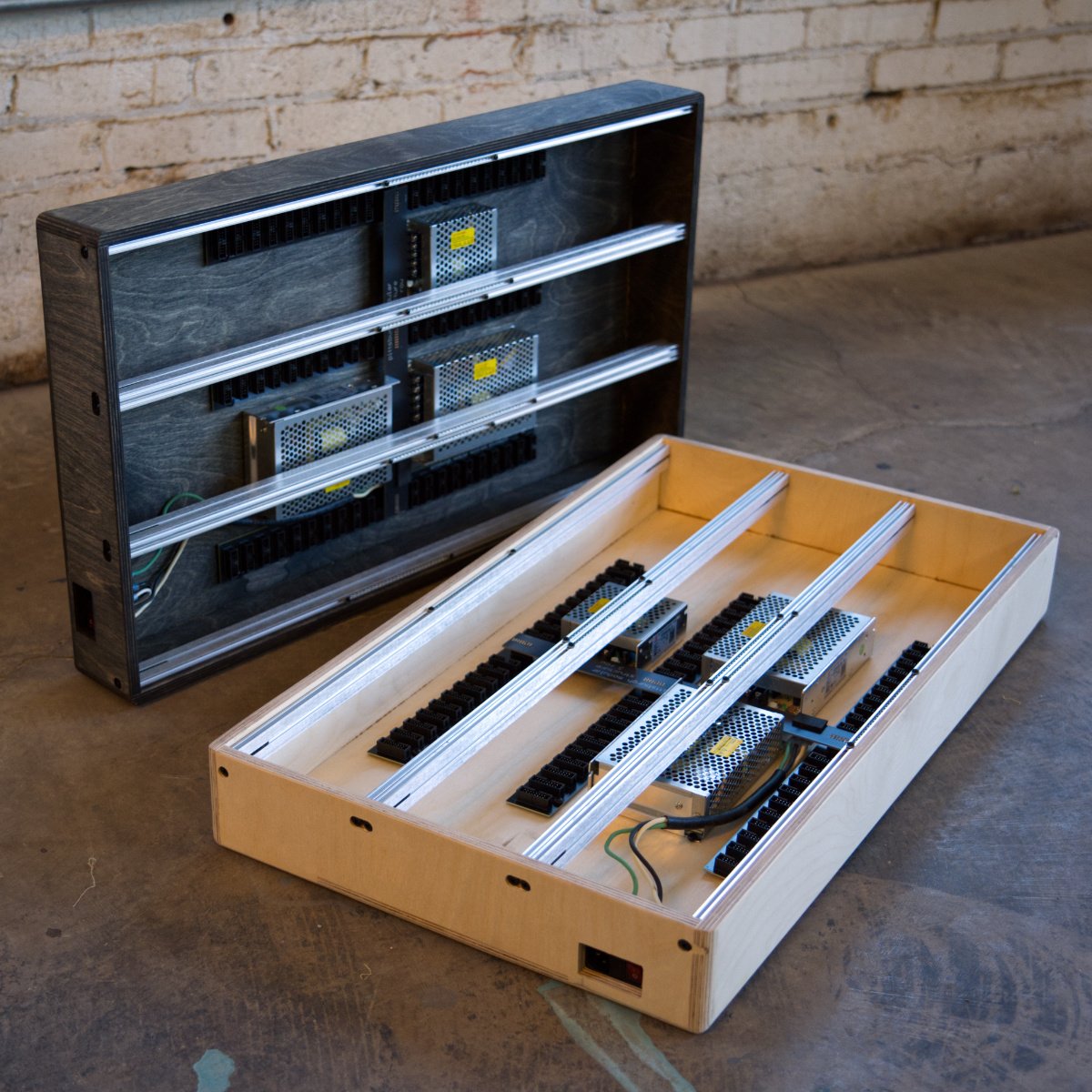

The Structure Core 420 eurorack case offers a massive 420hp of space split into three rows paired with 60 power headers and 5 amps (5,000mA) of industry leading, clean, quiet power per rail. Hand built by our talented wood shop and finished with our signature black stain or raw unfinished hardwood ready for custom paint or stain.

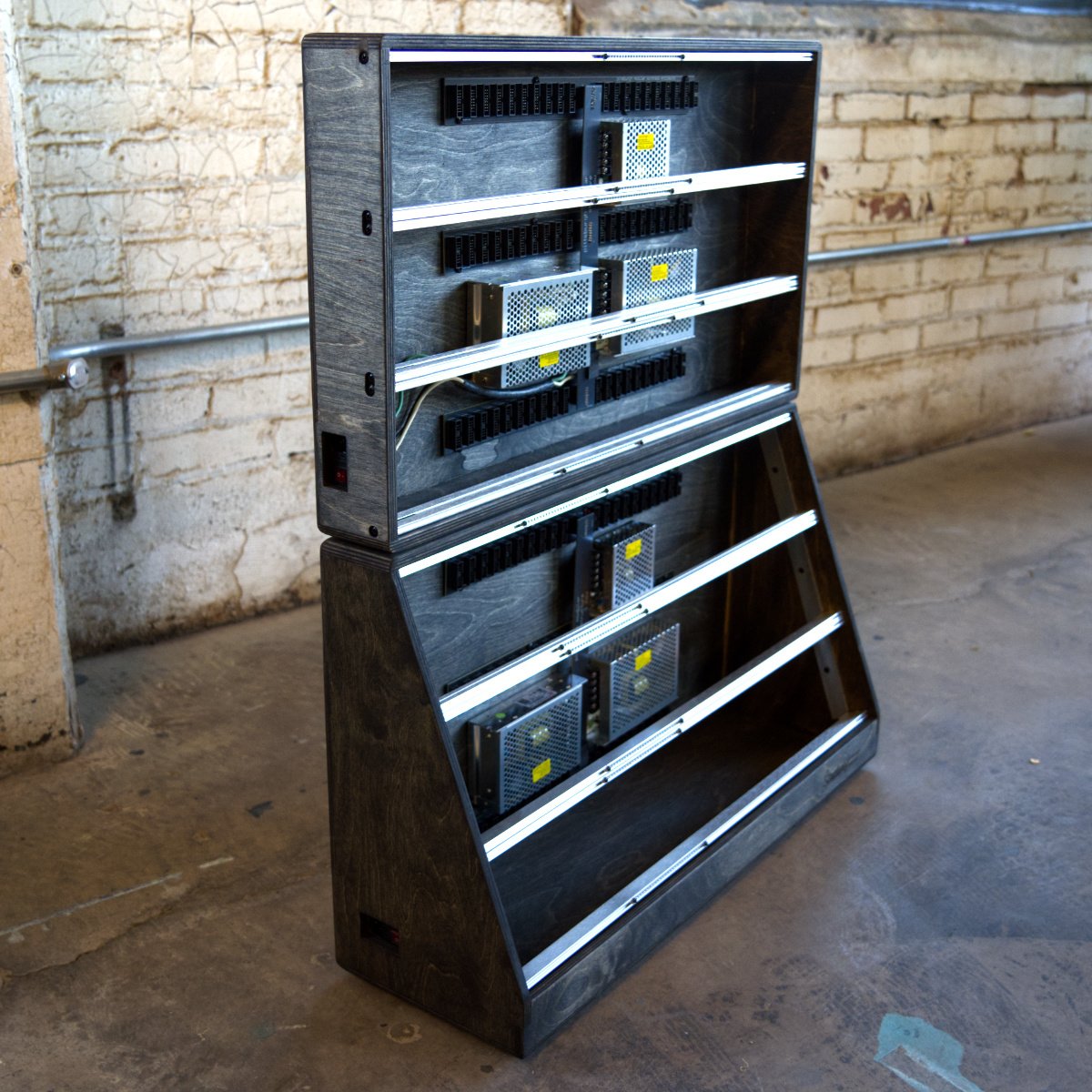

For an even larger system, the Structure Core 420 fits perfectly on top of the angled Structure 420 using the optional Core Bracket Kit to create a gigantic studio centerpiece.

Structure Core 420 Power

• 5 Amps of Clean, Filtered +12v Power
• 5 Amps of Clean, Filtered -12v Power -
• 5 Amps of Clean, Filtered +5v Power -
• Case Wide 2 Channel Eurorack System Bus -
• 60 Keyed 16 Pin Eurorack Power Headers -
• External Power Switch with LED -
• Fused Power Protection -
• Universal IEC Power Connector -
• Discrete EMI filter per power rail (+12v, +5v, -12v) -
• Low Output Ripple & Noise -
• UL & CE Approved, RoHS Compliant -
• Over Load and Short Circuit Protection -
• Line Regulation (Full Load): ≤0.5% -
• Output Over Load Protection: 10%-150% Hiccup Mode with Auto-Recovery

Structure Core 420 Enclosure

• Hardwood and Aluminum Construction
• Three 140hp Rows - 420hp Total Space Available
• Edge to Edge Bracket Free Rails Reduce Gaps Between Modules and the Side of the Case
• 30 Smooth Sliding Square Nuts Per Rail Ensures Modules Always Fit Perfectly (Holds up to 90 modules)
• Includes 180 Black (Size 4-40 1/4") Module Mounting Screws
• Beautifully Hand-Stained or Unfinished Hardwood Structure Core 420 Dimensions
• External Depth: 3.5”
• External Height: 16.5”
• External Width: 29”
• Minimum Internal Depth for Modules: 1 3/8” (35mm)
• Maximum Internal Depth for Modules: 2 15/16” (74mm)
• Empty Weight: 15 lbs. 4 oz.
• Structure Core 420 Shipping Dimensions - Box Size: 32x24x6 inches - Weight: 24.5 lbs
