PITTSBURGH MODULAR STRUCTURE EP-208 CASE

PITTSBURGH MODULAR STRUCTURE EP-208 CASE
PITTSBURGH MODULAR STRUCTURE EP-208 CASE
PITTSBURGH MODULAR STRUCTURE EP-208 CASE
PITTSBURGH MODULAR STRUCTURE EP-208 CASE

PITTSBURGH MODULAR STRUCTURE EP-208 CASE

Regular price $999.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

Structure Enclosures

Professional Eurorack Modular Synthesizer Cases

With years of research and two case lines under our belt, we decided to start over and produce a line of enclosures for the next generation of eurorack synthesizers. The eurorack modular ecosystem is expanding faster than ever and manufacturers are constantly pushing eurorack cases and power supplies to the limits. What started as a power supply designed to drive primarily analog synthesizers has transformed into a supply that needs to simultaneously meet the unique demands of sensitive analog circuitry, power hungry digital processors, and ground sensitive user interface modules. So we started with what matters most. Clean power. A lot of it. Up to 3x the amount of clean power available in cases from other brands.

Next we turned our focus to the enclosure itself and there was only one goal. Make the case stronger. Our engineers tested countless combinations utilizing different types of wood, joints, adhesives, assembly techniques, and hardware to ensure that Structure cases are as durable as they are beautiful. With a clean and gorgeous design that promotes creative exploration, the Structure enclosures are our most robust and refined case line yet. With massive amounts of both room and clean power, you can reach completely new heights in your creative performances.

Maximum Power for a New Generation

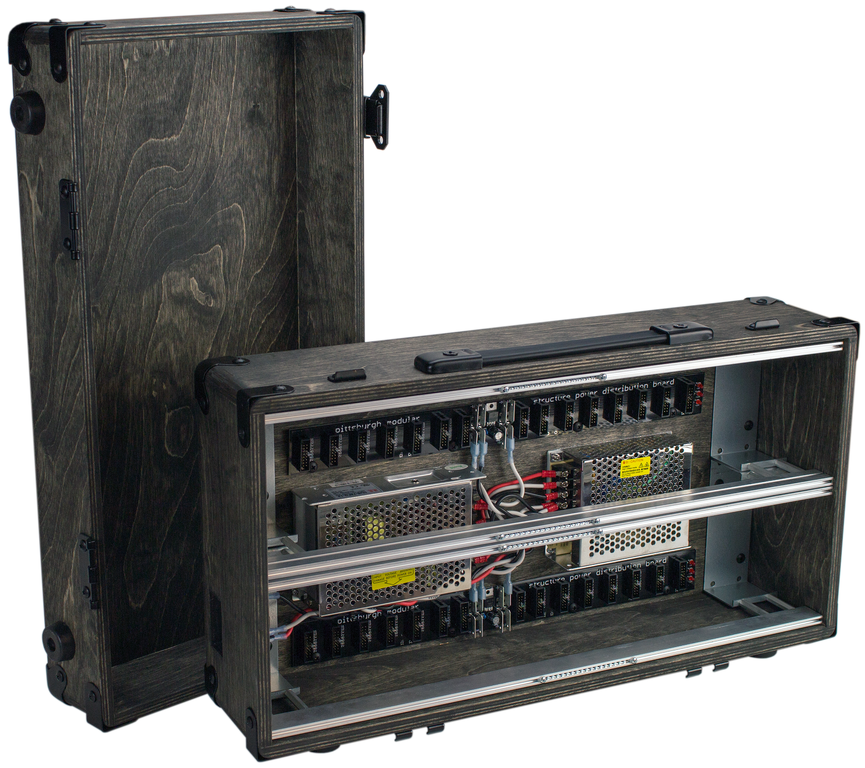

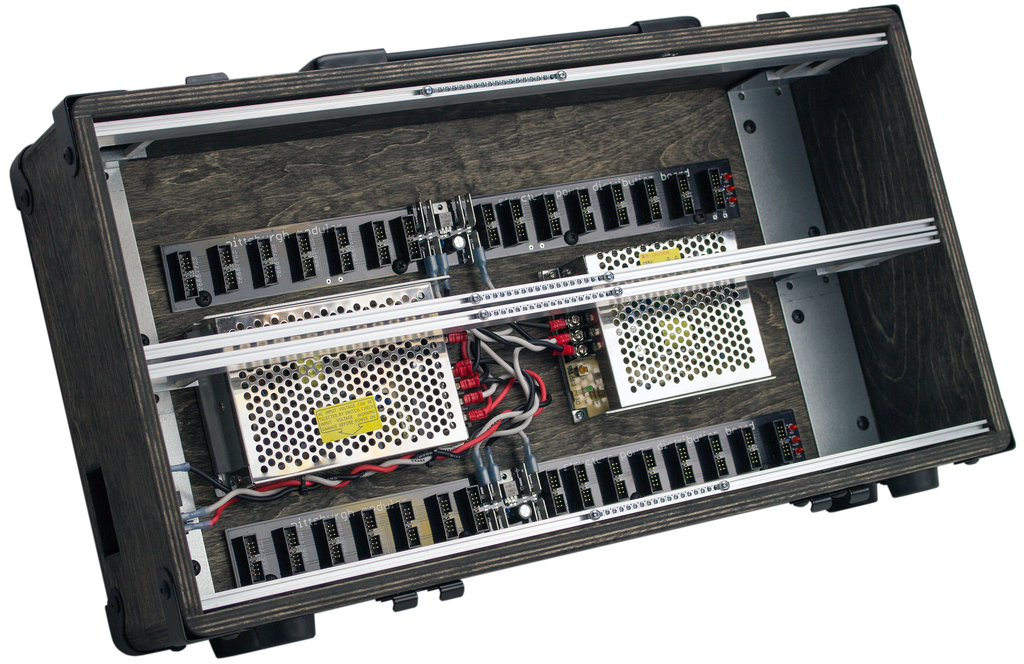

A serious double row, 208hp powered eurorack travel case with lid. Includes a heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.

Structure EP-208 Features:

EP-208 Power

4 amps of Clean +12v Power

3 amps of Clean -12v Power

2 amps of Clean +5v Power

30 Keyed Eurorack Power Headers

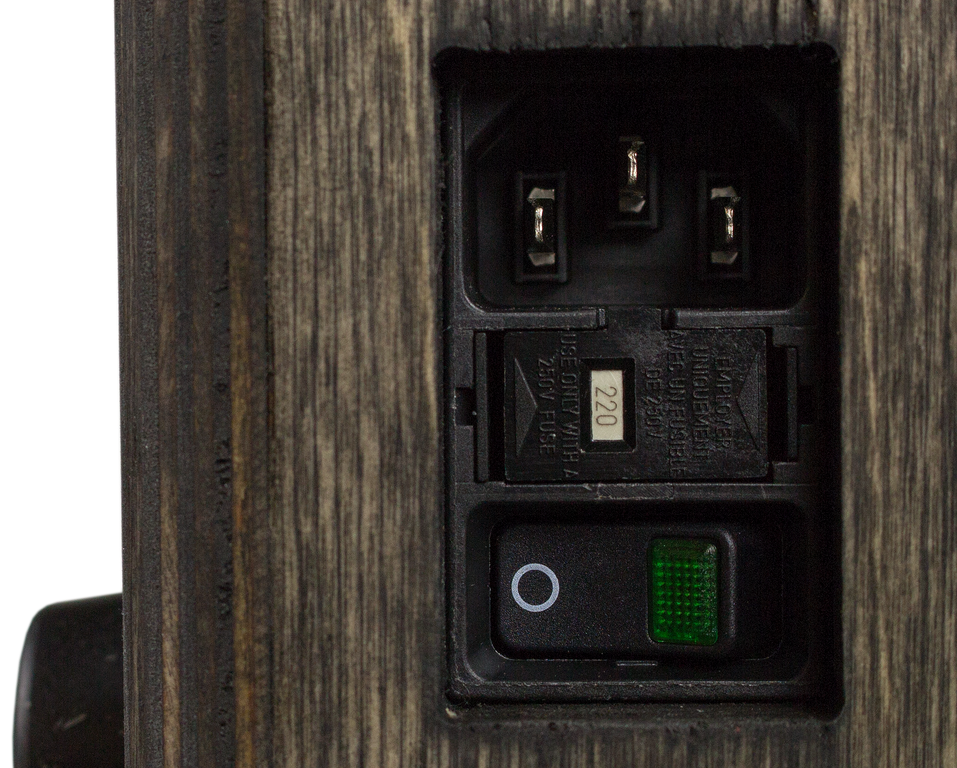

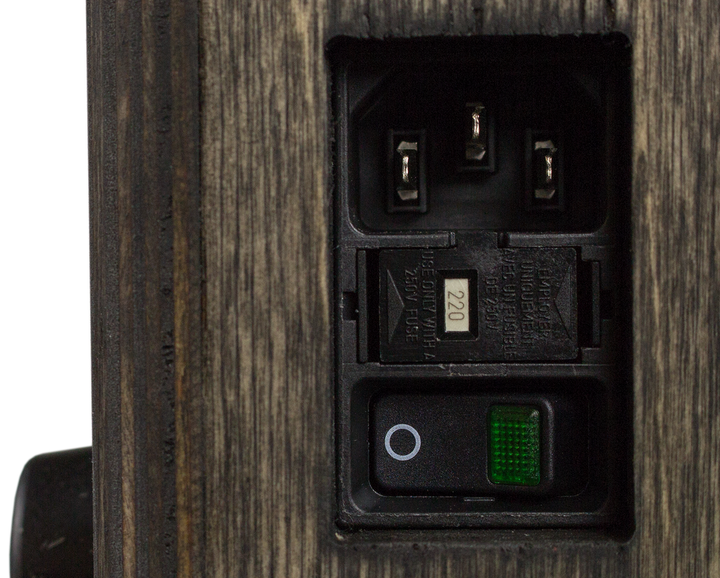

External Power Switch with LED

Fused Power Protection

Universal IEC Power Connector

EP-208 Enclosure

Hardwood and Steel Construction

Two 104hp Rows

208hp total space available

Removable Lid

Lid Fits Over Fully Patched System (No need to remove patch cables)

Edge to Edge Rails Reduce Gaps Between Modules and the Case Side

20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)

Includes 80 Black (Size 4-40 1/4") Module Mounting Screws

Beautifully Hand-Stained Hardwood

Matching Black Steel Hardware Set

EP-208 Dimensions

External Depth with lid:9 1/4”

External Depth without Lid: 5 1/2”

External Height: 12 1/4”

External Width: 22”

Internal Depth Above Power Supply: 2 3/4”

Internal Depth Above Bus Board: 3 3/4”

Internal Depth Above Nothing: 4 1/4”
