RANE FOUR 4-CHANNEL DJ CONTROLLER

RANE FOUR 4-CHANNEL DJ CONTROLLER
RANE FOUR 4-CHANNEL DJ CONTROLLER
RANE FOUR 4-CHANNEL DJ CONTROLLER

RANE FOUR 4-CHANNEL DJ CONTROLLER

Regular price $1,499.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
Shipping calculated at checkout.

Advanced 4-Channel Stems DJ Controller

Built for advanced stems workflows and four channel control, the RANE FOUR combines Serato Stems tools, Dynamic FX, high resolution jog wheels, and RANE build quality in a dedicated performance controller.

Four channels. Stems up front.

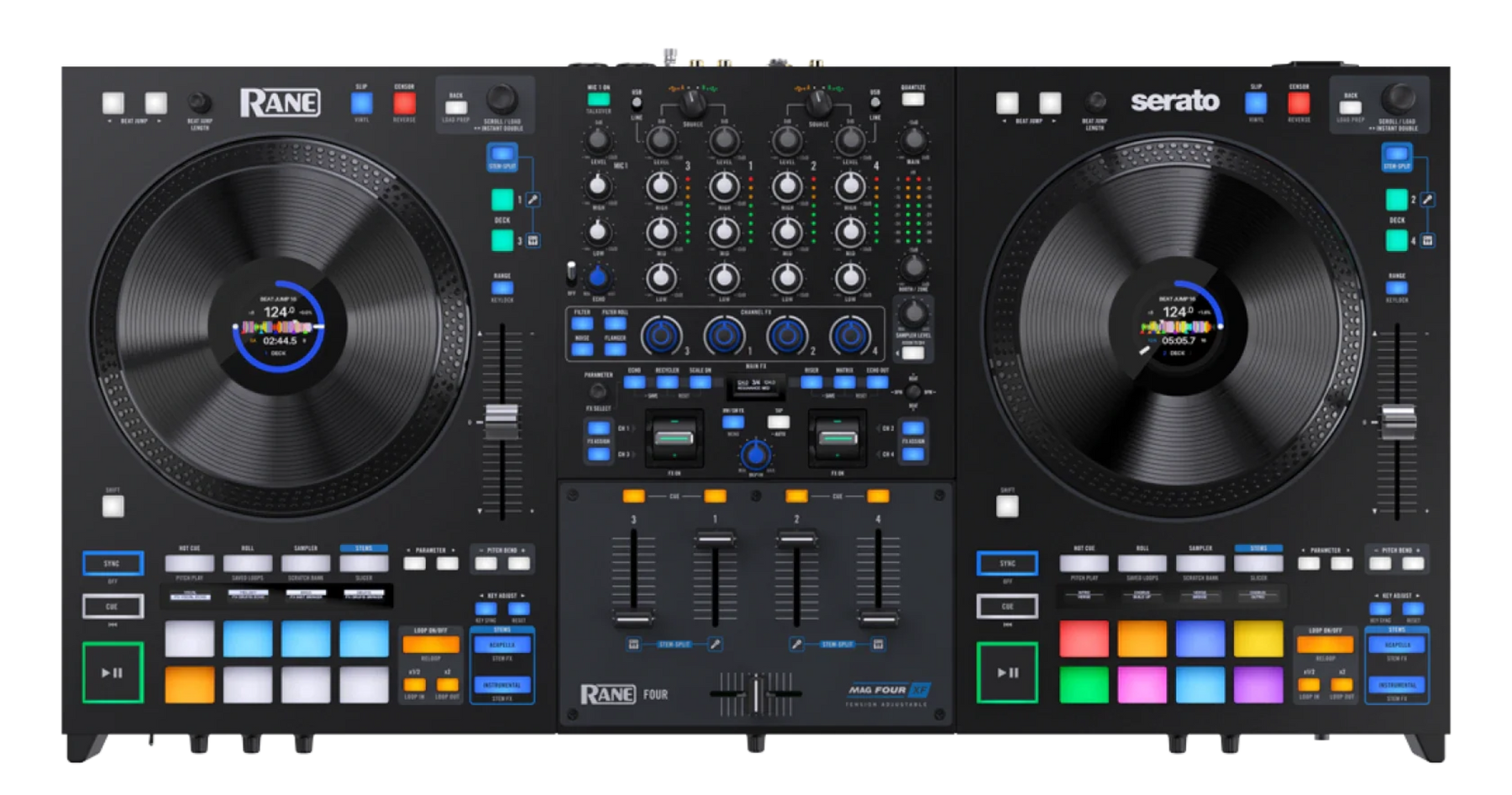

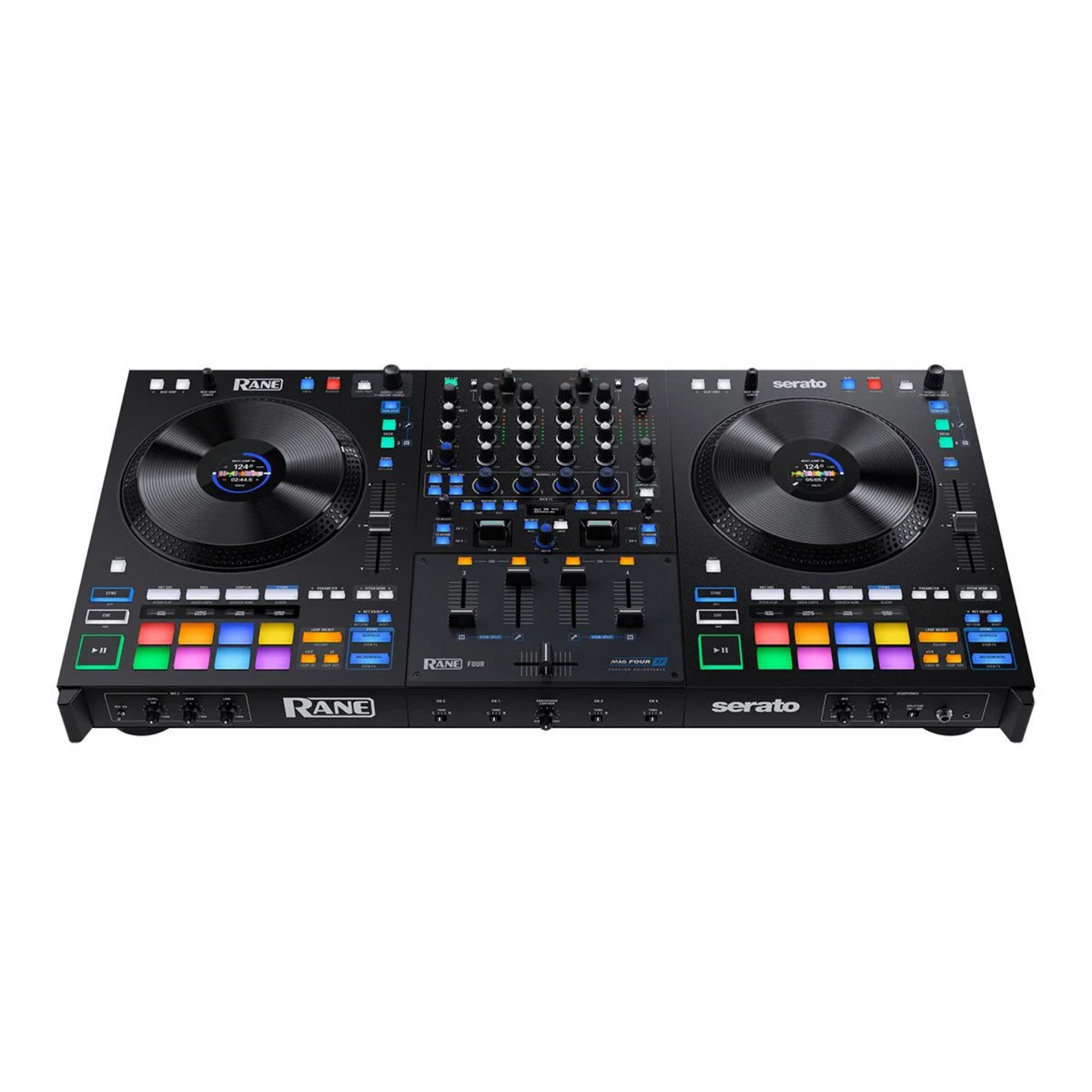

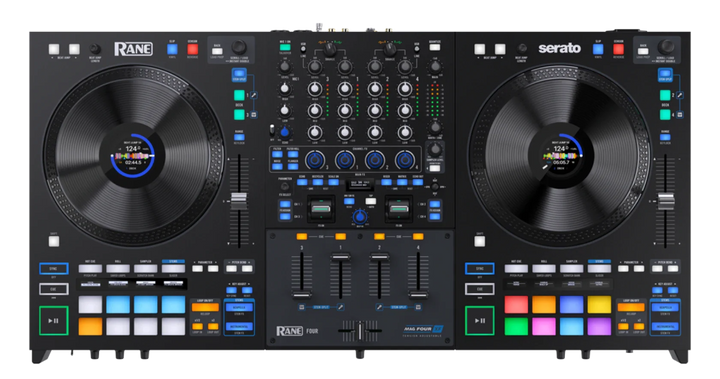

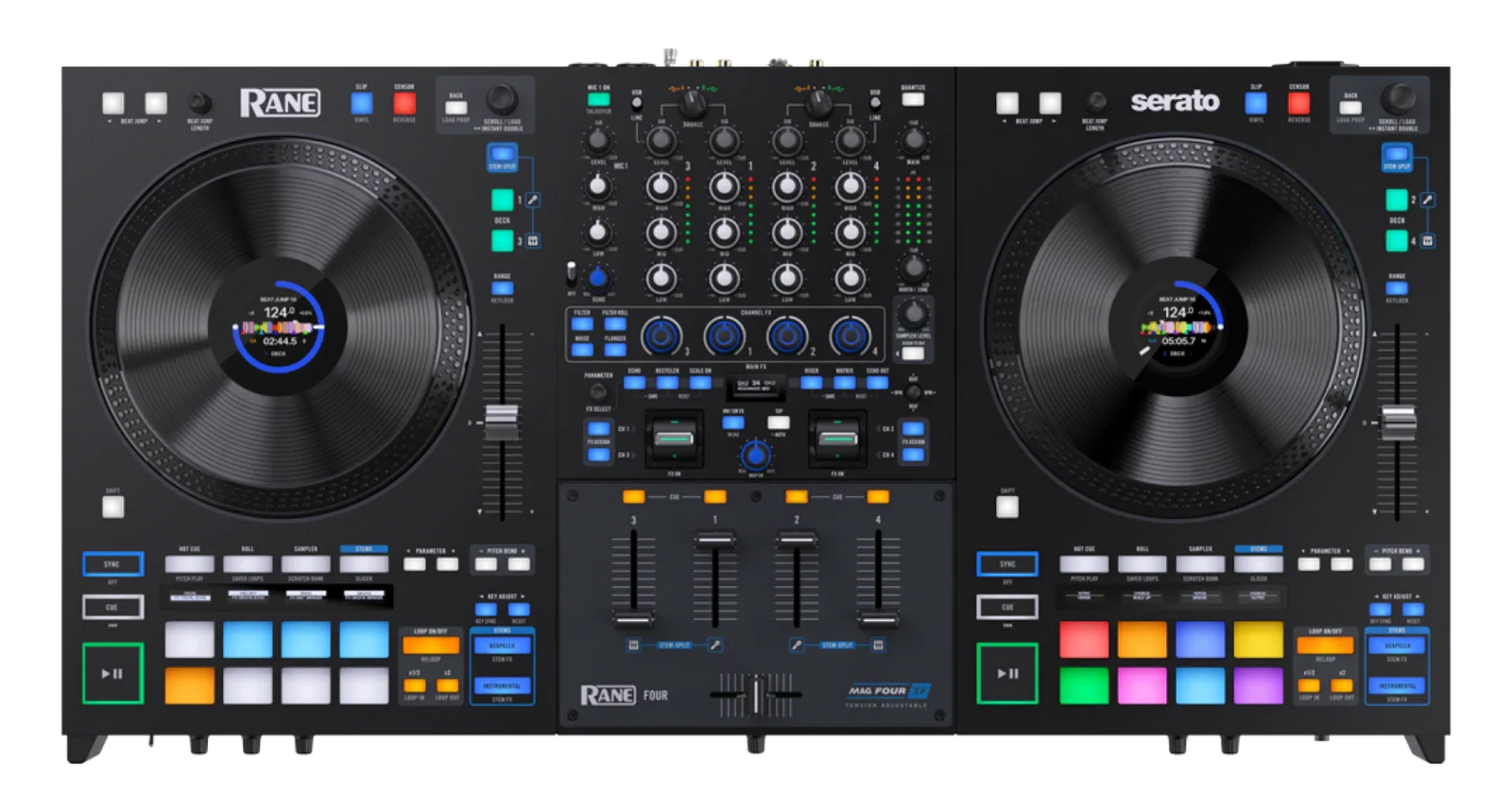

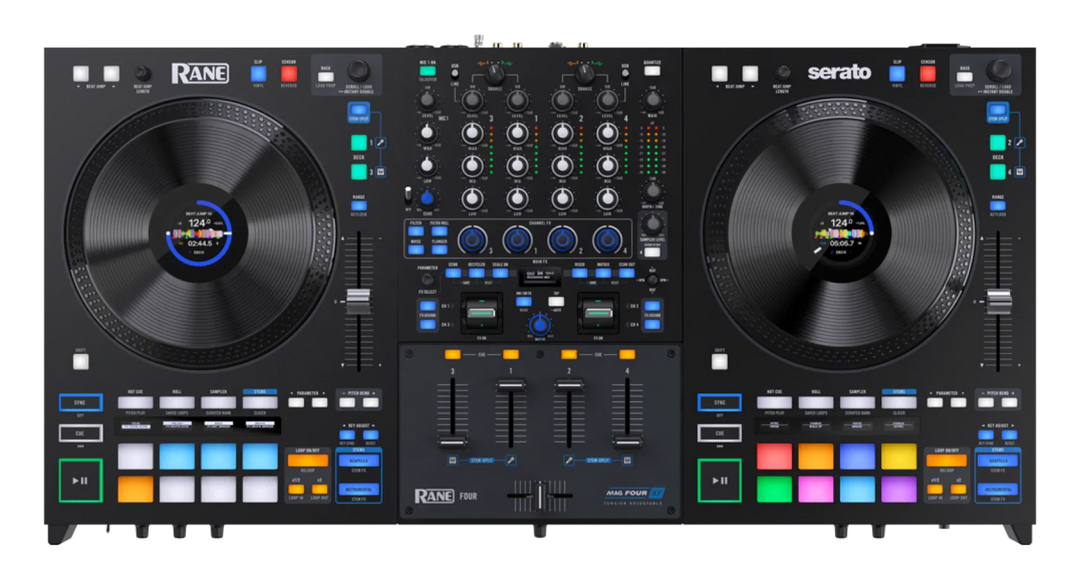

The RANE FOUR is an advanced 4 channel Stems DJ controller built for DJs who want direct, hands on control of modern Stems workflows. Dedicated Stems controls, performance pad modes, and RANE’s exclusive STEM SPLIT feature keep vocal and instrumental elements under your fingers instead of buried in software menus. A dynamic internal FX engine with 22 Main FX and 4 Channel FX, full size 8.5 inch capacitive jog wheels with center displays, and a 4 channel mixer section with pro connectivity make the FOUR a solid center for open format, club, and performance focused sets.

Dedicated stems control

The FOUR is built around direct Stems handling on the surface. A dedicated Stems pad mode, independent Acapella and Instrumental buttons, and RANE’s exclusive STEM SPLIT feature give you multiple ways to separate, balance, and route track elements. This lets you treat vocals, drums, melodies, and other parts as live sources instead of static tracks, without leaving your usual performance flow.

Pad displays that keep
your off the laptop



Eight OLED displays above the 16 Performance Pads provide visual feedback for every pad mode. You can see cue, loop, and sample names, roll and loop lengths, beat divisions, Pitch Play tuning, and which Stems elements and FX are active, directly above the pads. This makes it easier to stay locked on the controller and the crowd instead of watching the laptop screen.

Dynamic internal FX engine



A dynamic internal FX engine gives you 22 hardware Main FX and 4 knob controlled Channel FX, with access to Serato DJ software FX when you want to extend the palette. Classic tools like reverb, echo, filter, and flanger sit alongside modern additions like Scale Down, Recycler, and Riser, tuned for clear response on club systems. Channel FX such as Filter, Filter Roll, Noise, and Flanger sit on dedicated knobs for quick, hands on shaping of individual channels or stems.

4-Channel mixer with
flexible routing



The FOUR’s 4 channel mixer section offers full EQ control, intuitive FX assignment, and enhanced sampler routing so you can treat the sampler like a true additional source when needed. Quick access deck selection buttons let you control up to four software decks from the main surface, and two Line/Phono inputs on the rear panel support external turntables or decks when you want to bring in vinyl or other hardware.

MAG FOUR Crossfader



The mixer section features a tension adjustable MAG FOUR crossfader, designed for scratch and performance work. External tension adjustment lets you set the feel without opening the unit, while contour control and assignment switches keep your preferred curve and routing close to hand. Whether you are cutting stems, tracks, or external decks, the crossfader is built to handle fast, precise moves.

Full-size 8.5inch jog wheels with center displays

Two full size 8.5 inch high resolution capacitive static platters give you precise control over pitch bends, nudging, and jog based scratching. Each jog wheel features a full color center display that shows playhead position, BPM, pitch percentage and range, waveform overview with cue markers, key, time, loop size, deck selection, and more. This keeps critical information on the controller, tightening the link between your hands and what you hear.

Performance pads with OLED feedback



A dynamic internal FX engine gives you 29 main FX plus four knob controlled Channel FX for each side of the mixer. Core effects like echoes, reverbs, rolls, and flangers are tuned for clarity on professional sound systems. You can run the internal FX on their own or combine them with Serato DJ Pro FX when you need more layers, without sacrificing consistency or output level.

Serato DJ Pro and Serato Pitch 'n Time DJ included



The FOUR unlocks Serato DJ Pro when connected and comes with a license for Serato Pitch ’n Time DJ, so you can use advanced key-shifting and time-stretching for tight blends and key-matched routines. This pairing keeps the hardware and software tightly integrated, with the Serato Stems and FX features on the surface mapped directly to Serato’s latest tools.

Expand your performance, stay RANE grade

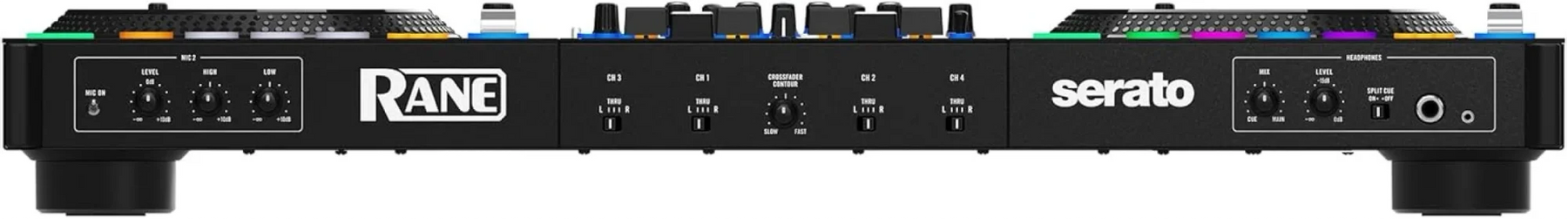

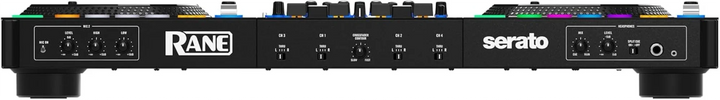

Two switchable Line/Phono inputs on the rear panel let you connect turntables or other external decks. The FOUR is DVS ready when used with the Serato DVS Expansion Pack, so you can control Serato decks with control vinyl if you choose. Dual USB ports support smooth DJ changeovers and back to back sets, and XLR and RCA main outputs, booth outputs, and dual mic inputs keep the controller ready for club, bar, or event installs. All of it sits inside a solid chassis built to RANE standards, with trusted sound quality and no compromise on connections.

Technical Specifications:

Digital Audio

Converters: Cirrus Logic, 24-bit PCM, 48 kHz

Digital Signal Processing: 32-bit, floating point, double precision

Dynamic Range (A-weighted, unity gain):


  • ADC: 113 dB

  • DAC: 113 dB

  • CD Input to Analog Output: 110 dB

  • CD Input to USB Output: 113 dB

  • USB Input to Analog Output: 113 dB

Inputs

Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):


  • Analog Gain: 25 dB

  • Maximum Input: 110 mV

  • Gain Trim: Off to +26 dB (unity at center)

  • Tone Control: 2-band

Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):


  • Line: Line

  • Maximum Input: 4 Vrms

  • Gain Trim: Off to +12 dB

  • Tone Control: 3-band, full-cut to +10 dB

  • THD+N (20 kHz BW @ 1 kHz: 0.004%)

  • Phono: RIAA

  • RIAA Curve: +/-0.25 dB

  • Gain (@ 1 kHz): 31.5 dB

  • Maximum Input (@ 1 kHz): 106 mV

  • Dynamic Range (A-weighted): 102 dB)

Outputs

Main Outputs (XLR):


  • Gain Trim: Off to 0 dB

  • Maximum Output: 8 Vrms

  • THD+N (20 kHz BW @ 1 kHz): 0.004%

  • Frequency Response: Flat - 20-20kHz

Main Outputs (RCA stereo pair):


  • Maximum Output: 4 Vrms

  • THD+N (20 kHz BW @ 1 kHz): 0.004%

  • Frequency Response: Flat - 20-20kHz

Booth Outputs (1/4”):


  • Gain Trim: Off to 0 dB

  • Maximum Output: 8 Vrms

  • THD+N (20 kHz BW @ 1 kHz): 0.004%

  • Frequency Response: Flat - 20-20kHz

Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):


  • Maximum Output: 4 Vrms Voltage: (no load)

  • Output Power: 50 mW (50 ohms)

  • Dynamic Range (A-weighted): 108 dB

Pads

(16) on/off multi-color back-lit pads (8 per deck, 9 modes each

Wheel Displays

(2) 320 x 240 Color LCD’s

Pad & FX Displays

(9) 128 x 32 Monochrome OLED’s

Faders

(1) MAG FOUR tension-adjustable crossfader with contour

(4) Standard channel faders

Connections

(2) XLR outputs (Main)

(2) 1/4” outputs (Booth)

(1) RCA stereo output pair (Main)

(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)

(2) RCA stereo input pairs (Deck 3-4)

(1) 1/4” (6.35 mm) TRS output (Headphones)

(1) 1/8” (3.5 mm) TRS output (Headphones)

(2) USB Type-B ports

(1) IEC power cable input

Power

Connection: IEC

Voltage: 100–240 V, 50/60 Hz

Consumption: 20 W

Dimensions (width x depth x height):

30.84” x 15.84” x 4.08”

783.34 x 402.34 x 103.63 mm
