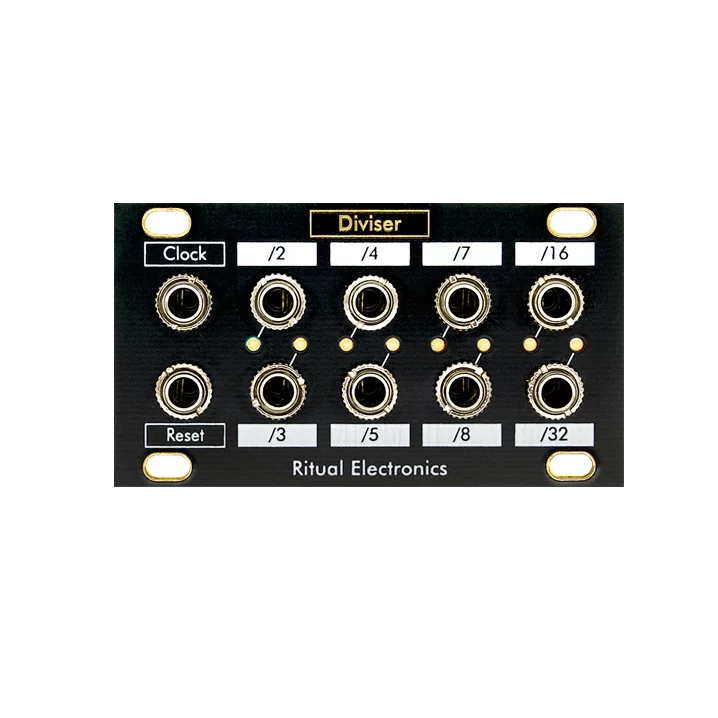

Diviser is an analog clock divider with one output per divison. It has odd & even division with 50% duty cycle.

Diviser is a 1U clock divider with odd & even outputs. It divides by 2, 3, 4, 5, 7, 8, 16 & 32 simultaneously

Diviser is based on CMOS chips it can run at audio speed to create subharmonics from an oscillator.

The reset input resets all the outputs to a high state.

Comparators are built in both the Clock and Rest inputs with threshold set at 2.5V. It means you can use any type of signals in these inputs.

Specs &
Downloads

Technical characteristics

  • Built in comparators on Clock & Reset inputs
  • No microcontroller
  • Even & Odd divisions (/2-3-4-5-7-8-16-32)
  • All outputs high when reset
Width 14HP Intellijel format frontpanel
Depth 35mm
Power 25mA @ +12V
3mA @ -12V
0mA @ +5V
